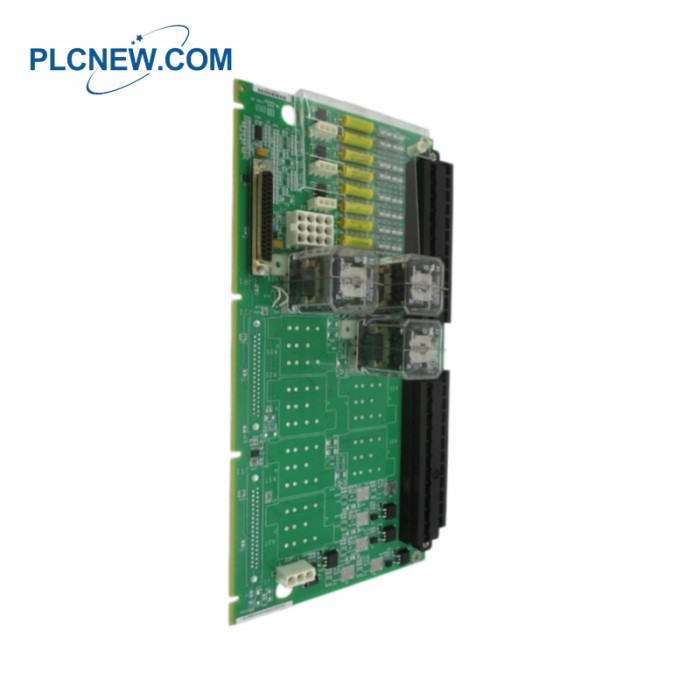

GE IS200TRPGH2B Primary Trip Terminal Board

GE IS200TRPGH2B Primary Trip Terminal Board

Details of the module

Part Number:IS200TRPGH2B
Manufacturer: General Electric
Series: Mark Vle
Trip Solenoids: 3
Solenoid Rate Voltage/Current: 125 V dc
Flame Detectors: 8
Number of output relay channels: 12
Product Type: Gas Turbine Primary Trip Terminal Board
Maximum Load Current: 24 V dc
Technology: Surface Mount
Size: 17.8 cm wide x 33.02 cm high
Temperature: -30 to 65°C
Weight: 2.00 lbs

IS200TRPGH2B is a Gas Turbine Primary Tip Terminal Board manufactured and designed by General Electic as partof

the Mark Ve Series used in GE Distibuted urbineonto systems. The TRPG in the Mark Ve system is managed by the

prmary Lurbine protection controller VTUR or PTUR) and includes nine magnetic relys organizedinto three voting

circuits interfacing with three trip solenoids (ETDs. It collaborates wth the TREG to establish primary and

emergeny connections to the ETDsControlled by PTuR packs on the TURHIC board. the TRPG supports both simplex

and TMR configurations, The TURHIC board features D- Type conectors that ink tothe TRPG and acommodate VO

packs. Additionly. the TRPG integrate inputs from eight flame detectors critical for gas urtine operations, and

incorporates twodistinct types of boards within the system.

Frequently asked questions：

Q: What is the main function of the GE IS200TRPGH2B board?
A: The board serves as a primary trip interface, managing turbine shutdown signals and connecting trip

solenoids, flame detectors, and relay outputs to the control system.
Q: How many trip solenoids can the IS200TRPGH2B support?
A: It supports three trip solenoids, each rated for 125 V DC operation.
Q: How many flame detectors can be connected to this board?
A: The IS200TRPGH2B board supports up to eight flame detector inputs for combustion monitoring.
Q: How many relay outputs are available on the IS200TRPGH2B?
A: The IS200TRPGH2B module provides twelve output relay channels.

Key Functions
Primary Trip Interface: The board works with an I/O controller to regulate the Emergency Trip Devices (ETDs)

that can cut fuel or steam by activating hydraulics.
Solenoid Control: It utilizes magnetic relays and Metal Oxide Varistors (MOVs) for current suppression and surge

protection when operating the trip solenoids.
Flame Monitoring: In gas turbine setups, it monitors flame levels to ensure safe combustion and can trigger trips if

flame is lost or carbon accumulation hinders detection.
