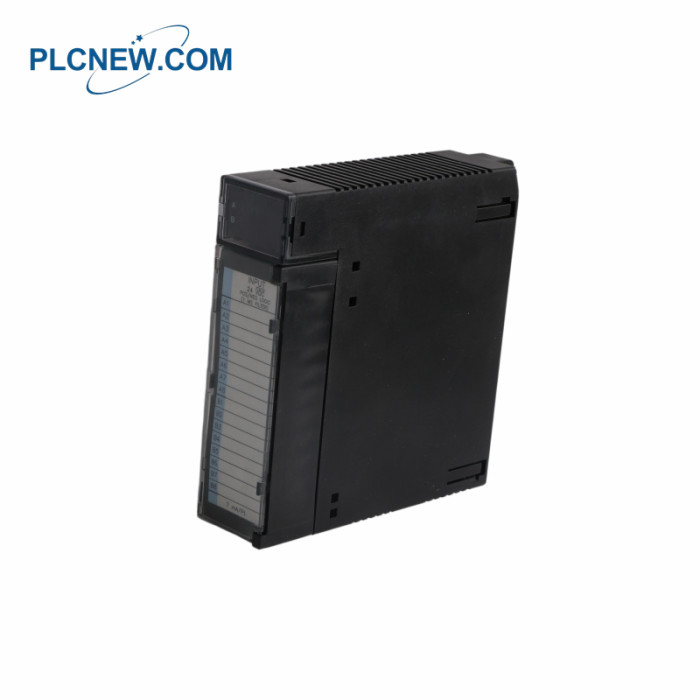

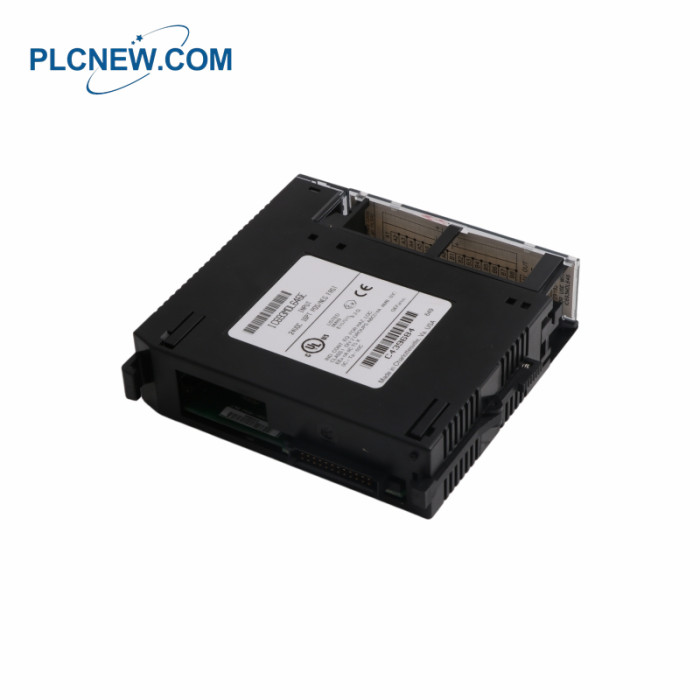

GE IC693MDL646 Discrete Input module
Details of the module
Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30
Part Number: IC693MDL646
Weight: 0.75 lbs (0.34 kg)
Product Description: Discrete input module
Rated Voltage: 24 Volts DC
Input Voltage Range: 0 to +30 Volts DC
Inputs per Module: 16
Input Signal Range: 0–30 VDC
Nominal Input Voltage: 24 VDC
Input Current: 7 mA per channel
Current Draw: 80 mA @ 5VDC; 125 mA @ 24 VDC
On-State Voltage: 11.5–30 Volts DC
Off-State Voltage: 0–5 Volts DC
The IC693MDL646 is a component module of the Series 90-30 PLC platform that is manufactured by formerly by GE
Fanuc, now by Emerson . This module is designed to accept 24 VDC input signals and supports Positive and Negative
wiring configuration. The IC693MDL646 has a single group of Sixteen (16) input channels. It comes with a common
power input terminal with 1 ms On and Off typical response time. This module is designed to accommodate a wide
variety of Binary or On/Off field devices such as push button devices, switches, proximity switches and auxiliary contacts.
This module accepts an input voltage range of 0-30 VDC with nominal value of 24 VDC and input current of 7 mA at
rated voltage.
Frequently asked questions：
1.What are the wiring configurations supported by the IC693MDL646?
The IC693MDL646 support Positive and Negative wiring configuration.
2.Does the IC693MDL646 support installation in remote I/O?
Yes. It supports installation to a Remote I/O or I/O expansion baseplate.
3.Does the IC693MDL646 support embedded and modular CPUs?
Yes. The IC693MDL646 supports installation with modular and embedded CPU types.
