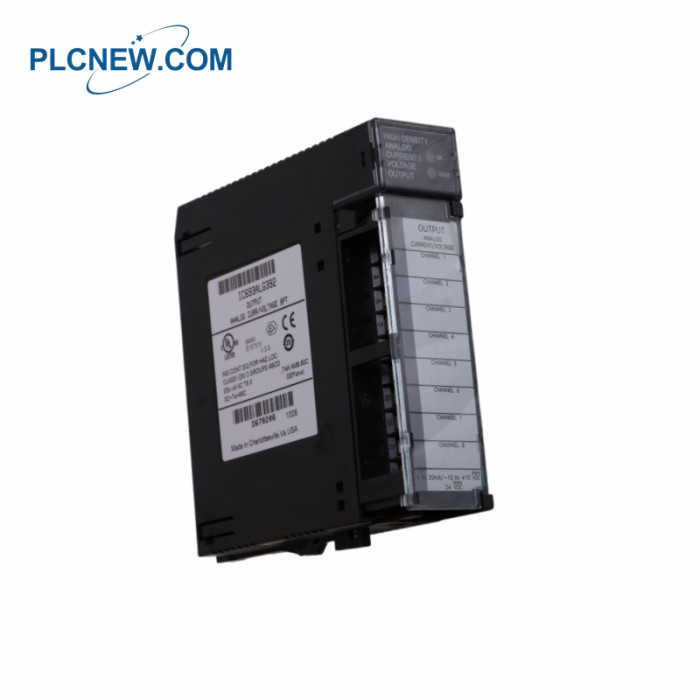

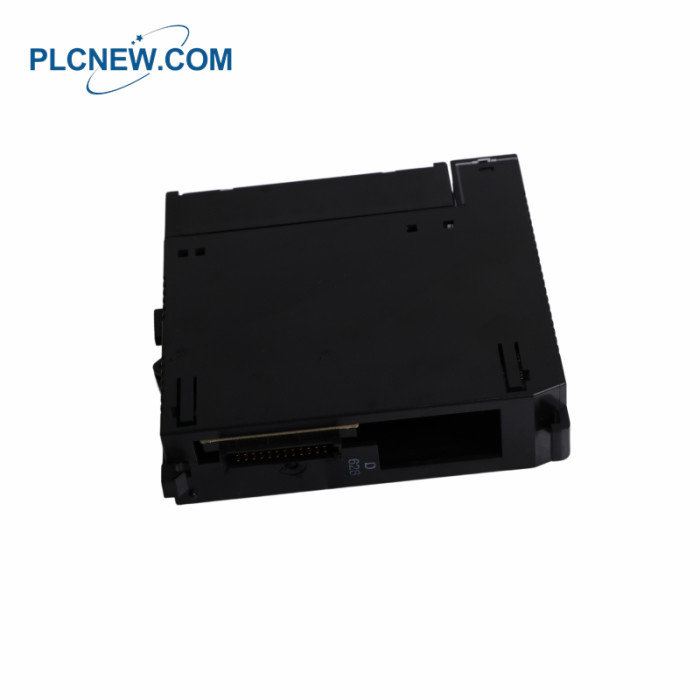

GE IC693ALG392 Analog Current/Voltage Output Module

GE IC693ALG392 Analog Current/Voltage Output Module

Details of the module

Manufacturer: GE Fanuc Emerson
Product Line: Series 90-30
Part Number: IC693ALG392
Weight: 0.81 lbs (0.37 kg)
Resolution at -10 to 10 V: 0.312 mV
Product Lifecycle Status: Discontinued/Obsolete
Product Description: Analog Current/Voltage Output
No of Channels: 8
Current Range: 4 to 20 mA, 0 to 20 mA
Voltage Range: 0 to 10 V, -10 to 10 V
External Supply Voltage Range: 20 to 30 VDC
Internal Supply Voltage: 5 VDC from PLC backplane
Update Rate: 8 ms all channels
Resolution at 4-20 mA: 0.5 microamps
Resolution at 0-20 mA: 0.625 microamps
Resolution at 0-10 V: 0.312 mV

The IC693ALG392 is a Series 90-30 module. This module is an analog output module that is typically used for

implementing modulating control of instruments or devices such as Variable Frequency Drives (VFD), Control

Valves, Positioners, converters and other similar modulating devices. It may also be used to re-transmit analog

data to receiving elements such as recorders, data loggers and other compatible receiving devices.
The IC693ALG392 features Eight (8) output channels with configurable resolution of 15 or 16 bits, depending on the

analog output range selected. It is capable of providing voltage signals such as 0 to +10 volts (unipolar) / -10 to +10

volts (bipolar) voltage and 0 to 20 milliamps / 4 to 20 milliamps output signals. In able to generate the output analog

signals, this module requires an isolated 24VDC power, directly connected to the designated terminal block of the module.

Frequently asked questions：
1.How many analog output channels does the IC693ALG392 have?
The IC693ALG392 has Eight (8) analog output channels.
2.What are output signals provided by this module?
The IC693ALG392 provides 0 to +10 volts (unipolar) / -10 to +10 volts (bipolar) voltage outputs and 0 to 20

milliamps / 4 to 20 milliamps output signals.
3.What is the resolution of the IC693ALG392?
The IC693ALG392 has output resolutions of 15 or 16 bits, depending on the signal range selected.
