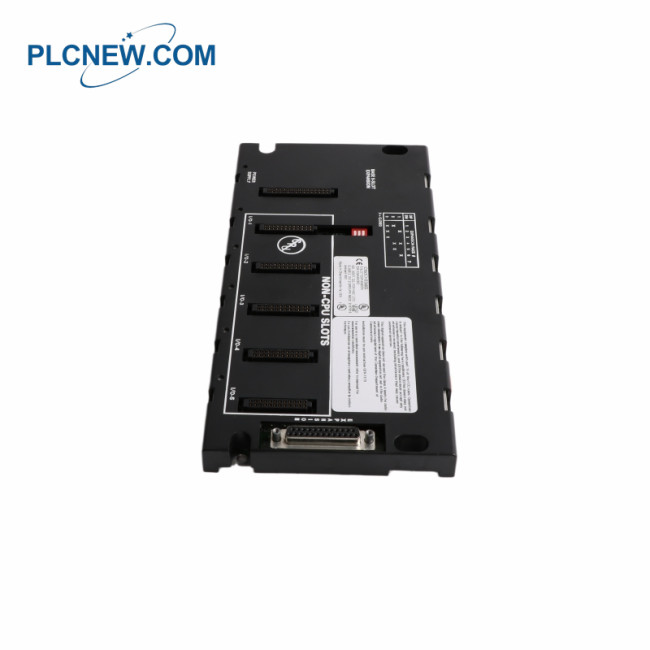

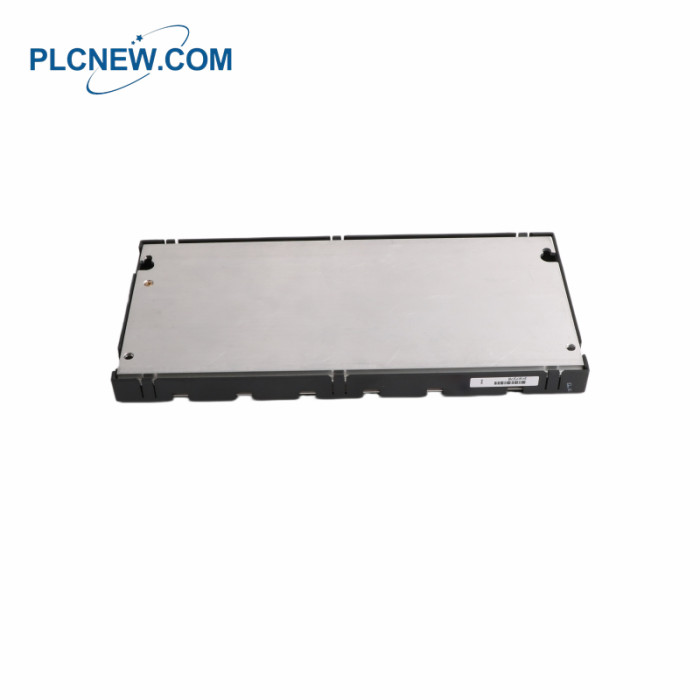

GE IC693CHS398 5-Slot Expansion Baseplate

GE IC693CHS398 5-Slot Expansion Baseplate

Details of the module

Manufacturer: GE Fanuc Emerson
Product Type: 5-Slot Expansion Baseplate
Product Line: Series 90-30
Part Number: IC693CHS398
Weight: 1.25 lbs (0.57 kg)
Product Description: 5-slot Expansion Baseplate
Number of Slots: 5
Current Load: 170 mA
Bus Voltage: +5 VDC
Internal Power Consumption: 170 mA at 5 VDC
Expansion Slot: 25-pin D-shell female connector

The IC693CHS398 is an Expansion baseplate from the series 90-30 PLC series, formerly by GE Fanuc now under . This

module is compatible with pairing with a CPU baseplate, connecting via the expansion port of the CPU baseplate. With

the utilization of IC693CHS398, a higher number of I/O modules can be controlled by the Central Processing Unit

(CPU) module. Depending on the CPU type being used, the number of expansion baseplates allowed, such as

the IC693CHS398, per system varies specifically, up to 4 expansion baseplates at a time with any of the CPU 331,

340, and 341 and the up to 7 expansion baseplates at a time with CPU 350 and higher. The IC693CHS398 comes with

Five (5) I/O slots that are also compatible with the installation of option modules. These slots are unique in size which

prevents improper installation of modules. This baseplate requires a dedicated power supply module to operate.

Frequently asked questions：

1.How many I/O slots does the IC693CHS398 have?
The IC693CHS398 has Five (5) I/O slots.
2.What is the load current of the IC693CHS398?
The IC693CHS398 has load current of 170 mA @ 5VDC.
3.What are compatible CPUs that can utilize the IC693CHS398 baseplate?
Compatible CPUs are CPU 331, 340, 341, 350 or higher.
4.How many I/O slots does the IC693CHS398 have?
The IC693CHS398 is a 5 I/O slots.
5.What is the appropriate total cable distance when interconnecting expansion baseplates?
Maximum allowable total cable distance is 50 feet or 15 meters.

Product Applications
Power plant
The oil and gas industry
Water and wastewater treatment

Expansion Capabilities and Constraints
CPU Compatibility: The maximum number of expansion units depends on the system's CPU. CPUs 331, 340, and 341

support up to 4 baseplates, while CPU 350 and higher can support up to 7.
Cable Limits: Total interconnecting cable length between the CPU baseplate and all expansion baseplates must not

exceed 50 feet (15 meters).
Module Restrictions: This expansion baseplate does not support specific option modules, including PCM, ADC, BEM330,

and CMM311; these must be installed in a CPU baseplate instead.
Power Supply: A dedicated power supply module must be installed in the leftmost (un-numbered) slot of each

expansion baseplate to provide power to the local modules.
