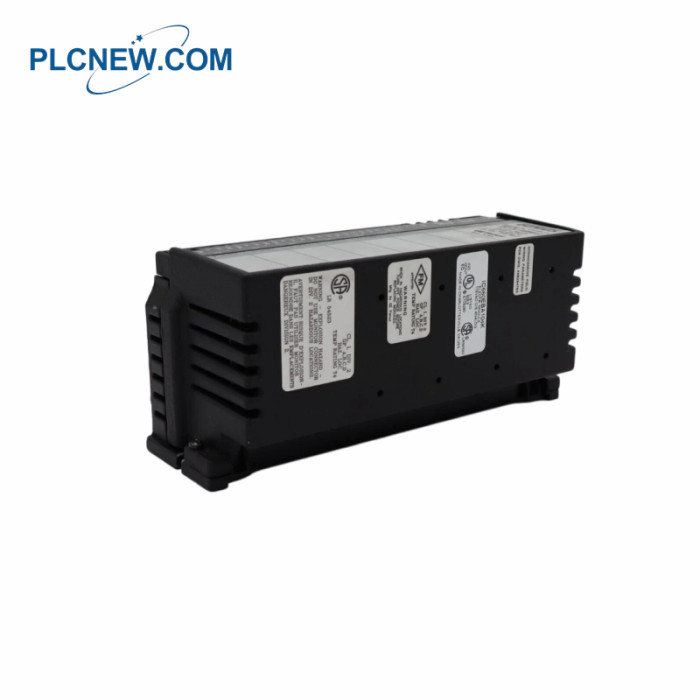

GE IC660BBA104 Analog input/output block
Specifications
|
Manufacturer |
GE |
|
Part Number |
IC660BBA104 |
|
Weight |
3.13 lbs (1.42 kg) |
|
Series |
Rx7i PACsystem |
|
Input Signal |
4-20 mA |
|
Input Signal Resolution |
1 µA |
|
Input Conversion Time |
16.6 ms to 400 ms (user selectable) |
|
Output Resolution |
6 µA |
|
Nominal Block Power |
115 VAC / 125 VDC |
|
Block Power Input Range |
93-132 VAC / 105-145 VDC |
|
Dimensions (H×W×D) |
8.83 × 3.56 × 4.42 inches |
|
Input Accuracy |
0.1% of full-scale reading |
|
Number of Outputs |
2 |
|
Output Accuracy |
0.15% of full-scale reading |
|
Heat Dissipation |
12 Watts |
|
Status LEDs |
Unit OK, I/O Enabled |
|
Block-to-Block Isolation |
1500 Volts |
|
Group-to-Group Isolation |
1500 V RMS |
The IC660BBA104 is a is a Current-source combination I/O block featuring Six (6) input circuits that is comprised
of Four (4) analog input channels capable of receiving 4-20 mA signals and Two (2) output channels that deliver
4-20 mA signals. Additionally, this module has group to group isolation, block to block isolation and individual channel
isolation of the input channels, rated 1500 V.
The IC660BBA104 input channels specifically feature an accuracy of 0.1% of full scale reading at 25 Degree Celsius,
resolution of 1 µA, user configurable conversion time of 16.6ms to 400ms and overrange capacity of 0 mA to 25 mA.
Each of the input channels are designed with individual diagnostics such as Under / Overrange, High /Low Alarm, and
Open Wire detection.
The IC660BBA104 output channels have an accuracy of 0.15% of full scale reading with resolution of 6 µA. Each channel
has a typical update frequency of 6ms to 8ms with overrange capacity of 0-24 mA. Similar to the input channels, each
of the output channels are capable of internal diagnostics such as Underrange, Overrange, and Feedback error.
Product Applications
Petrochemical industry: Parameter monitoring in process control systems.
Manufacturing and production lines: Control of factory production processes, condition monitoring of mechanical
equipment.
Electricity and energy: Real-time data collection and monitoring of power plants and substations.
Warehouses and computer rooms: Environmental and process control.
Heavy industrial equipment: Operation monitoring of mechanical equipment such as oil pumps.
