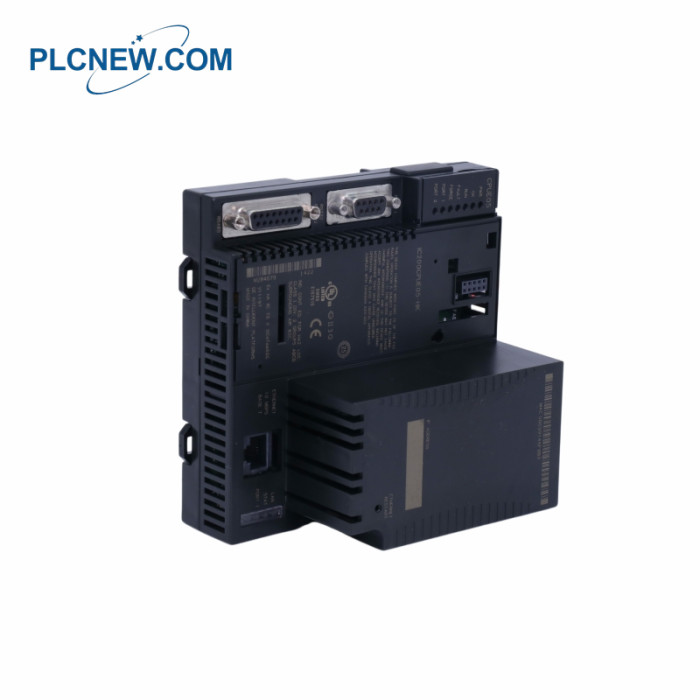

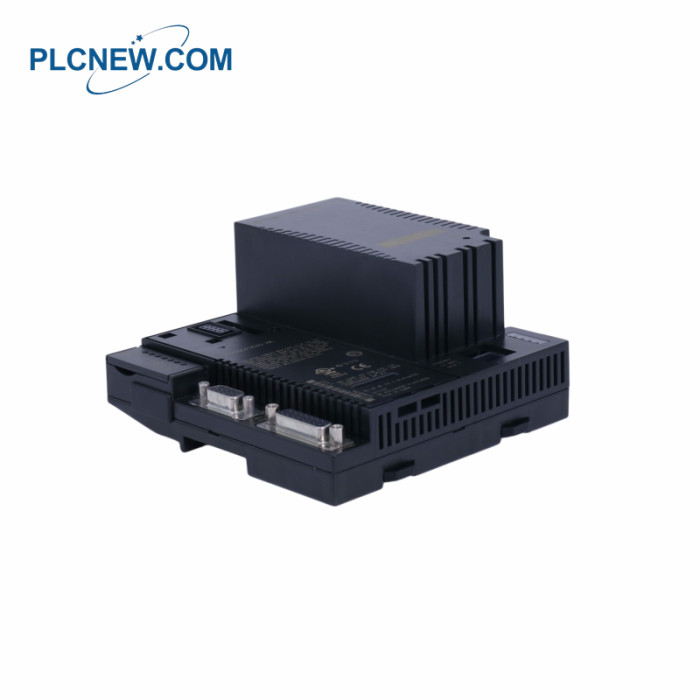

GE IC200CPUE05 CPU Module
Specifications
|
Manufacturer |
GE Fanuc Emerson |
|
Part Number |
IC200CPUE05 |
|
Weight |
0.63 lbs (0.28 kg) |
|
Max Supported Modules |
64 Modules |
|
Max I/O Points Capacity |
2048 I/O Points |
|
Serial Ports Quantity |
2 Serial Ports |
|
Serial Communication Interface |
RS-232, RS-485 |
|
Configurable Memory Size |
128 KB |
|
Ethernet Transmission Speed |
10 Mbps (full-duplex / half-duplex) |
The IC200CPUE05 is a CPU module with Ethernet interface capabilities from GE Fanuc Emerson, part of their Versamax
series. It has been engineered to support a substantial arrangement of devices, with the ability to connect up to 64
modules and manage 2048 I/O points. Two serial ports provide additional connectivity options, allowing for both RS-232
and RS-485 serial communication, making it versatile for different setups.
In terms of memory capacity, this module boasts 128 KB, which can be configured as needed. It supports an
auto-configuration feature, streamlining the setup process. Programs can be stored in non-volatile flash memory, ensuring
that critical data is preserved even during power interruptions. Furthermore, a battery backup system maintains
necessary information, including programmed data and the time clock.
The IC200CPUE05 also includes a run/stop switch, providing users with direct control. Floating point data functions
are supported, enhancing the processing capabilities for various applications. This unit communicates over an
Ethernet network at rates of 10 Mbps, capable of operating in either full-duplex or half-duplex modes.
Product Applications
Water treatment and environmental engineering: Utilizes its high reliability to control pump stations, valves, and
filtration systems.
Food and beverage processing: Meets hygiene and corrosion prevention requirements, widely integrated into filling
and packaging lines.
Packaging and material handling: Supports operations and high-speed I/O control, ensuring accurate material sorting
and packaging.
Chemical and building materials: Maintains data acquisition and equipment monitoring in harsh industrial environments
(such as high dust levels and temperature fluctuations).
