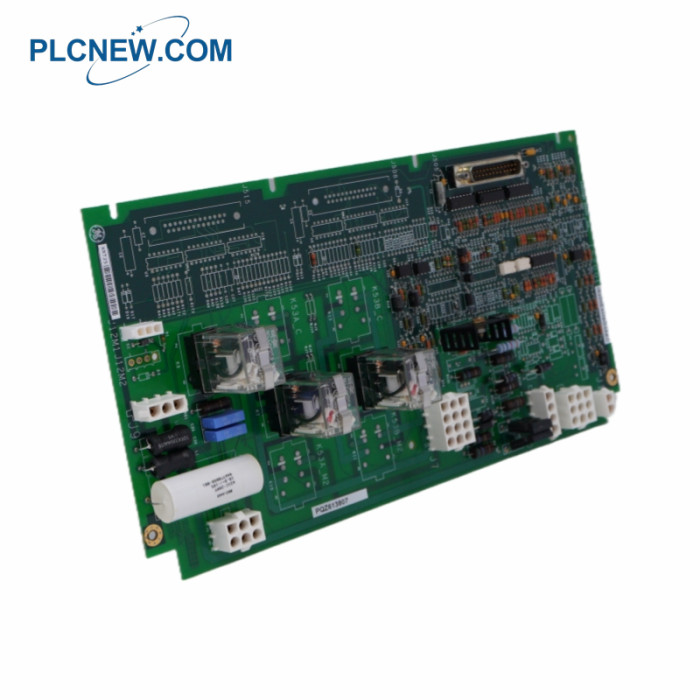

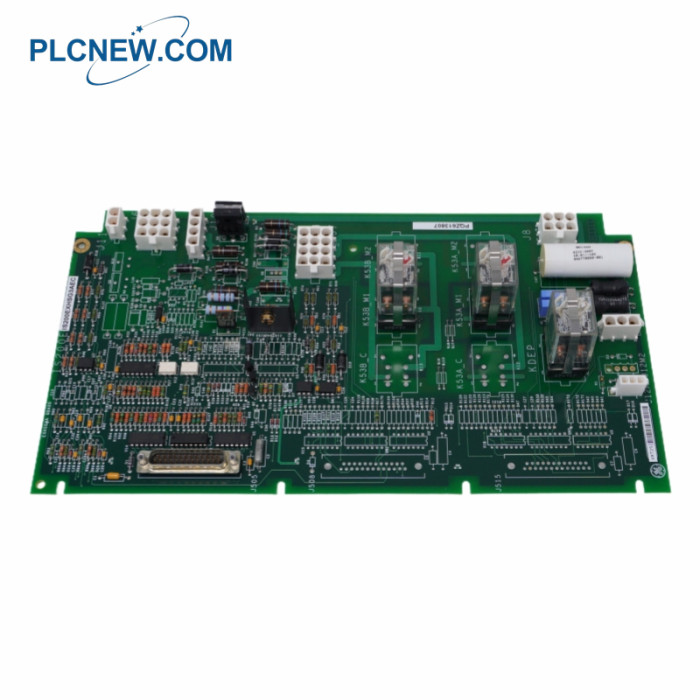

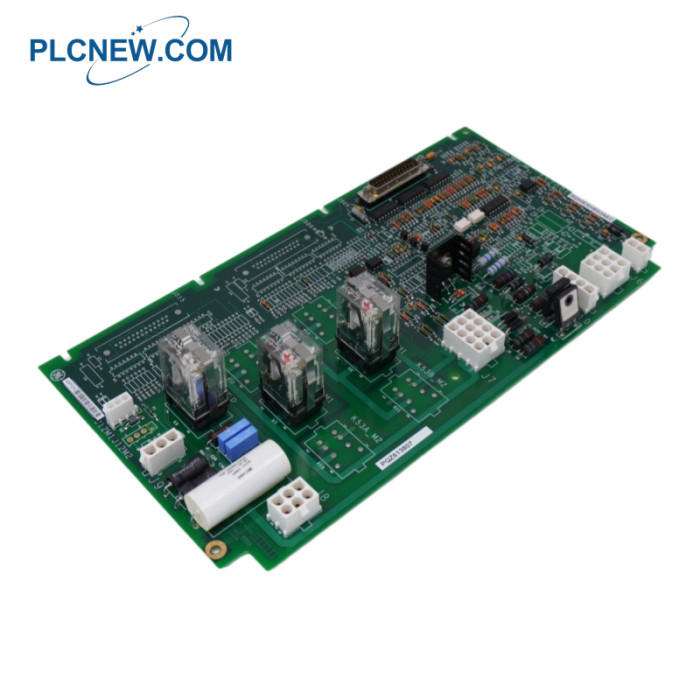

General Electric IS200EXHSG3AEC/IS200EXHSG3A Relay Driver Board
Product Parameters
IS200EXHSG3AEC/IS200EXHSG3A is a Exciter HS Relay Driver Board developed by GE. It is part of the GE Speedtronic EX2100 gas turbine control system. The Exciter High-Speed Relay Driver (EXHS) board is an integral component of the EX2100 Excitation Control system, playing a crucial role in providing drivers for various components essential for excitation control in industrial applications.
|
Connectors: Three 25-pin connectors (JS05, JS08, JS15) for communication with EMIO boards |
|
Power Connectors: Plugs J12M1 and J12M2 for 70 V DC auxiliary contact wetting from M1/M2 power supplies |
|
Relay Coil Power: Nominal 125 V DC (Range: 100-140 V DC) via connector J9 |
|
Relay Contact Power: Nominal 24 V DC sourced from exciter cabinet |
|
Relay Break Capacity (Resistive Load): 2 A at 28 V DC |
|
Relay Break Capacity (Inductive Load): 1 A at 28 V DC for 0.007 seconds (L/R) |
|
Suppression: External suppression required for relay coil; no on-board suppression |
|
|
