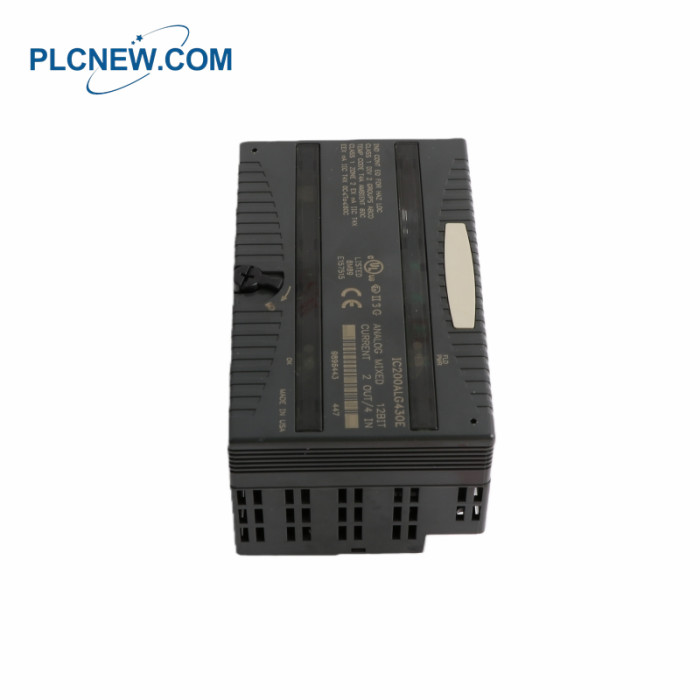

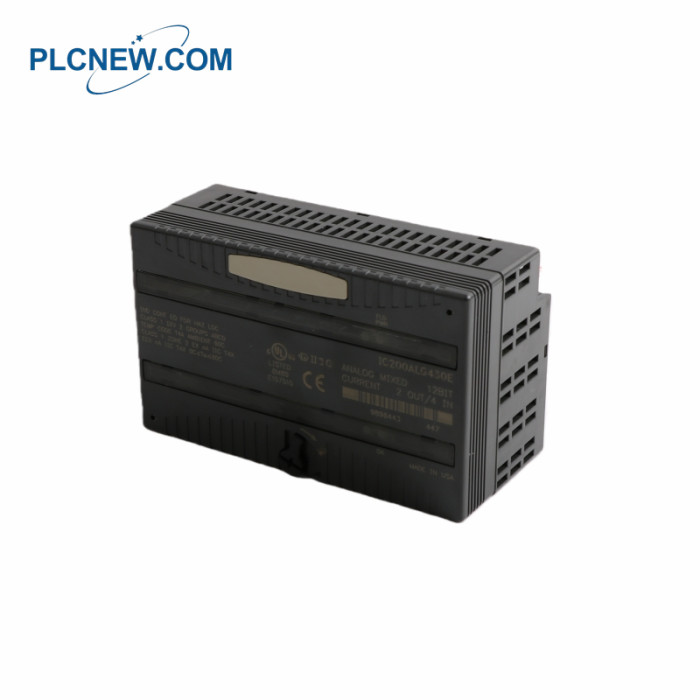

GE IC200ALG430 Analog combination module

GE IC200ALG430 Analog combination module

Product Details

Manufacturer: GE Fanuc
Product Line: VersaMax
Part Number: IC200ALG430
Weight: 0.38 lbs (0.17 kg)
Product Type: Analog Mixed Module
Module Description: Analog combination module
Number of Analog Input Channels: 4
Number of Analog Output Channels: 2
Wiring Configuration: Input: Differential, Output: Single Ended
Current Range: 4–20 mA
Input Signal, Nominal: 4–20 mA
Output Signal, Nominal: 4–20 mA
Channel-to-Channel Crosstalk Rejection: 30 dB
Update Rate: 0.4 milliseconds
Input Filter Response Time: 5 milliseconds
Resolution: 12 bits
Module Resolution: 12 bits
Voltage: 250 VAC

The IC200ALG430 is a VersaMax combination analog module. This module is equipped with Four (4) differential

inputs, arranged in a single group that accepts 4-20 mA signals with Analog to Digital Converter (ADC) on each

input channel with resolution of 12-bits. Similarly, it also has Two (2) single-ended outputs in one group that generates

4-20 mA output signal with similar resolution of 12 bits. This module is ideally used in applications with limited panel

space or maximized expansion channels. The IC200ALG430 analog input circuits operate without an external power

supply however, the output circuits should be provided with external 24 VDC supply voltage to generate the output

current signal. This module is provided with a FLD PWR LED for reporting of the presence of field power and on OK

LED for reporting active supply of power from the backplane. The input channel characteristics includes input impledance

of 200 Ohms, maximum, update rate of 0.4 ms, filter response of 5.0 ms and accuracy of +/-0.3% typ. of full scale,

+/-0.5% max. of full scale at 25 Degress Celsius and +/-1% maximum of full scale at 0-60 Degree Celsius. Conversely,

the output channels have 0.3 ms update rate and similar accuracy as to the input channels. The output channels though

have configurable hold state or provide a selectable constant value. For input hold state features, if the module is used

with CPU or NIU version 2.x or later, the input defaults to 0 in reaction to CPU stoppage or module error however, with

higher CPU or NIU version such as version 1.5 or later, the input default matches the jumper defined output default.
