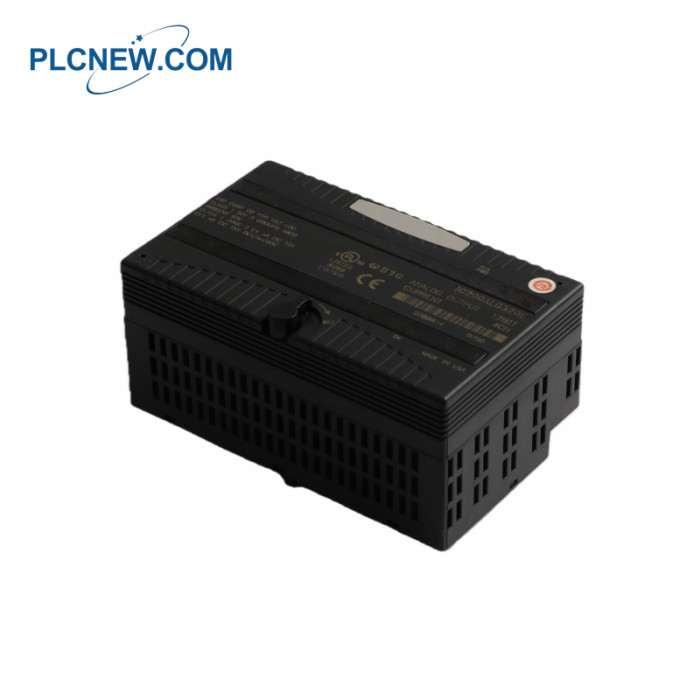

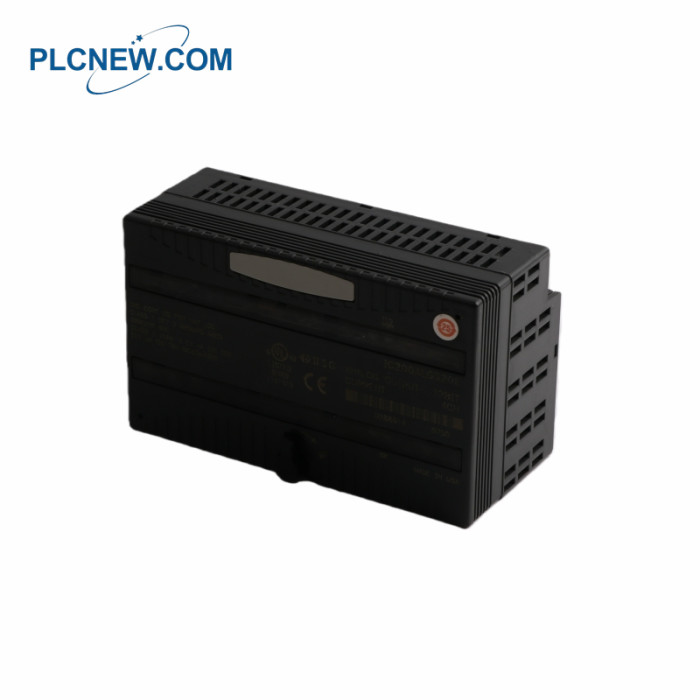

GE IC200ALG320 Analog Output Module

GE IC200ALG320 Analog Output Module

Product Details

Manufacturer: GE Fanuc Emerson
Product Line: VersaMax
Part Number: IC200ALG320
Weight: 0.63 lbs (0.28 kg)
Type: Output Module
Outputs: 4 Analog Current-Sourcing Outputs
Product Description: 4-Point Analog Current Output Module
Voltage: 18 to 30 VDC
Wiring Configuration: Single-ended
Current Consumption: 240 mA max.
Output Signal (Nominal): 4–20 mA
Output Current: 4 to 20 mA
Analog Resolution: 12 bits
Accuracy (Full Scale): 0.3% typical, ±1% maximum
External Power Supply: 18–30 VDC; 9.6 to 15 VDC
Resolution: 8 counts
Nominal Supply Voltage: 12 / 24 VDC
Update Rate: 0.3 ms max.
Current Draw: 50 mA max.

The IC200ALG320 is an analog output module that belongs to the VersaMax family of distributed I/O modules

formerly produced by GE Intelligent Platforms, now under Emerson . This module is typically used as part of the

distributed or remote I/O network, commonly implemented medium to large control systems, eliminating long

signal runs and contributes to building a robust and scalable control system. The IC200ALG320 comes with Four

(4) single-ended analog output channels that generate an output current signal of 4-20 mA with resolution of 4 µA.

It can be used particularly in automatic closed closed loop control systems as well as manually controlled or open

loop control system for analog signal following devices such as modulating valves, dampers, louvers, positioners,

Variable Frequency Drives (VFD) and similarly operating devices. It may also be used for signal re-transmission

purposes such as providing an output signal that is representative of an internally calculated variable within a

Programmable Logic Controller (PLC), for termination to a signal splitter or signal isolators, panel meters for local

readout, data loggers for historization, single loop controllers or other PLCs to implement advanced and complex

architecture of cascaded controllers. The IC200ALG320 is installed with Two (2) status LED indicators such as a FLD

PWR LED to indicate presence of field power and OK LED for depicting continuous supply of backplane power. This

module also features detection of user side power and configurable output default in reaction to CPU stoppage or

module fault such as Hold Last State or output downscaled to 4 mA.
