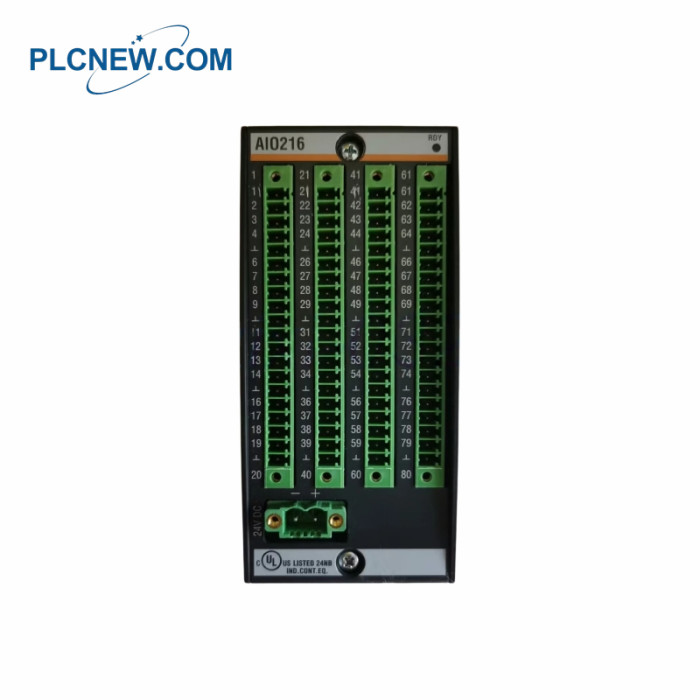

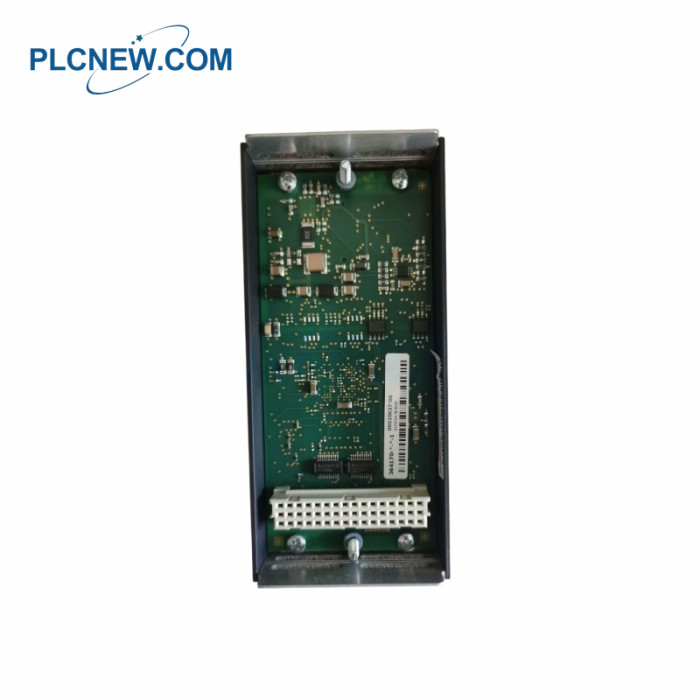

BACHMANN AIO216 Analog Input/Output Module
Specifications
|
Part Number |
AIO216 |
|
Channel Quantity |
16 channels |
|
Galvanic Isolation Voltage |
500 V |
|
Power Supply Range |
18 V ~ 34 VDC |
|
Internal Current Consumption |
80 mA |
|
External Current Consumption (24 V, no load) |
200 mA |
|
Voltage Input Ranges |
±10 V, ±1 V, ±100 mV, ±10 mV |
|
Current Input Ranges |
±20 mA, 0–20 mA, 4–20 mA |
|
Overvoltage Protection |
±24 V |
|
Supported Temperature Sensors |
Pt100 / Pt1000, 2-wire / 3-wire / 4-wire connection |
|
Temperature Measurement Range |
-100°C ~ +800°C |
|
Basic Accuracy |
±0.15 % |
|
Resolution |
14 bit |
|
Max Burden Resistance |
Up to 600 Ω |
|
Accuracy at 25°C |
Voltage: ±0.05%; Current: ±0.2% FS |
|
Operating Temperature |
-30°C ~ +60°C |
The AIO208 and AIO216 modules enable the measuring or output of all standard analog signals. The AIO208 offers 8
channels and the AIO216 16 channels compactly in a single module. The standard signal types for current (0 to 20 mA
and 4 to 20 mA) and voltage ranges (±10 V to ±10 mV) allow the connection of a wide range of sensors and actuators.
A minimum 14 bit resolution makes it possible to also measure signals that do not fully utilize the measuring range (e.g.
0 to 5 V) with a sufficiently high resolution.
Product Applications
Wind Power Generation: Widely used in wind turbine pitch and yaw control systems. It accurately acquires key
continuous signals such as wind speed, wind direction, generator temperature, and vibration, and outputs pitch
control commands to achieve intelligent regulation and safety protection.
Rail Transportation: Participates in core onboard control systems, including traction inverter control, braking system
monitoring, and onboard energy management.
Plastics and Packaging Machinery: Provides high-precision closed-loop temperature control (e.g., injection molding
machine heating belt control), pressure regulation, and tension control.
Process Industries and Test Benches: Plays a crucial role in signal acquisition and control in water treatment plants,
energy management systems (EMS), smart manufacturing production lines, and various industrial test benches.
