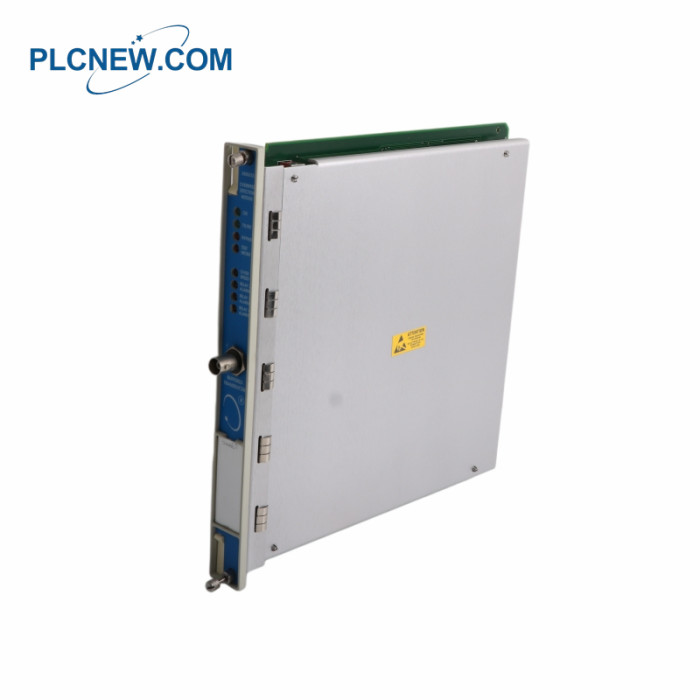

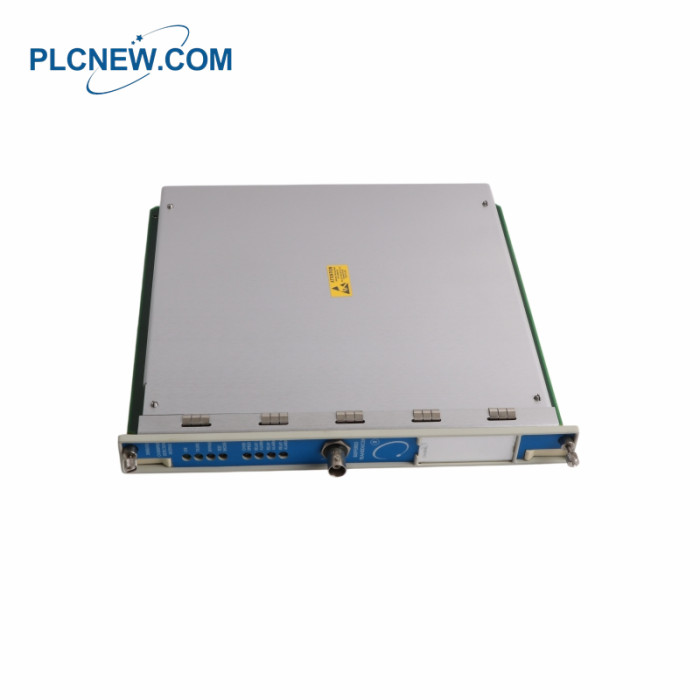

Bently Nevada 3500/53 133388-01Electronic Overspeed Detection System

Bently Nevada 3500/53 133388-01Electronic Overspeed Detection System

Details of the module

Part Number: 133388-01
Manufacturer: Bently Nevada
Series: 3500/53
Product Type: Electronic Overspeed Detection System
Input Signals: +10.0 V
Sensitivity: 100 mV/mil (4 V/mm)
Power Consumption: 7.7 Watts
Output Impedance: 550 Ohm
Input Impedance: 20 k Ohm
Transducer Power Supply:-24 Vdc
Voltage Compliance (current output): 0 to +12 Vdc
Max switched power: dc: 120 W
Frequency Response:+25 °C
Operating Temperature: -30 °C to +65 °C
Power Supply Voltage: 125 V dc

135313 01 is an Electronic Overspeed Detection System manufactured and designed by Bently Nevada as part of the

3500/3 Series used to control the machinerycondition monitoring system The sstem ypicaly consists of speed sensors, a

contol unit and output relys Sped sensors, such as magnetic pickups or proximnityprobes, are mounted near the

rolating shaftor gear teth to continuouslymeasure sped These sensors generate electical pulses proportional to the

rotational sped ofthe machine The pulses are then transmitted to the controlunit which processes the signals and

compares them to predefined overspeed thresholds Modern overspeeddetection systems often incorporate Triple

Modular Redundany (TIMR, where three independent Channels measure and veriy speed values to ensure high

reliablity andminimize false trips.

Frequently asked questions：

1.What is the Bently Nevada 3500/53 Overspeed Detection System?
The Bently Nevada 3500/53 Overspeed Detection System is a highly reliable and advanced monitoring solution

designed to detect and prevent excessive rotational speeds in critical rotating machinery. It is part of the Bently

Nevada 350o Series Machinery Protection System and is primarily used in turbines, compressors, and generators
2.Why is Triple Modular Redundancy (TMR) important in overspeed detection?
TMR enhances system reliability by using three independent speed channels, ensuring that a single sensor failure

does not trigger false trips or system malfunctions. The system makes a decision based on a 2-out-of-3 voting

mechanism, allowing operations to continue even if one sensor fails.
3.What types of speed sensors are compatible with the 3500/53?
The system supports various sensor types, including proximity probes, magnetic pickups, and Hall-effect sensors.

This flexibility allows it to be integrated with different machinery setups, ensuring accurate speed measurements

across a range of industrial applications.
