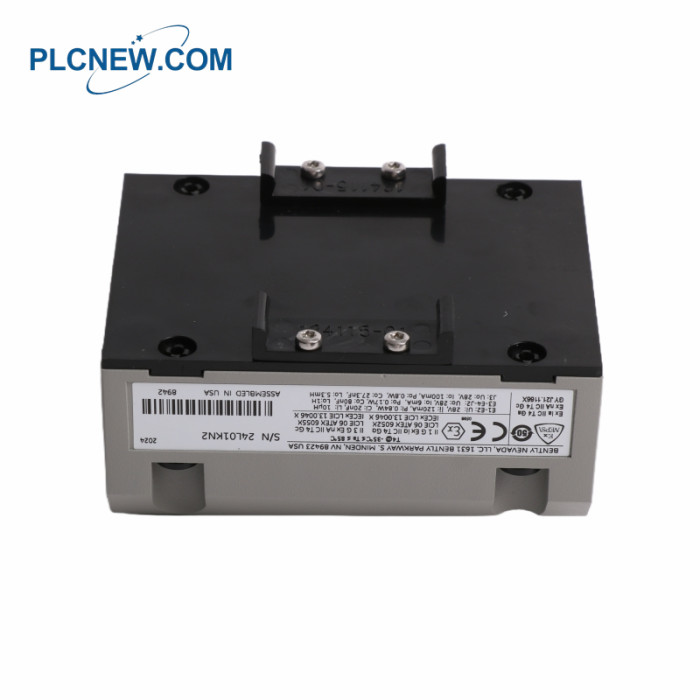

Product Name: Bently Nevada 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter
Item NO.: 3477008
Weight: 1 kg = 2.2046 lb = 35.2740 oz
Category: Bently Nevada
Creation Time: 2025-12-05

Bently Nevada 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter
The 990 Vibration Transmitter is intended primarily for theoriginal equipment manufacturers
(OEMs) of centrifugal aircompressors or small pumps

Bently Nevada 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter

Product Details

Power Supply: +12 VDC to +35 VDC (nominal 28 VDC)
Current Limiting: 23 mA typical
Maximum Loop Resistance: 1,000 Ω (including cable at 35 VDC)
Prox Output Linear Range: 1.4 mm (55 mils)
Prox Output Incremental Scale Factor: 7.87 mV/µm (200 mV/mil) ±6.5%
Frequency Response: 5 Hz to 6,000 Hz, +0 / –3 dB
Minimum Target Diameter: 9.5 mm (0.375 in)
Operating Temperature: –35°C to +85°C (–31°F to +185°F)
Storage Temperature: –52°C to +100°C (–62°F to +212°F)

The 990 Vibration Transmitter is intended primarily for theoriginal equipment manufacturers (OEMs) of

centrifugal aircompressors or small pumps, motors, or fans who prefer toprovide a simple 4 to 20 mA

proportional vibration signal asthe input to their machinery control system.

The transmitter is a two-wire, loop-powered device thataccepts input from our 3300 Nsv proximity probe

and itsmatching extension cable (available in 5 m and 7 m systemlength options).
