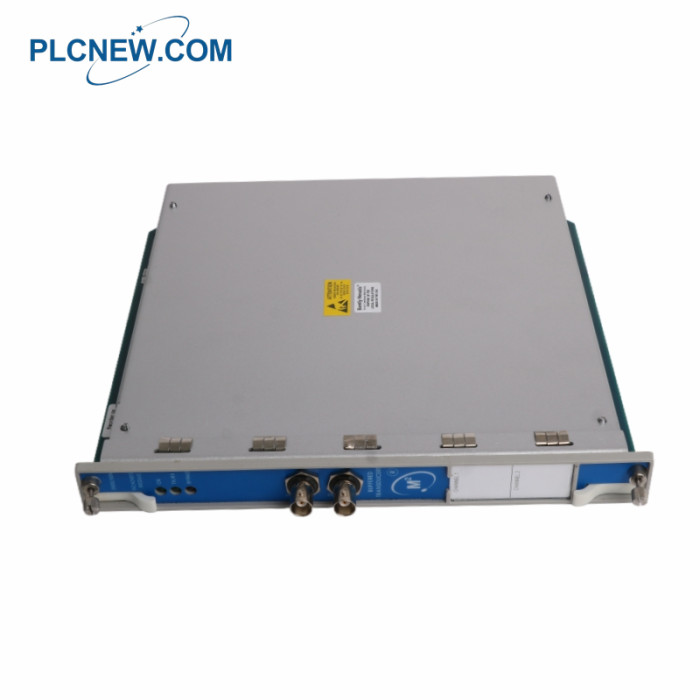

Bently Nevada 3500/50M 286566-02 288062-02 Tachometer Module
Description
The Bently Nevada 3500/50M Tachometer Module is a dual-channel monitor designed for machinery condition monitoring. It processes input signals from proximity probes or magnetic pickups to measure shaft rotational speed, rotor acceleration, and rotation direction. The module provides user-configurable alarm setpoints for speed, acceleration, zero speed, and reverse rotation conditions. It also supplies conditioned Keyphasor signals to the rack backplane, eliminating the need for a separate Keyphasor module.
Input Signal Range: +10.0 V to -24.0 V
Input Impedance: 20 kΩ (standard), 40 kΩ (TMR), 7.15 kΩ (internal barrier)
Power Consumption: 5.8 W typical
RPM Accuracy: ±0.1 rpm (<100 rpm), ±1 rpm (100–10,000 rpm), ±0.01% (>10,000 rpm)
RPM/Min Accuracy: ±20 rpm/min
Alarm Time Delays: 1–60 sec (Alarm 1), 0.1–60 sec (Alarm 2)
Operating Temperature: -20°C to +85°C (-4°F to +149°F)
Dimensions (Monitor Module): 241.3 mm x 24.4 mm x 24.8 mm (9.50 in x 0.96 in x 9.52 in)
Weight: 0.82 kg (1.8 lb)
