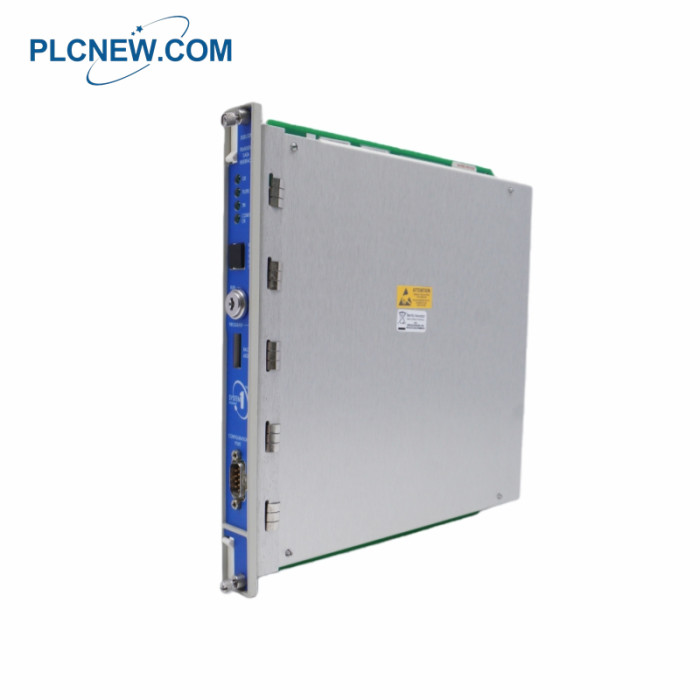

Bently Nevada 3500/22M 138607-01 Transient Data Interface Module
Get a Quick Quote Today
Sales Manager: Frida
Phone/WhatsApp: +86-18965196563 Email:sales17@amikon.cn
Know the Product Details
Power Consumption: 10.5 Watts
Operating Temperature: -30 °C to +65 °C (-22 °F to +149 °F)
Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Humidity: 95%, non-condensing
Battery Life (Powered): 38 years @ 50 °C
Battery Life (Unpowered): 12 years @ 50 °C
Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
Module Weight: 0.91 kg (2.0 lbs)
I/O Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
I/O Module Weight: 0.20 kg (0.44 lbs)
Rack Space: 1 full-height front slot (Module), 1 full-height rear slot (I/O Module)
OK Relay Rating (Standard): 5A @ 24 Vdc/120 Vac, 120 Watts/600 VA max
OK Relay Rating (Gold): Down to 1 mA @ 1 Vdc min
System Contact Current: <1 mAdc, Dry Contact
Keyphasor Speed Range: 1 to 100,000 rpm (dependent on enabled channels)
USB Baud Rate: 115.2 kbaud maximum
USB Cable Length: 5 meters max (3m included)
Ethernet (Copper) Cable Length: 100 meters max
Ethernet (Fiber) Cable Length: 2000 meters max
◆Serves as the primary interface between the 3500 monitoring system and diagnostic/configuration software (e.g., System 1).
◆Combines the functions of a Rack Interface Module (RIM) and a communication processor (like TDXnet) into a single module.
◆Continuously collects both steady-state and transient dynamic (waveform) data from M-series monitors.
◆Optional Channel Enabling Disk allows for dynamic and high-resolution transient data capture.
◆Features multiple communication options: Front Panel USB-B, 10/100Base-TX Copper Ethernet, and 100Base-FX Fiber-Optic Ethernet.
◆Provides critical rack status indications via front panel LEDs (OK, TX/RX, TM, CONFIG OK).
