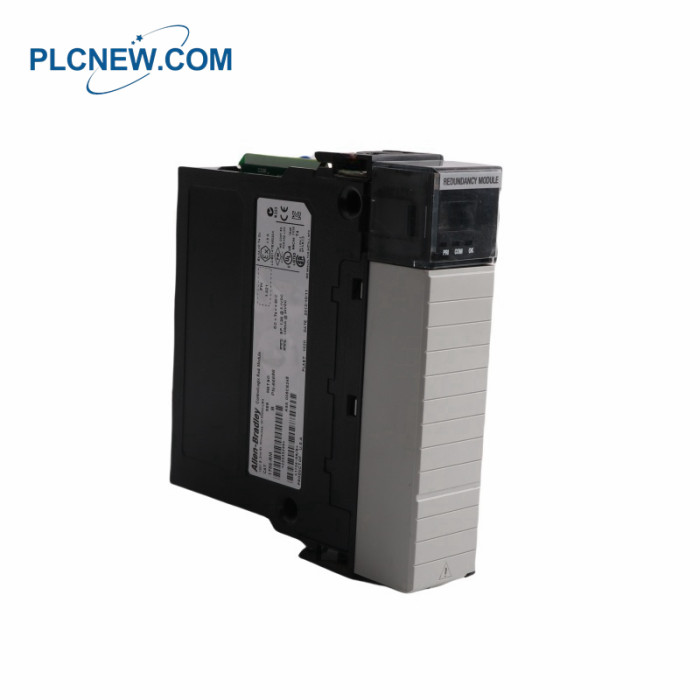

1756-RM Redundancy module
Product parameters
Part Number: 1756-RM
Type: Redundancy Module
Weight: 1.13 lbs (0.51 kg)
Mounting: Chassis-based, any slot
Power Dissipation: 9 W
Current Draw:
1.2 V DC: 4 mA
5.1 V DC: 1.2 A
24 V DC: 120 mA
Thermal Dissipation: 31 BTU/hour
Operating Temperature: 0 to 60 °C (32 to 140 °F)
Storage Temperature: –40 to 85 °C (–40 to 185 °F)
IEC Temperature Code: T4
The 1756-RM is a Redundancy module. This module may only be used with the platform to enable controller redundancy.
It manages connectivity of Two (2) identical controllers, installed in an identical rack of the same components
and configuration. It provides redundancy system monitoring as well as module health via the embedded LED display
such as PRI, COM and OK.
The 1756-RM has been released as Series A and B. Series is basically an enhancement of the previous series however,
a 1756-RM with different series can co-exist in one redundant configuration. It is highly recommended to have the same
series installed to achieve maximum operability of the redundancy setup. When used with the same series of
redundancy module, speed of 100 Mbps is achieved.
