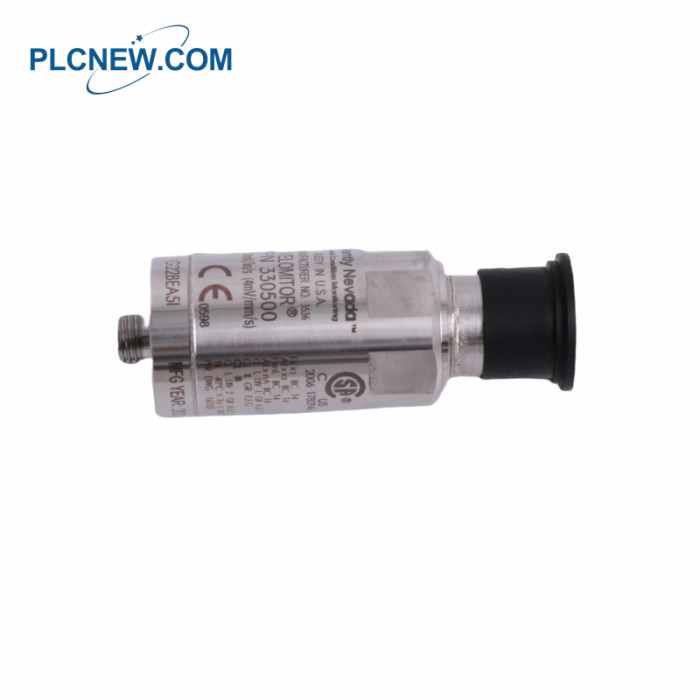

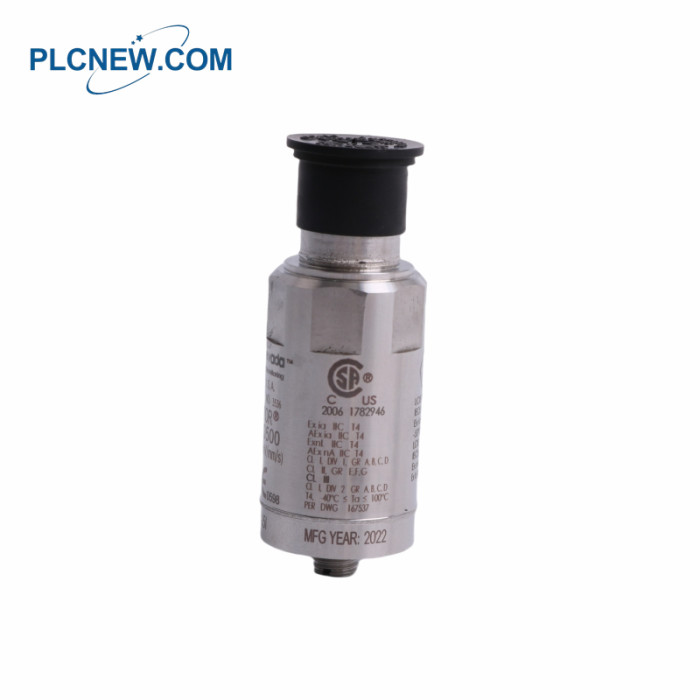

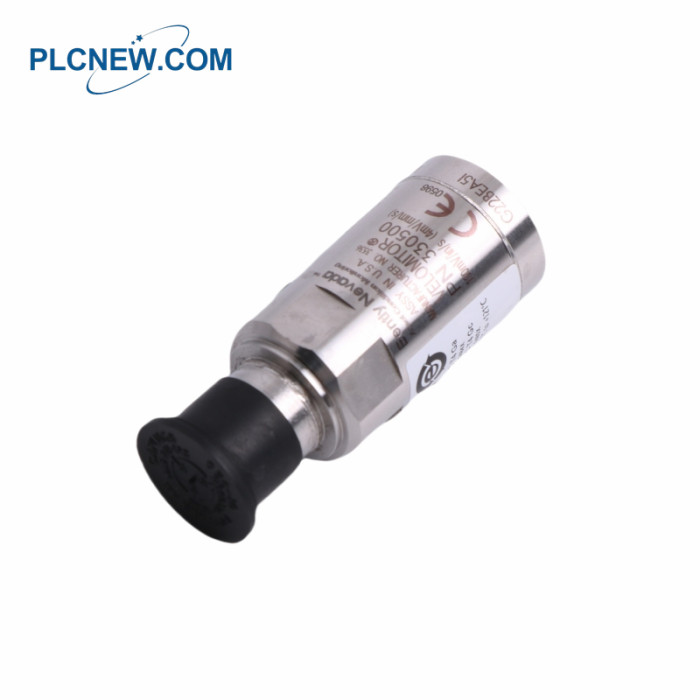

Bently Nevada 107770-03-03 Velocity Transducer
Specifications
|
Model Number |
107770-03-03 |
|
Mounting Thread |
1/2-14 NPT |
|
Typical Weight |
142 g (5.0 oz) |
|
Outer Diameter |
25.3 mm (0.995 in) |
|
Overall Height |
63.2 mm (2.49 in) |
|
Housing Material |
316L stainless steel |
|
Max Mounting Torque |
32–46 kg·cm (24–40 in-lb) |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Temperature Sensitivity |
-14% ~ +7.5% across full operating range |
|
Peak Velocity Range |
Up to 1270 mm/s peak |
|
Primary Frequency Response |
4.5 Hz ~ 5 kHz (±3.0 dB) |
|
Secondary Frequency Response |
6 Hz ~ 2.5 kHz (±0.9 dB) |
|
Amplitude Linearity |
±2% up to 152 mm/s peak |
|
Mounted Resonant Frequency |
>12 kHz |
|
Shock Rating |
5000 g peak |
|
Max Allowable Cable Length |
Up to 305 m |
The Bently Nevada 107770-03-03 is a specialized component designedfor industrial machinery vibration monitoring.
It is a housing unit thataccommodates a piezoelectric velocity sensor, a type of transducerused to measure the speed
of vibrating surfaces. This particular modelis often employed in condition monitoring systems to detect potentialme
chanical faults and ensure optimal equipment performance.
Product Applications
Oil and Gas: Monitoring the vibration of casings in large centrifugal compressors, reciprocating compressors, and expanders.
Power Plants: Protecting the bearing housings and casings of steam turbines, gas turbines, induced draft fans, and forced
draft fans.
Petrochemicals: Real-time vibration monitoring of pumps and fans in various high-risk explosion-proof areas (such
as CENELEC-certified explosion-proof areas).
Water Resources and Heavy Industry: Online status monitoring of large water pump units, coal mills, centrifuges,
and air-cooled equipment.
