Bently Nevada 330104-00-07-50-02-05 Proximity Probe, Metric

Bently Nevada 330104-00-07-50-02-05 Proximity Probe, Metric

➽Inquire to Frida

Phone/WhatsApp: +86-18965196563       Email:sales17@amikon.cn

➽Know the product

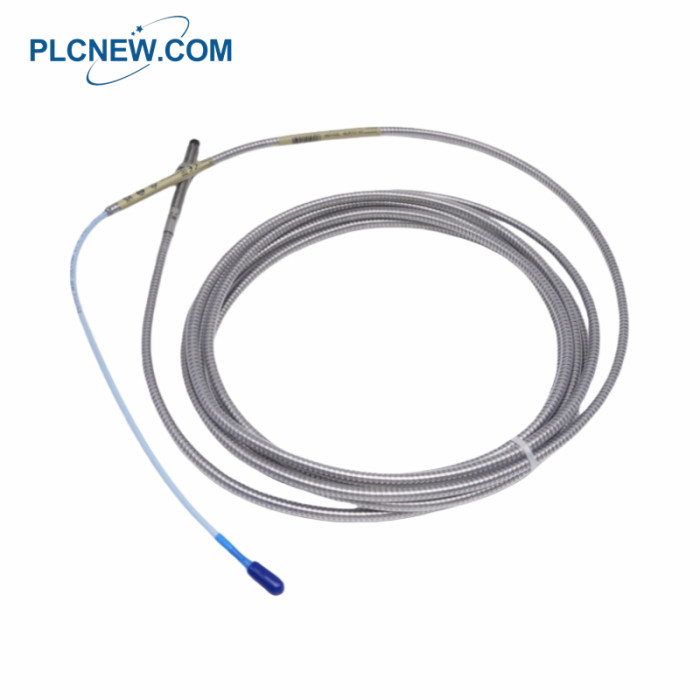

The 330104-00-07-50-02-05 is a 5-meter long, armored 8mm proximity probe with an M10x1 metric thread.
It comes with standard cable, ClickLoc connectors, and carries CSA, ATEX, and IECEx hazardous area approvals.
This probe is designed for integration into a 5-meter 3300 XL system for reliable vibration and position monitoring

in industrial applications.

Product Type: 3300 XL 8 mm Proximity Probe
Thread Type: M10 x 1
Armor: With Armor
Unthreaded Length (A): 00 indicates 0 mm unthreaded length
Overall Case Length (B): 07 indicates 70 mm case length (ordered in 10mm increments, '07' = 7 x 10mm = 70mm)
Total Length (C): 50 indicates a 5.0 meter (16.4 feet) total probe cable length
Connector and Cable Type: 02 indicates a Miniature coaxial ClickLoc connector with standard cable
Cable Specification: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable
Tensile Strength (Probe Case to Lead): 330 N (75 pounds)
Tensile Strength (Connector): 270 N (60 pounds) at probe lead to extension cable connection
Recommended Case Torque (Standard forward mounted): 11.2 N•m (100 in•lbf)
Maximum Case Torque (Standard forward mounted): 33.9 N•m (300 in•lbf)
Connector Torque (Maximum): 0.565 N•m (5 in•lbf)
Minimum Bend Radius: 25.4 mm (1.0 inch)
System Length: Designed for use with a 5-meter Proximitor Sensor system
Locknut: Supplied with a locknut (M17 size for M10x1 threads) with pre-drilled safety wire holes
Operating/Storage Temperature (Standard Cable): -52°C to +177°C (-62°F to +350°F)
Seal Material: Viton O-ring (Note: exposing probe to temperatures below -34°C/-30°F may cause premature seal failure)
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for a standard 5m system
Linear Range: 2.0 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) from the target
Recommended Gap Setting: 1.27 mm (50 mils) for radial vibration

➽Purchase Notes

➽Company Overview

Our company specializes in supplying discontinued and hard-to-find parts for global industrial brands for over 20 years.
Inventory: We have more than 30.000 high-quality spare parts, they can be sold immediately.

Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules.

-Our advantageous brands:
ABB, Bently Nevada, GE, Siemens, Honeywell, Foxboro, Emerson, Hima, Ics Triplex, etc.

-Company Address:

GUOMAO BUILDING, HUBIN SOUTH ROAD, SIMING DISTRICT, XIAMEN, Fujian, China.
