Bently Nevada 330101-04-16-10-02-05 Proximity Probe

Bently Nevada 330101-04-16-10-02-05 Proximity Probe

➽Inquire to Frida

Phone/WhatsApp: +86-18965196563       Email:sales17@amikon.cn

➽Know the product

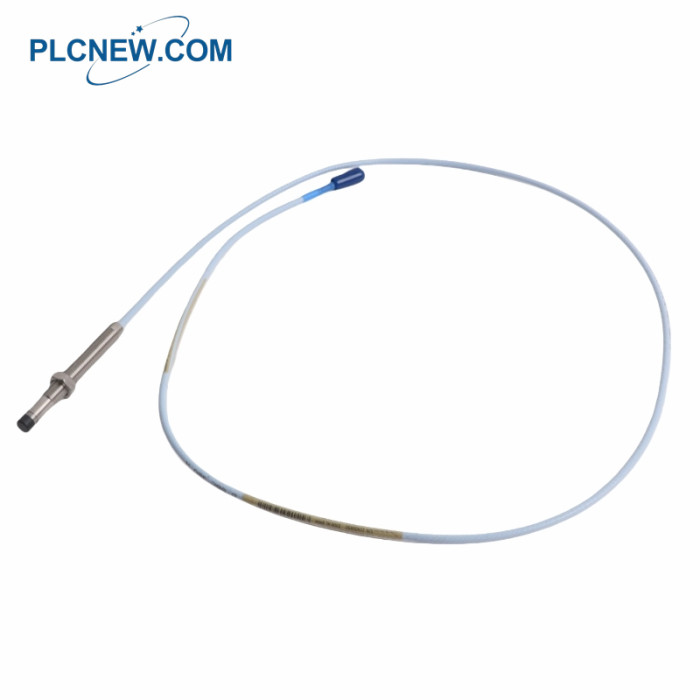

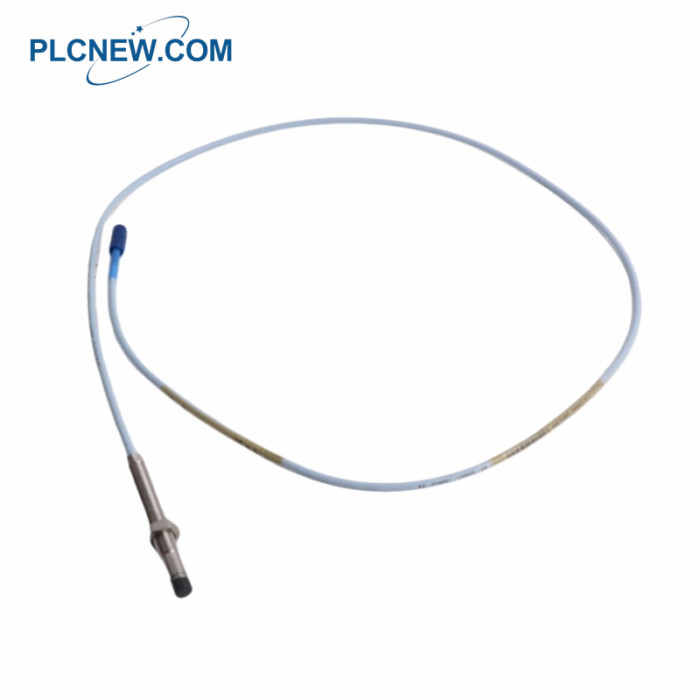

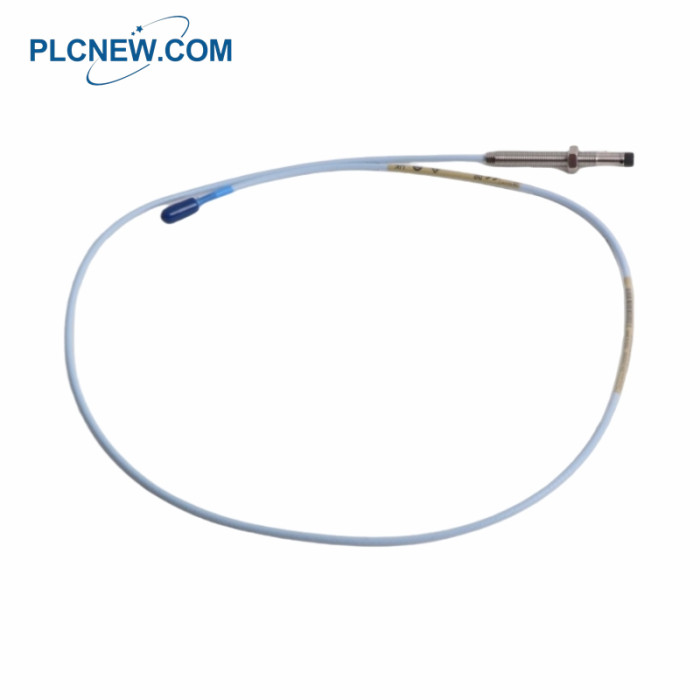

The 330101-04-16-10-02-05 is an unarmored 8mm proximity probe with a 3/8-24 UNF thread and a 1-meter integral cable.
It features a 1.6-inch case length, standard ClickLoc connectors, and carries multiple hazardous area approvals.
This probe is designed for vibration and position measurements where a compact, approved transducer is required for

integration into a 3300 XL monitoring system.

Product Type: 3300 XL 8 mm Proximity Probe
Thread Type: 3/8-24 UNF
Armor: Without Armor
Unthreaded Length (A): 04 indicates 0.4 inches unthreaded length
Overall Case Length (B): 16 indicates 1.6 inches case length
Total Length (C): 10 indicates a 1.0 meter (3.3 feet) total probe cable length
Connector and Cable Type: 02 indicates a Miniature coaxial ClickLoc connector with standard cable
Agency Approval Option: 05 indicates CSA, ATEX, and IECEx Approvals
Cable Specification: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable
Tensile Strength (Probe Case to Lead): 330 N (75 pounds)
Tensile Strength (Connector): 270 N (60 pounds) at probe lead to extension cable connection
Recommended Case Torque (Standard forward mounted): 11.2 N•m (100 in•lbf)
Maximum Case Torque (Standard forward mounted): 33.9 N•m (300 in•lbf)
Connector Torque (Maximum): 0.565 N•m (5 in•lbf)
Minimum Bend Radius: 25.4 mm (1.0 inch)
Locknut: Supplied with a 9/16 inch locknut with pre-drilled safety wire holes
Operating/Storage Temperature (Standard Cable): -52°C to +177°C (-62°F to +350°F)
Seal Material: Viton O-ring (Note: exposing probe to temperatures below -34°C/-30°F may cause premature seal failure)
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for a standard 1m system
Linear Range: 2.0 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) from the target
Recommended Gap Setting: 1.27 mm (50 mils) for radial vibration
Frequency Response: 0 to 10 kHz, +0, -3 dB
