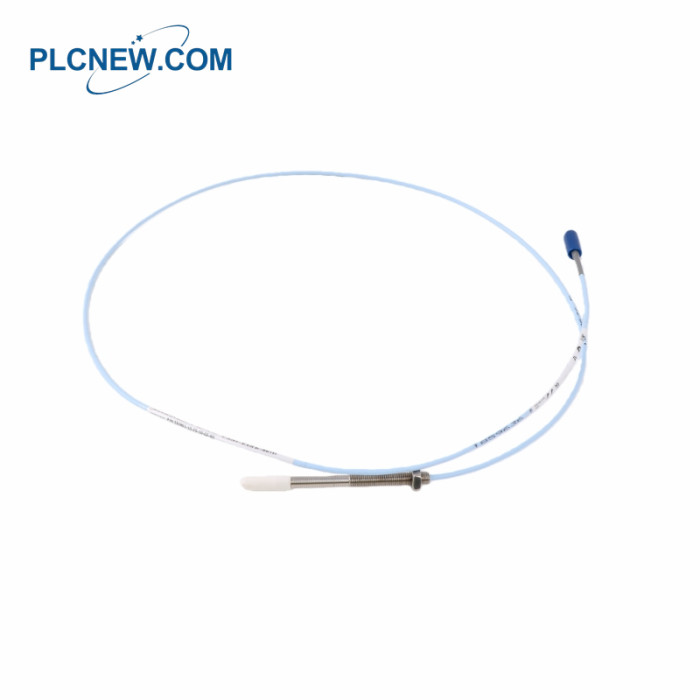

Bently Nevada 330901-00-40-10-02-05 Proximity Probe
Specifications
Manufacturer
Bently Nevada
Product No.
330901-00-40-10-02-05
Product Type
3300 NSv Proximity Probe
Country of Manufacture
Made in U.S.A.
Certificate of Origin
Available upon request
Unthreaded Length Option
00 = 0.0 in
Overall Case Length Option
40 = 4.0 in
Total Length Option
10 = 1.0 meter (39 in)
Connector & Cable Type
02 = Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option
05 = Multiple Approvals
Operating Temperature
-34°C to +177°C (-30°F to +351°F)
Storage Temperature
-51°C to +177°C (-60°F to +351°F)
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 304 stainless steel (SST)
The Bently Nevada 3300 XL ( 330901-00-40-10-02-05) is an 8 mm proximity probe engineered for precise,
non-contact measurement of shaft vibration and position in rotating machinery. It is an integral component
of the 3300 XLProximity Transducer System, which also includes the extension cable and Proximitor sensor.
This combinationdelivers reliable voltage output proportional to the gap between the probe tip and conductive
surfaces, enablingaccurate monitoring of both static (shaft position) and dynamic (vibration) signals.
Product Applications
Oil and gas refineries: Used for axial displacement and vibration monitoring of compressors, gas turbines,
and hydraulic pumps.
Power engineering: Vibration analysis of turbine and generator sets.
General industrial machinery: High-speed gearboxes and bearing vibration monitoring.
Technical features:
High precision: Suitable for high-precision measurements requiring extremely small bearing clearance,
operating in a low-pressure non-contact state.
Flexible installation: Optional armored cable can be installed, suitable for harsh conditions.
System composition: Includes probe, extension cable and Proximitor sensor.
