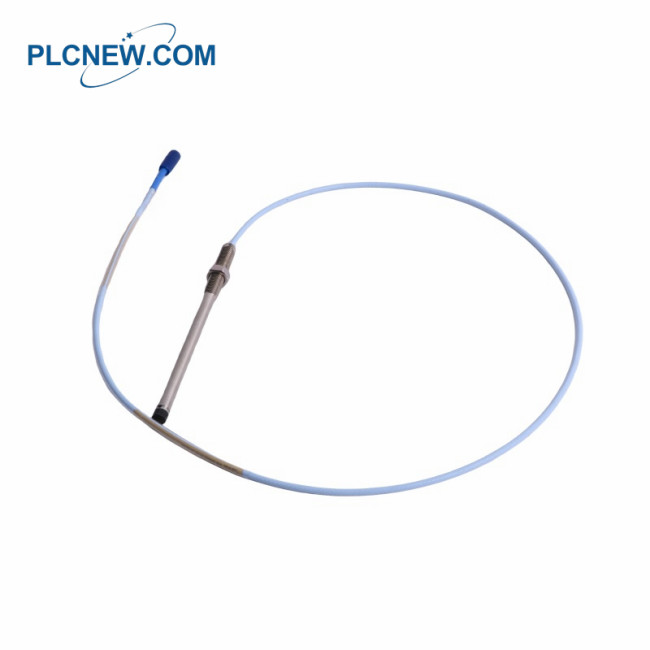

Bently Nevada 330101-00-35-05-02-05 Proximity Transducer System
Bently Nevada 330101-00-35-05-02-05 Specification
Power Requirement: –17.5 Vdc to –26 Vdc
Supply Sensitivity: Less than 2 mV change
Output Resistance: 50 Ω
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Linear Range: 2 mm (80 mils)
Standard 5 or 1 meter System: 7.87 V/mm (200 mV/mil) ± 5%
Standard 9 meter System: 7.87 V/mm (200 mV/mil) ± 6.5%
Minimum: 50.8 mm (2 in)
Recommended Minimum: 76.2 mm (3 in)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Bently Nevada 330101-00-35-05-02-05 Description
The system provides an output voltage that is directlyproportional to the distance between the probe tip and
theobserved conductive surface and can measure both static(position)and dynamic (vibration) values. The system'
sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor
reference and speed measurements3.The 3300 XL 8 mm system delivers the most advancedperformance in our eddy
current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the
American Petroleum institute's (APl)670 Standard for mechanical configuration, linear range,accuracy, and
temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support
complete interchangeability ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench
calibrate individual components.
