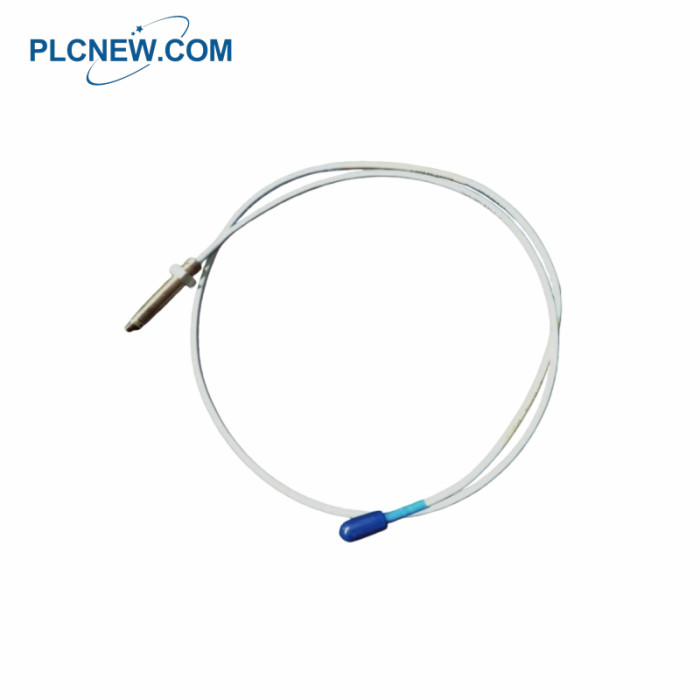

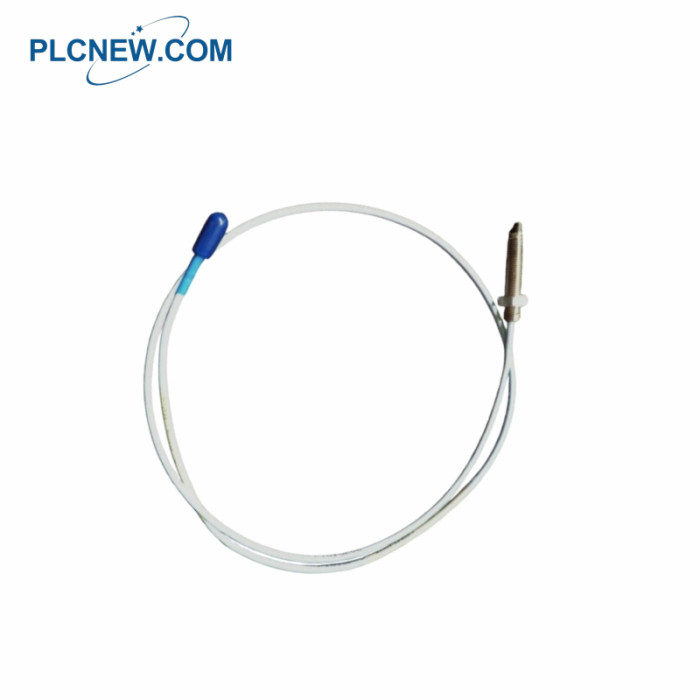

Bently Nevada 330101-00-18-10-12-05 Proximity Probe

Bently Nevada 330101-00-18-10-12-05 Proximity Probe

Quote at the Same Day

Sales Manager: Frida

Phone/WhatsApp: +86-18965196563       Email:sales17@amikon.cn

Product Parameters

AA: Unthreaded Length Option = 00 → 0.0 inches
BB: Overall Case Length Option = 18 → 1.8 inches
CC: Total Length Option = 10 → 1.0 meter (3.3 feet)
DD: Connector and Cable-Type Option = 12 → Miniature coaxial ClickLoc connector, FluidLoc cable
EE: Agency Approval Option = 05 → CSA, ATEX, IECEx Approvals
Probe DC Resistance (RPROBE):
For 1.0 m probe: 7.59 ± 0.50 Ω (center conductor to outer conductor)
Case Length: 1.8 inches
Unthreaded Length: 0.0 inches
Total Probe Length: 1.0 meter
Tensile Strength (Cable to Probe): 330 N (75 lbf)
Operating Temperature (Standard Cable):
-52°C to +177°C (-62°F to +350°F)
Maximum Connector Torque: 0.565 N·m (5 in·lbf)
Maximum Thread Engagement: 0.563 inches (for 3/8–24 thread)
Standard forward-mounted: 11.2 N·m (100 in·lbf)
First three threads: 7.5 N·m (66 in·lbf)

Attention Before Use

1.FluidLoc Cable: Use to prevent internal oil leakage along the cable.
2.Hazardous Areas: Certified for CSA, ATEX, IECEx.
3.Thread Engagement: Max engagement is 0.563 inches. Exceeding this can cause binding and voids the warranty.
4.Installation Torque: Recommended torque is 11.2 N•m (100 in•lbf). Do not exceed the maximum rating.
5.Pressure Seal: Not pressure tested. User is responsible for fluid containment. Leaking probes are not covered.
6.Connector Protection: Connector protectors are highly recommended. Avoid silicone tape with turbine oil.
7.Calibration: Factory-calibrated for AISI 4140 steel.
8.Compatibility: Interchangeable with non-XL components, but mixing them limits system performance to non-XL specs.
