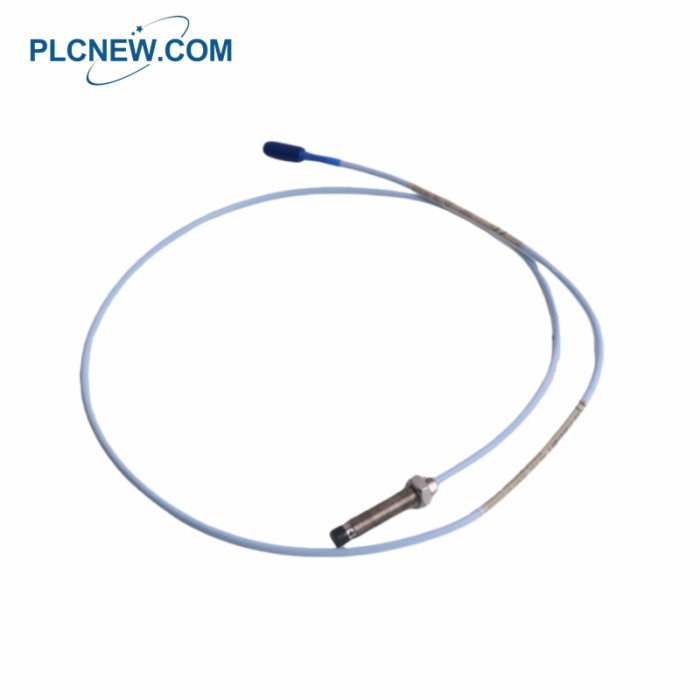

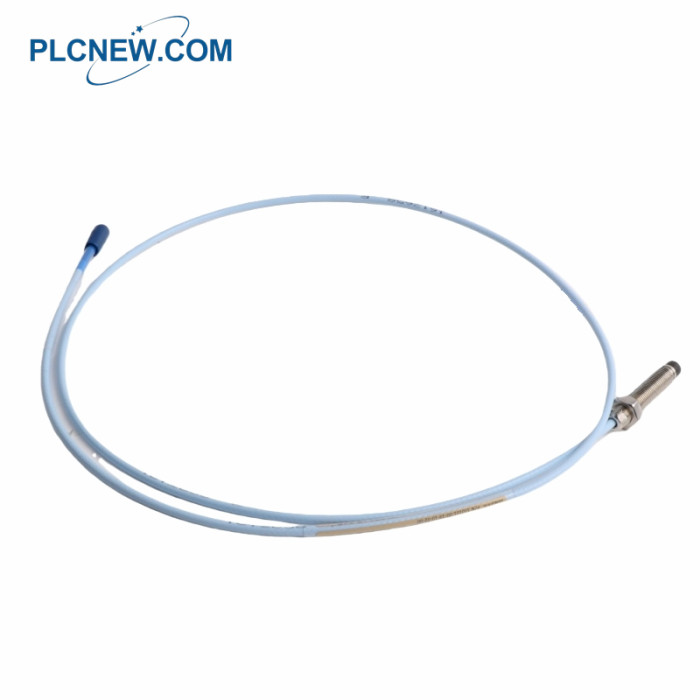

Bently Nevada 330101-00-15-20-02-05 Proximity Probe

Bently Nevada 330101-00-15-20-02-05 Proximity Probe

Get Your Best Offer Now - Frida will help you

Phone/WhatsApp: +86-18965196563

Email: sales17@amikon.cn

Address:GUOMAO BUILDING, HUBIN SOUTH ROAD, SIMING DISTRICT, XIAMEN, Fujian, China.

Product Specifications

Unthreaded Length (A: 00): 0.0 inches (0 mm)
Overall Case Length (B: 15): 1.5 inches (38 mm)
Total Probe Length (C: 20): 2.0 meters (6.6 feet)
Connector and Cable-Type (D: 02): Miniature coaxial ClickLoc connector, Standard cable (FEP insulated)
Agency Approval (E: 05): CSA, ATEX, IECEx Approvals
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Case Material: AISI 303 or 304 Stainless Steel
Thread Size: 3/8-24 UNF
Cable Type: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
Connector Type: Gold-plated Miniature ClickLoc coaxial connector
Operating Temperature Range (Standard): -51 °C to +177 °C (-60 °F to +350 °F)
Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils) from target
Recommended Gap Setting: 1.27 mm (50 mils) for radial vibration
Scale Factor: 7.87 V/mm (200 mV/mil) nominal
Tensile Strength (Cable to Case): 330 N (75 lbf)

This is a 3300 XL 8mm proximity probe with a 3/8-24 UNF thread and a 2-meter integrated standard cable.

It features a compact 1.5-inch case length and is certified with CSA, ATEX, and IECEx approvals for

use in hazardous areas. The probe is designed for precise vibration and position measurement on industrial machinery,

providing a robust and reliable solution for condition monitoring. Its standard FEP cable and ClickLoc connector

ensure easy and secure installation.
