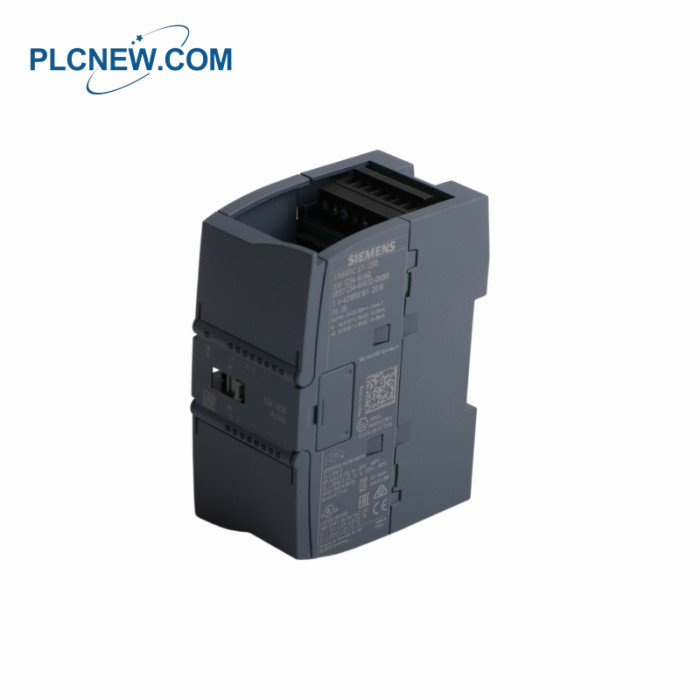

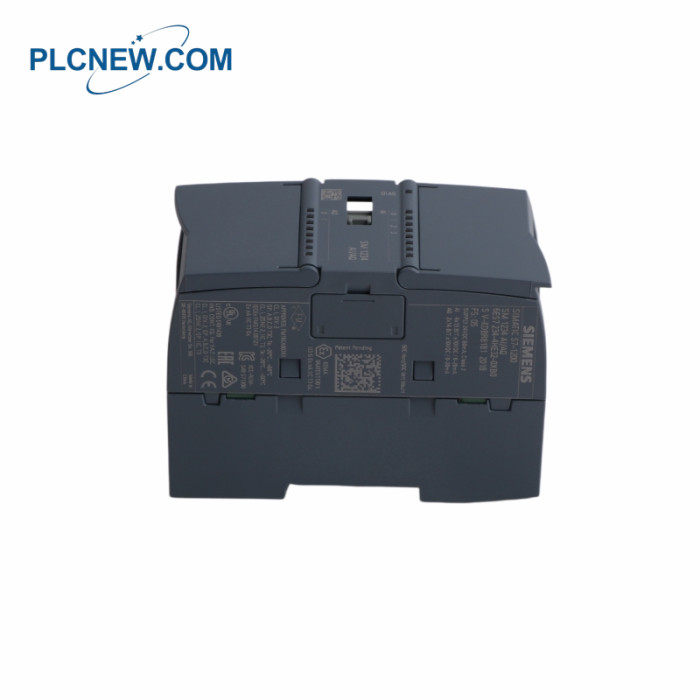

Siemens 6ES7234-4HE32-0XB0 Analog I/O module
Specifications
|
Part Number |
6ES7234-4HE32-0XB0 |
|
Rated DC Supply Voltage |
24 V |
|
Typical Current Consumption |
60 mA |
|
Backplane Bus Current (5 V DC) |
Typ. 80 mA |
|
Typical Power Loss |
2 W |
|
Number of Analog Inputs |
4; Current or voltage differential inputs |
|
Max. Permissible Input Voltage (Destruction Limit) |
35 V |
|
Max. Permissible Input Current (Destruction Limit) |
40 mA |
|
Max. Cycle Time (All Channels) |
625 µs |
|
Accuracy-Voltage (vs Input Range) |
±0.1 % |
|
Accuracy-Current (vs Input Range) |
±0.1 % |
|
Accuracy-Voltage (vs Output Range) |
±0.3 % |
|
Accuracy-Current (vs Output Range) |
±0.3 % |
|
Operating Humidity (25 °C, non-condensing) |
Max. 95 % |
|
Operating Temperature |
-20 … 60 °C |
|
IP Rating |
IP20 |
|
Output 1 Electrical Parameters |
-10…10 V, 0…20 mA, 4…20 mA |
|
Electrical Input 1 Parameters |
0…20 mA, 4…20 mA, ±2.5 V, ±5 V, ±10 V |
The Siemens 6ES7234-4HE32-0XB0 is a high-performance Analog I/O Module used in SIMATIC systems for accurate
analog signal acquisition and processing in industrial control applications. This module operates with a rated 24 V DC
supply voltage and provides reliable performance for process , machinery monitoring, and industrial control environments.
The module features 4 analog inputs supporting both current and voltage differential input signals, allowing flexible
integration with a wide range of industrial sensors, transmitters, and measurement devices. With a typical current
consumption of 60 mA and a backplane bus current consumption of approximately 80 mA at 5 V DC, the module
delivers efficient and stable operation while maintaining low power usage. Its typical power loss is only 2 W, helping
improve overall system energy efficiency.
Product Applications
Automobile manufacturing and robotics: Used for processing pressure feedback of welding fixtures, precise positioning
signals of the end effector of the robotic arm, and speed/torque instructions of the servo system.
Water treatment and environmental engineering: Connect various level meters, flow meters and pressure transmitters
to accurately collect network data and output adjustment signals to the frequency converter to control the start/stop of
water pumps and valve opening.
Food and beverage and packaging machinery: Achieve high-precision analog control of heating temperature, material
level height, and belt transmission speed to ensure strict implementation of process formulas.
HVAC (Heating, Ventilation, and Air Conditioning) and building : Collect temperature and humidity sensor signals,
output control signals for electrically operated regulating valves and fan coil units to ensure constant temperature and
humidity in the environment.
Metal processing and heavy industry: In harsh industrial environments, cooperate with specific transmitters to monitor
press machine pressure, hydraulic system oil temperature, and motor current.
