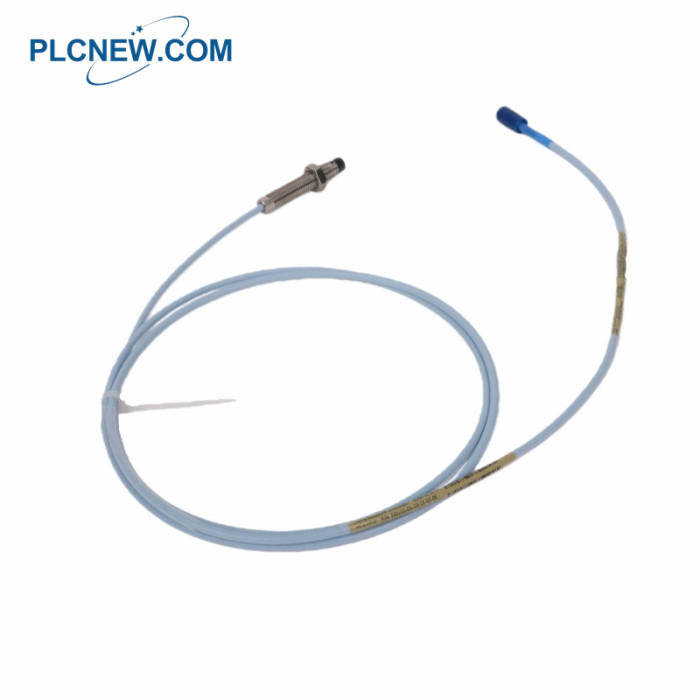

Bently Nevada 330101-00-20-20-02-05 Proximity Probe

Bently Nevada 330101-00-20-20-02-05 Proximity Probe

Click here to inquire Frida

Phone/WhatsApp: +86-18965196563

Email: sales17@amikon.cn

Address:GUOMAO BUILDING, HUBIN SOUTH ROAD, SIMING DISTRICT, XIAMEN, Fujian, China.

Core Specifications

Unthreaded Length (A: 00): 0.0 inches (0 mm)
Overall Case Length (B: 20): 2.0 inches (51 mm)
Total Probe Length (C: 20): 2.0 meters (6.6 feet)
Connector and Cable-Type (D: 02): Miniature coaxial ClickLoc connector, Standard cable (FEP insulated)
Agency Approval (E: 05): CSA, ATEX, IECEx Approvals (for use in hazardous areas)
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Case Material: AISI 303 or 304 Stainless Steel
Thread Size: 3/8-24 UNF
Cable Type: 75Ω triaxial, Standard (FEP insulated)
Connector Type: Gold-plated Miniature ClickLoc coaxial connector
Operating Temperature Range (Standard): -51 °C to +177 °C (-60 °F to +350 °F)
Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils) from target
Recommended Gap Setting: 1.27 mm (50 mils) for radial vibration
Scale Factor: 7.87 V/mm (200 mV/mil) nominal
Tensile Strength (Cable to Case): 330 N (75 lbf)

Fields of Use

The system’s primary applications are vibration and position measurements on fluid-film bearing machines,

as well as Keyphasor reference and speed measurements.
Rotating Machinery Monitoring: Suitable for pumps, motors, fans, compressors — continuous vibration

and position monitoring in limited-space installations.
Oil & Gas / Petrochemical / Heavy Industry: Designed for harsh, fluid-rich environments such as gearboxes,

hydraulic systems, and turbines — resists fluid ingress with FluidLoc cable.
