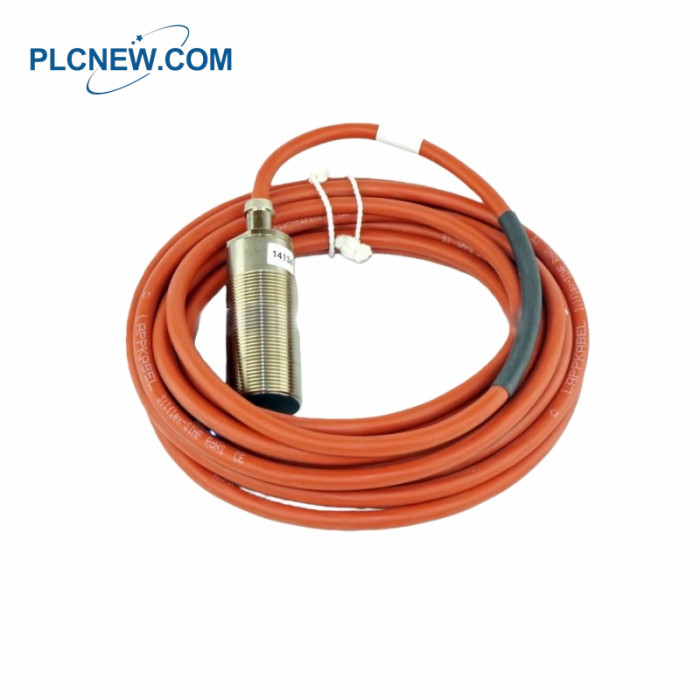

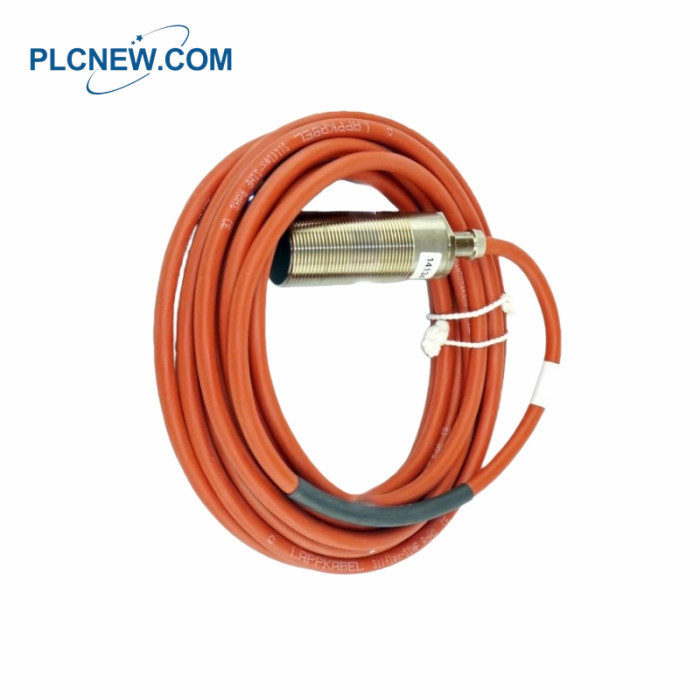

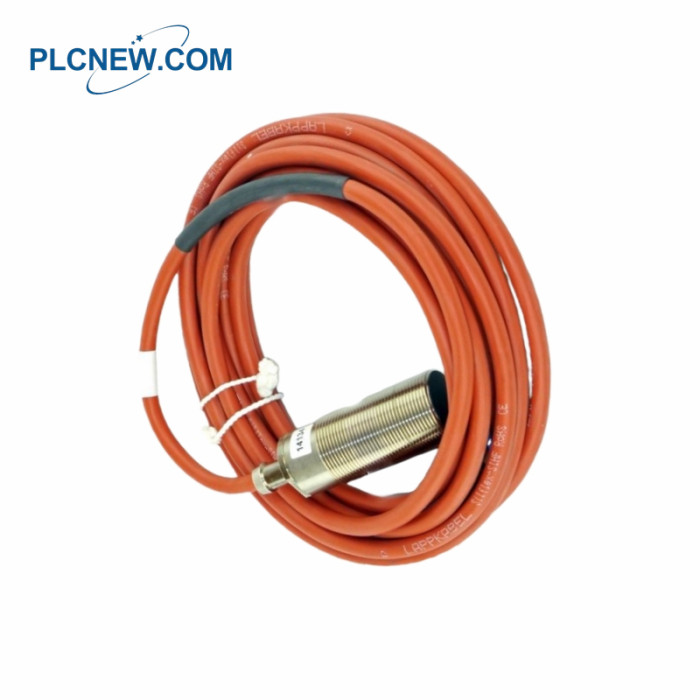

BALLUFF BES 516-114-SA1-05 Inductive sensors

BALLUFF BES 516-114-SA1-05 Inductive sensors

Details of the module

Part Number:BES 516-114-SA1-05
Hysteresis H max. (% of Sr): 15.0 %
Load Capacitance max. at Ue: 0.15 µF
No-load Current Io max., undamped: 15 mA
Operating Voltage Ub: 10–30 VDC
Rated Insulation Voltage Ui: 75 V DC
Rated Operating Current Ie DC: 400 mA
Rated Operating Voltage Ue DC: 24 V
Rated Short Circuit Current: 100 A
Ready Delay Tv max.: 10 ms
Repeat Accuracy max. (% of Sr): 5.0 %
Residual Current Ir max.: 80 µA
Switching Frequency: 300 Hz
Utilization Category: DC -13
Voltage Drop Static max.: 1.5 V

The BALLUFF BES 516-114-SA1-05 is a high-performance inductive proximity sensor designed for precise

non-contact detection of metallic objects in industrial systems.
It delivers reliable switching signals even in harsh environments, supporting high-speed operation and stable

performance under industrial conditions.

Frequently asked questions：

Q1: What is the BALLUFF BES 516-114-SA1-05 used for?
A: It is used for non-contact detection of metallic objects in industrial and machinery systems.
Q2: What is the switching frequency of this sensor?
A: The sensor supports a switching frequency of 300 Hz, suitable for fast-moving applications.
Q3: What is the pollution degree rating of the BES 516-114-SA1-05?
A: It has a Pollution Degree 3, making it suitable for harsh industrial environments.
Q4: What type of output resistance does this sensor have?
A: The output resistance is 6.2 kΩ + D / 10.0 kΩ + D, depending on wiring configuration.
