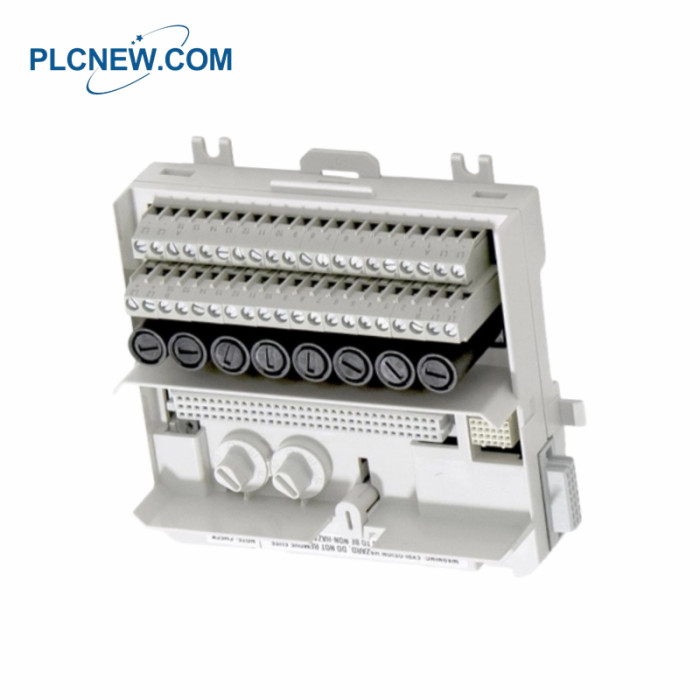

ABB TU838 Extended Module Termination Unit

ABB TU838 Extended Module Termination Unit

Product Details

Product ID: 3BSE008572R1
Module: TU838
Catalog Description: TU838 Extended MTU, 50V
Product Type: Module Termination Unit
Type: Extended
Connection: Terminal block
Channels: 16
Voltage: 50 V
Mounting: Both directions
Mounting detail: 55 ºC (131 °F)
Dimensions:
Depth/Length: 64 mm
Height: 170 mm
Width: 58.5 mm
Net Weight: 0.375 kg

The TU838 MTU can have up to 16 I/O channels.   The maximum rated voltage is 50 V and maximum rated current

is 3 A per channel.
The MTU distributes the ModuleBus to the I/O module and to the next MTU.   It also generates the correct address to

the I/O module by shifting the outgoing position signals to the next MTU.
The MTU can be mounted on a standard DIN rail.   It has a mechanical latch that locks the MTU to the DIN rail.
Two mechanical keys are used to configure the MTU for different types of I/O modules.   This is only a

mechanical configuration and it does not affect the functionality of the MTU or the I/O module.   Each key has six

positions, which gives a total number of 36 different configurations.
