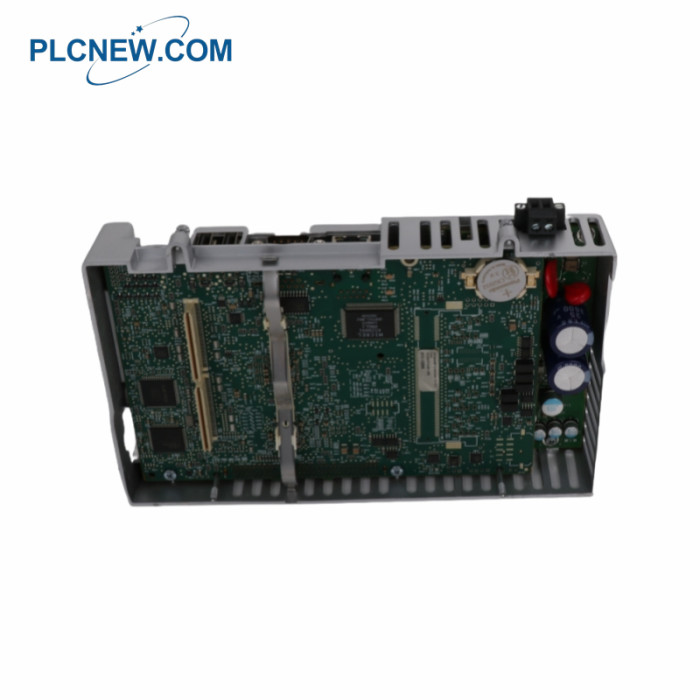

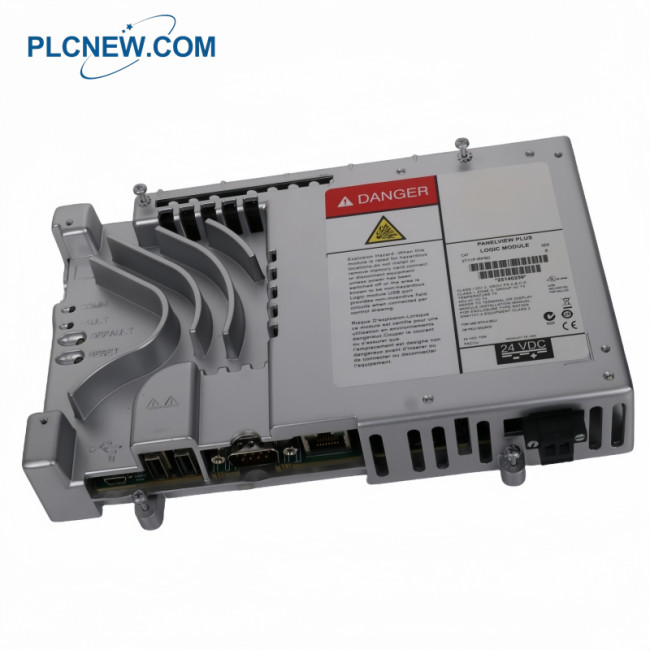

2711P-RP8D PanelView Plus 6 Module

2711P-RP8D PanelView Plus 6 Module

2711P-RP8D Specification：

Communication:One (1) RS232; One (1) Ethernet; Two (2) USB
Product Family: PanelView Plus 6 Operator Terminal
Memory: 512 MB Flash/ 512 MB RAM (79 MB free user memory)
Compatible Hardware: PanelView Plus 6 700-1500
Status indicators: Red and Green LED
Interfaces: Ethernet port, serial port, two USB ports, CompactFlash card slot
Marine Certified: Yes
Operating Temperature: 0-55 Degree Celsius
Power input: 24VDC
Power Dissipation: 70 Watts
Part Number/Catalog No. 2711P-RP8D
Nonvolatile Memory: 512 MB
Input: 24 VDC
RAM Memory: 512 MB
Series: 2711p-RP8D/A Ser A

2711P-RP8D Description

The 2711P-RP8D module is a module in the PanelView Plus 6 series.  It supports the PanelView terminals without extended features.  It is a 24 Volt DC input module with 512 MB of storage memory for data and application storage.  It also has a volatile memory of 512 MB for processing applications.  The module can be programmed by a computer using the RS-232 serial communication port.  Other devices can also be linked to the 2711P-RP8D module via the same port.  The module also uses the Ethernet protocol for enhanced network capability, and like other PanelView Plus 6 terminals, the 2711P-RP8D uses a standard Ethernet cable for applications, and data transfers between a computer and the PanelView Plus 6 (700 to 1500) terminal.
