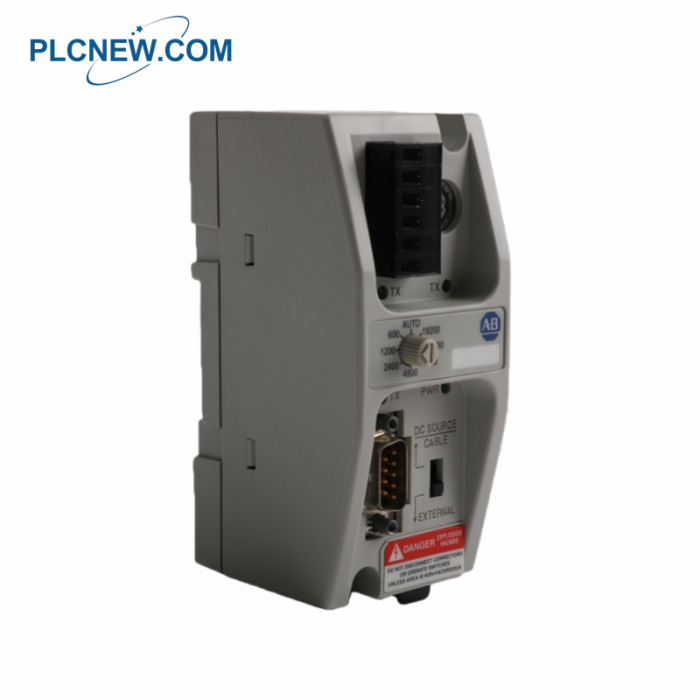

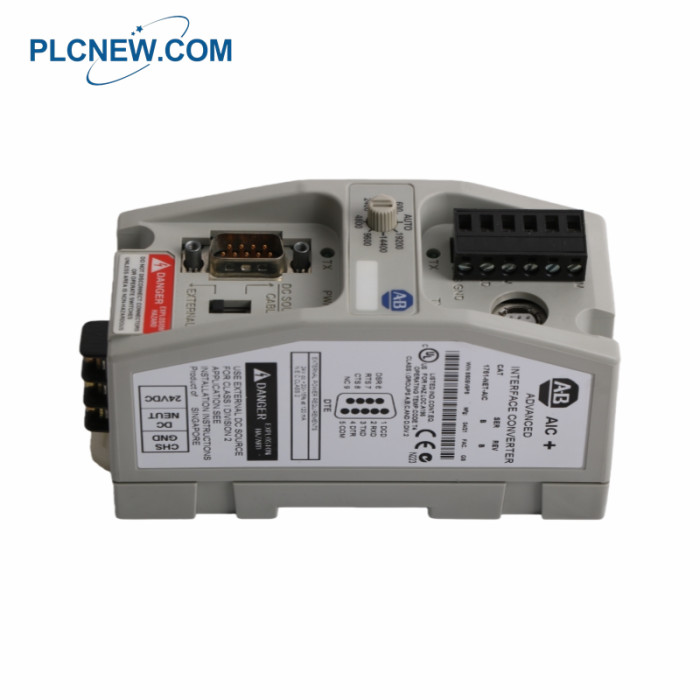

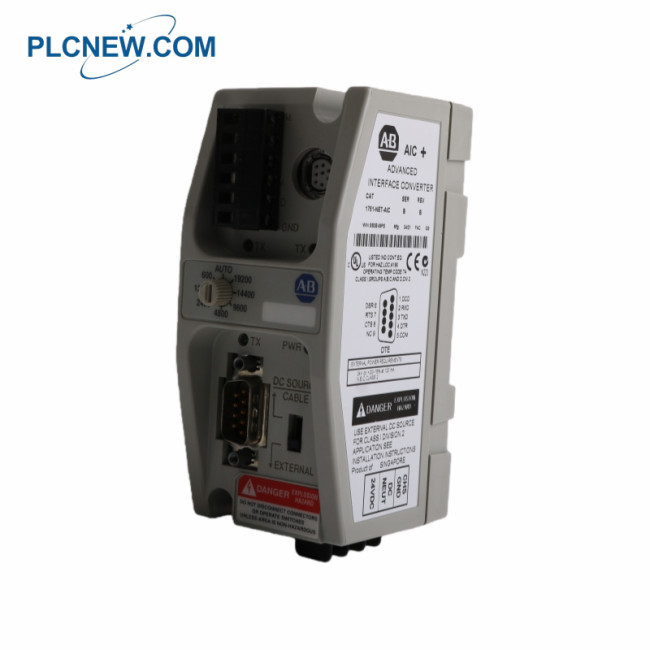

1761-NET-AIC Advanced Interface Converter

1761-NET-AIC Advanced Interface Converter

Get Your Best Offer Now - Frida will help you

Phone/WhatsApp: +86-18965196563

Email: sales17@amikon.cn

Address:GUOMAO BUILDING, HUBIN SOUTH ROAD, SIMING DISTRICT, XIAMEN, Fujian, China.

Product Specifications

Power Supply Requirement: 20.4...28.8V DC
Current Draw: 0...   120 mA (200 mA inrush current, max)
Internal Isolation: 500V DC between all ports and power supply terminals
Communication Ports: One RS-485 communication port (Phoenix Plug), One RS-232 (DB-9, DTE) communication port,

One RS-232 (8-pin mini-DIN) communication port
Supported Protocols: DH-485, DF1 (Full-duplex and Master-slave), User-mode ASCII
Network Specifications (DH-485/DF1/User): Maximum number of nodes: 32 per multidrop network,

Maximum length: 1219 m (4000 ft) per multidrop network, Maximum number of ganged multidrop networks: 2
Operating Ambient Temperature: 0...   60 °C (32...   140 °F)
Storage Temperature: -40...   85 °C (-40...   175 °F)
Mounting: DIN rail mount or Panel mount
DC Power-source Selector Switch: Positions for "CABLE" (power from 8-pin mini-DIN port device)

and "EXTERNAL" (power from external 24V DC source)
LED Indicators: PWR (Power OK), TX RS-232 (9-pin), TX RS-232 (8-pin mini-DIN), TX RS-485

The AIC+ Advanced Interface Converter provides a communication link and electrical isolation between

various networked devices using different serial protocols and physical media (RS-232 and RS-485).

It is compatible with a wide range of controllers and peripherals, facilitating connections in networks such as

DH-485 and DF1 master-slave systems.   This converter supports multiple operating modes including point-to-point isolation,

RS-232 to RS-485 conversion, and RS-232 to half-duplex user-mode ASCII isolation.
