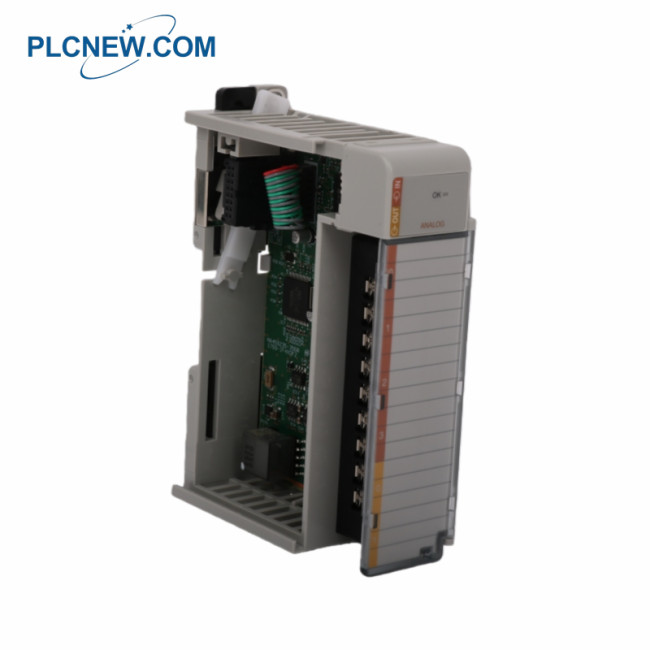

1769-IF4XOF2 Analog I/O Combination Module

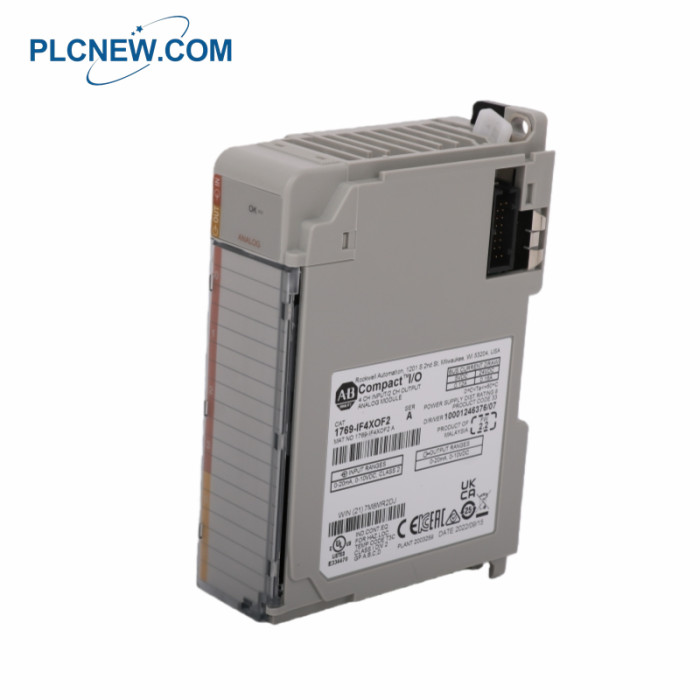

1769-IF4XOF2 Analog I/O Combination Module

Your Partner is Listening

Sales Manager: Frida

Phone/WhatsApp: +86-18965196563       Email:sales17@amikon.cn

Product Parameters

Dimensions: 118 mm H x 87 mm D x 35 mm W (138 mm H including mounting tabs)
Weight: 290 g (0.64 lbs)
Operating Temperature: 0°C to +60°C (32°F to +140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5% to 95% non-condensing
Bus Current Draw: 120 mA at 5V DC, 160 mA at 24V DC
Heat Dissipation: 3.03 W total
Isolation: 500V AC or 710V DC for 1 minute (qualification test)
Number of Inputs: 4 (configurable as single-ended or differential)
Input Types: 0 to 10V DC, 0 to 20 mA
Full Scale Ranges: 0 to 10.5V DC, 0 to 21 mA
Resolution: 8 bits plus sign (sign always positive)
Input Impedance: 150 kΩ (voltage), 150 Ω (current)
Accuracy at 25°C: ±0.7% FS (voltage), ±0.6% FS (current)
Common Mode Rejection: >60 dB at 60 Hz
Channel Response Time: 5 ms
Update Time: 1.3 ms to 4.5 ms (depending on number of enabled channels)

Product Notes

▲Always de-energize before servicing.
▲Approved for Cl. I, Div. 2, Gps. A-D. Power off before component replacement in hazardous areas.
▲Ground via metal panel or DIN rail.
▲Use ESD protection during handling.
▲Use shielded twisted-pair cable (e.g., Belden 8761).
▲Earth shield at module end; add 0.1µF capacitor at sensor end in high-noise environments.
▲Limit cable length; >50m may impair accuracy.
▲Terminal torque: 0.68 Nm; retaining screw torque: 0.46 Nm.
▲Wire size: #14–22 AWG solid or #16–22 AWG stranded.
▲Route analog cables away from high-voltage lines; prefer differential inputs for noise immunity.
