1771-OZL Digital Output Module

1771-OZL Digital Output Module

Product Details

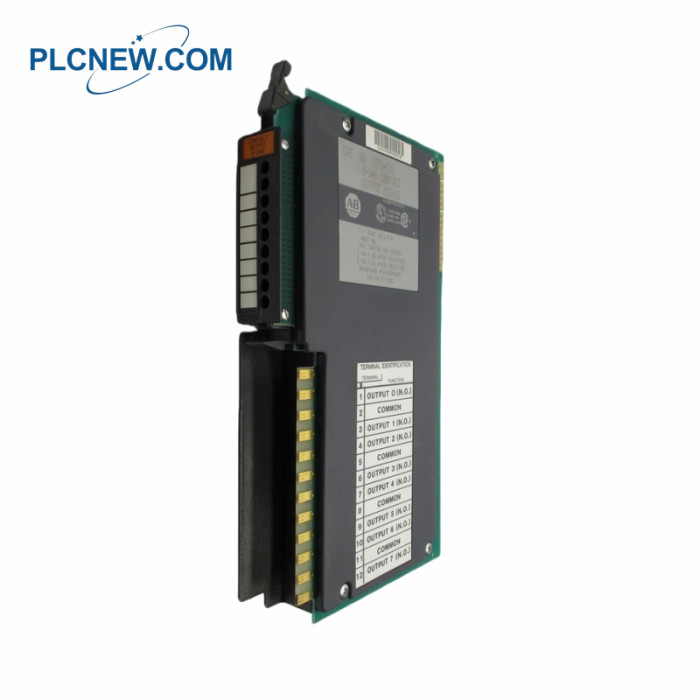

The 1771-OZL is a PLC-5 digital dry-reed relay contact output module.   It comes with an 8 Form A or N.O.

(normally open) output points that are grouped into 4 sets of 2 outputs, with each group having its own common.

These outputs are electrically-isolated from the module’s circuitry.   Eight status indicators on the front plate of the

module are available representing the control status of the output relays.   Once a relay has been energized, its

corresponding indicator will be lit up.   It uses a 1771-WD wiring arm and can be installed in a 1771 Series A or B

I/O chassis.   The entire 1771-OZL module measures 4.38 x 1.5 x 11.81 inches.   The voltage ratings of this module

are 0-24V AC and 0-24V DC and maximum current rating is 100 mA per output.   Note that the peaks, surges, and

spikes must fall within the range of the power rating.   The 1771-OZL has power ratings of 2.4 W resistive each per

output for both DC and suppressed AC. This module also has minimum contact loads of 10 mA at 24V each for both

AC and DC.   The isolation voltage is 1000V for open contacts and 1500V for coil-to-contacts and its backplane current

is a maximum of 420 mA.   It has 1 ms maximum bounce time and operate/release time.   The 1771-OZL module also

has a maximum switching frequency of 10 Hz and a 1 ms signal delay for both on and off states.   Its power dissipation

ranges from a minimum of 2 W to a maximum of 2.2 W, while thermal dissipation is a minimum of 6.9 BTU/hr and a

maximum of 7.6 BTU/hr.   The 1771-OZL has a non-condensing relative humidity of 5-95%, an operating temperature

that ranges from 0-60 .
