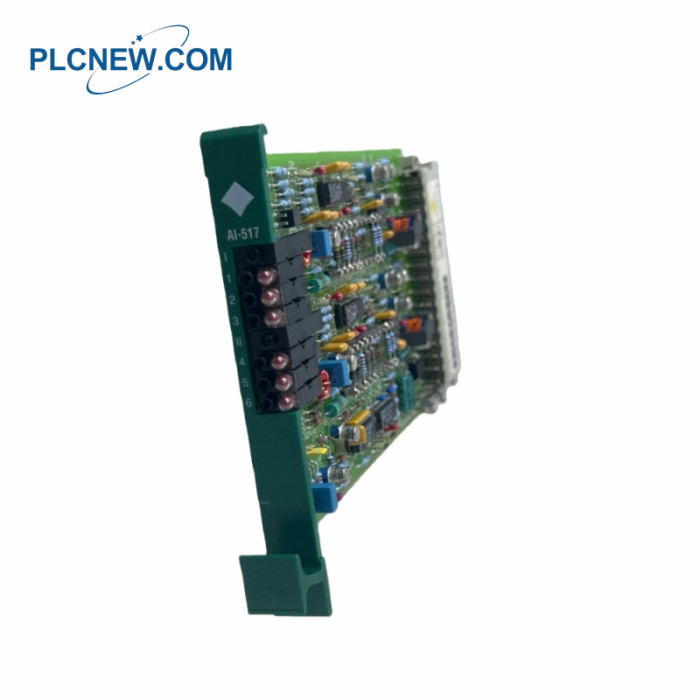

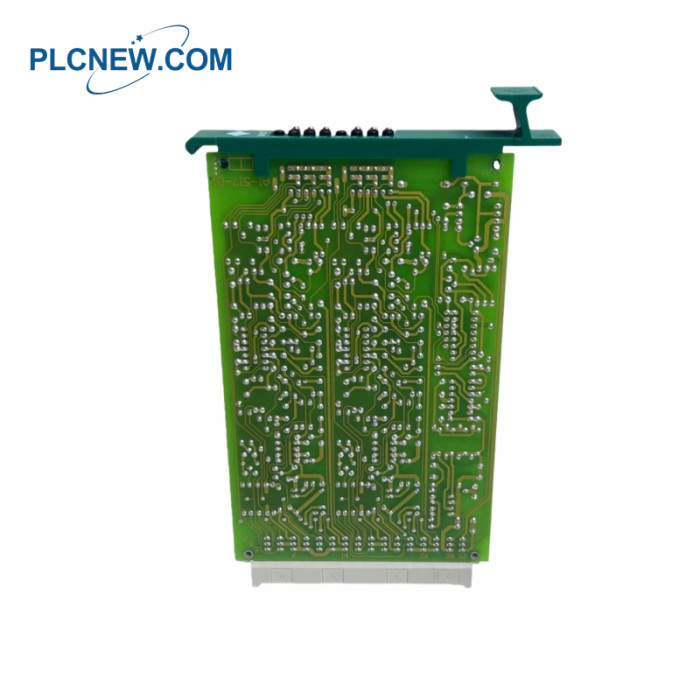

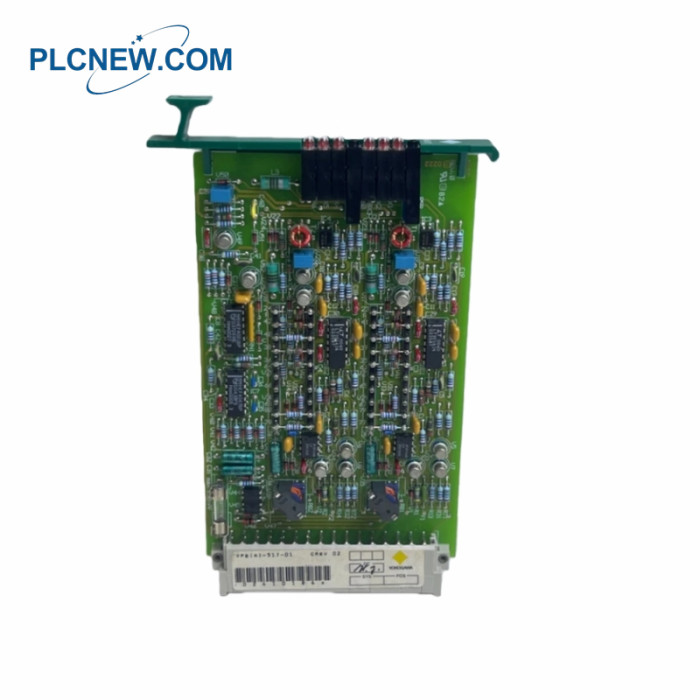

YOKOGAWA AI-517-01 Analog Input Module

YOKOGAWA AI-517-01 Analog Input Module

Details of the module

Temperature (working)：-20 to +70 °C
Temperature (storage)：-25 to +85 °C
Relative Humidity：Max. 95%, non-condensing
EMC：EN50081-2 Emission, EN50082-2 Immunity
DIN VDE 0839/10-S2
Shock：10 g ; 16 ms
Vibration：10–55 Hz ; ±0.35 mm
Current Input：0–20 mA, 55 Ω ±10% (60 mA max., fuse protected)
Voltage Input：0–10 V, 1 MΩ (max. 30 V)
Voltage Output：0–10 V ±0.5%, max. 5 mA
Open Line Level：2.8 mA ±0.4 mA; below open line level: red LED
Reference Output：11.25 V ±1%, 5 mA max.
Set Point Input：10 kΩ (30 V max.), adjustable by potentiometer
Set Point Limiter：Optional
Trip Indication：Above set point: red LED
Hysteresis：1% (full scale, trip & open line)
Stability Error：<0.2% (full temp. range)
Clock Input：Clock pulses from MC-573, level 0/11 V
Field Supply：24 V DC ±10%
Current Consumption：35–50 mA (passive) / 40–100 mA (active)

The YOKOGAWA AI-517-01 Analog Input Module is a dual‑channel analog input and trip amplifier module designed

for use in industrial distributed control systems (DCS) and platforms. It accepts both current and voltage signals

from field transmitters and sensors, converting them into internal logic signals for monitoring, control, and trip

decision operations. The AI-517-01 module includes open line detection, set point comparison, transmitter supply,

and status indication, allowing it to reliably interface with process instrumentation and protect system integrity.

Frequently asked questions：

Q1: What type of module is the Yokogawa AI-517-01?
A1: It is an analog input module designed for industrial control and monitoring systems to acquire current and

voltage signals from field devices.
Q2: What vibration resistance does the AI-517-01 module support?
A2: The module is designed to withstand vibration levels of 10–55 Hz with ±0.35 mm amplitude.
Q3: What are the AI-517-01 specifications for current input?
A3: The current input range is 0–20 mA with 55 Ω ±10% input resistance, and it supports up to 60 mA maximum

(fuse protected).

Product Applications
Heavy Industry and Energy: Equipment monitoring systems for industries such as power, steel, and mining. For

example, in the intelligent transformation of coal mines, similar industrial-grade modules are often used for the

automatic control of comprehensive mining faces.
Lithium Battery Production Line: In key processes such as coating in lithium battery manufacturing, these AI

(analog input) instruments or modules are used to precisely monitor process parameters (such as tension,

thickness, or temperature).
Metal Processing and Manufacturing: Integrated in large-scale metal cutting, forming machines, or printing

and coding equipment to ensure the high-speed and stable operation of the production line.
