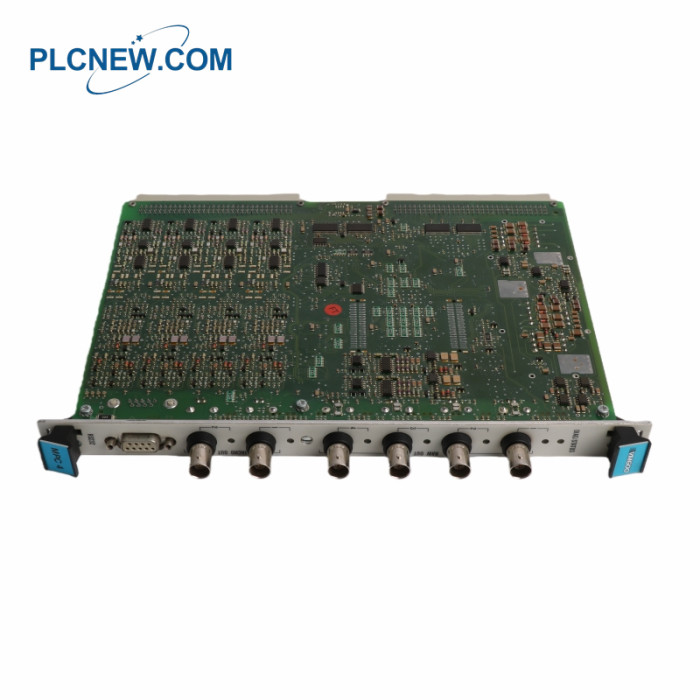

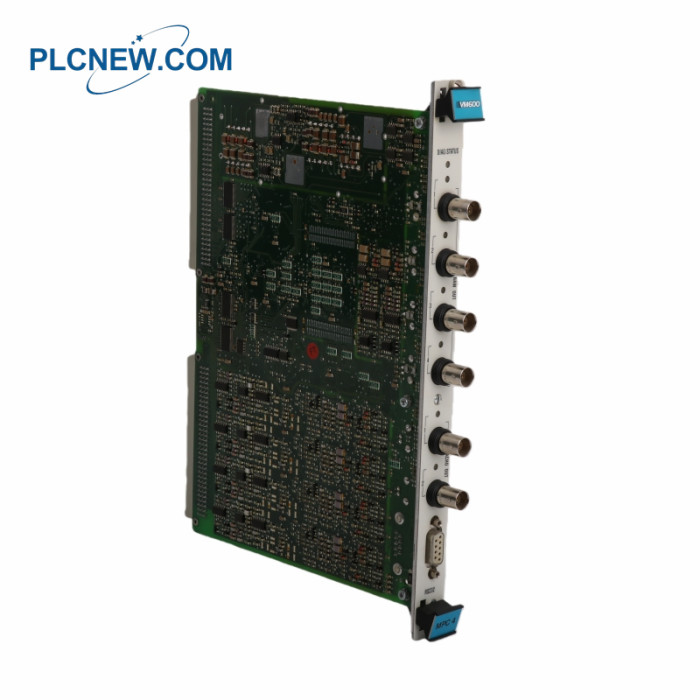

VIBRO METER VM600 MPC4 200-510-071-113 Signal Interface
Product Details
Model: VM600 MPC4 200-510-071-113
Number of inputs : 4 per MPC4 card
DC range : 0 to +20 V or 0 to −20 V
AC range : ±10 V max.
Common mode voltage range : −50 to +50 V
CMRR : >60 dB at 50 Hz
Crosstalk : −72 dB
Input impedance : 200 kΩ
Current input range
DC signals : 0 to 25 mA
AC signals : ±8 mA max.
Analog frequency range : DC to 60 kHz (−3 dB).
The MPC4 machinery protection card is thecentral element in the VM600 series machineryprotection system (MPS),
from Meggitt'sVibro-Meter® product line. This very versatile cardis capable of measuring and monitoring up tofour
dynamic signal inputs and up to two speedinputs simultaneously.
The dynamic signal inputs are fully programmableand can accept signals representingacceleration, velocity
and displacement(proximity), among others. On-board multi-channel processing allows measurement ofvarious
physical parameters, including relativeand absolute vibration, Smax, eccentricity, thrustposition, absolute and
differential housingexpansion,displacement and dynamic pressure.
