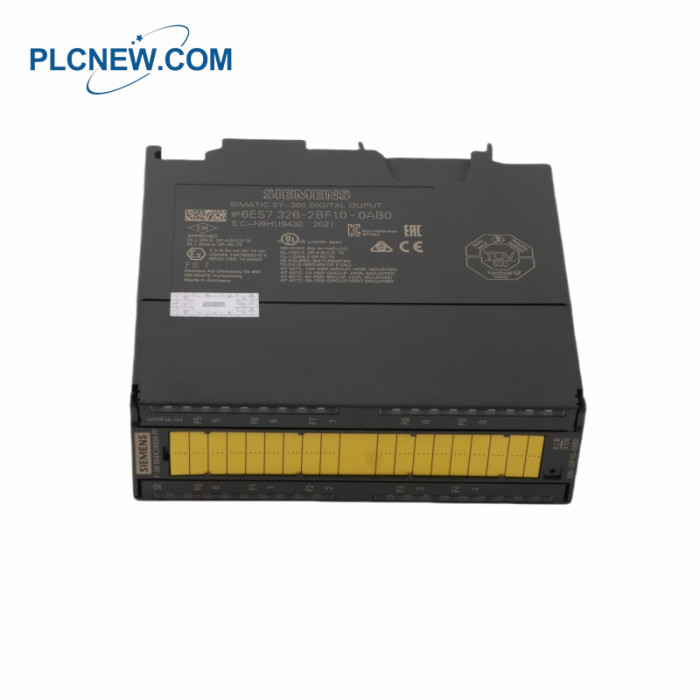

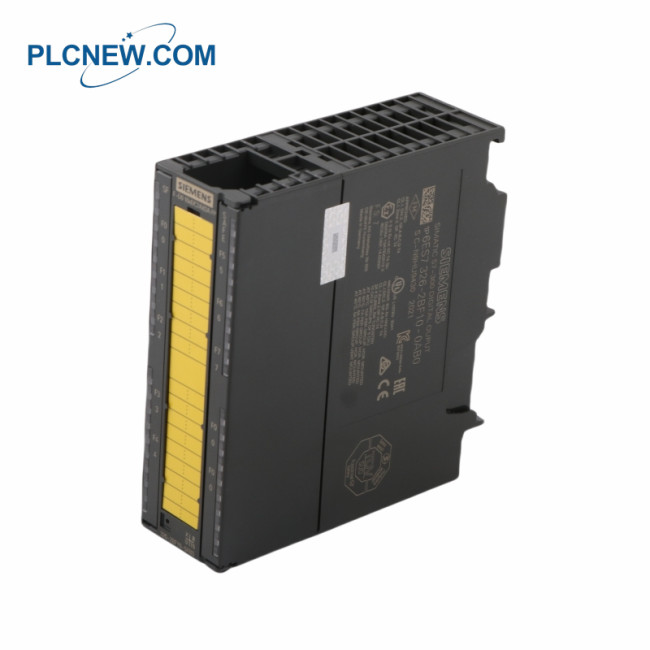

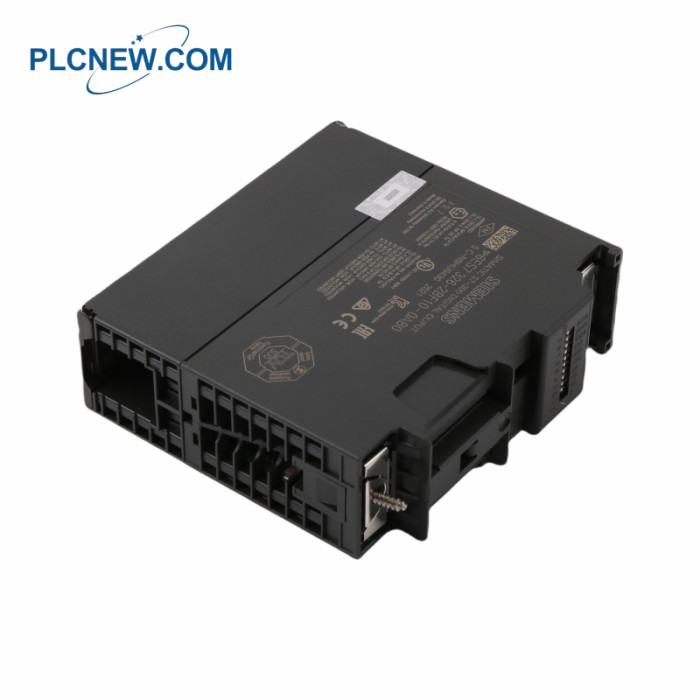

Siemens 6es7326-2bf10-0ab0 Digital output module

Siemens 6es7326-2bf10-0ab0 Digital output module

Siemens 6es7326-2bf10-0ab0 Specification

Supply voltage
Rated value (DC) 24 V; 1L+
Reverse polarity protection Yes
Load voltage L+
Rated value (DC) 24 V; 2L+, 3L+
Reverse polarity protection No
Input current
from supply voltage 1L+, max. 100 mA
from load voltage 2L+ (without load), max. 100 mA
from load voltage 3L+ (without load), max. 100 mA
from backplane bus 5 V DC, max. 100 mA
Power loss
Power loss, typ. 6 W
Digital outputs
Number of digital outputs 10
Short-circuit protection Yes
Switching capacity of the outputs
on lamp load, max. 5 W
Output voltage
for signal "1", min. L+ (-1.0 V)

Siemens 6es7326-2bf10-0ab0 Description

Integrate seamlessly into your existing SIMATIC S7-300 system for enhanced control over your industrial operations.
Featuring an extended temperature range, this module is designed for demanding industrial environments.
With 16 digital outputs, it offers flexibility and scalability to meet diverse needs.
Built-in diagnostic functions ensure reliability by monitoring and reporting potential issues like short-circuits and wire breaks.
Compact and robust design ensures easy installation and long-lasting performance, minimizing downtime and maintenance requirements.
