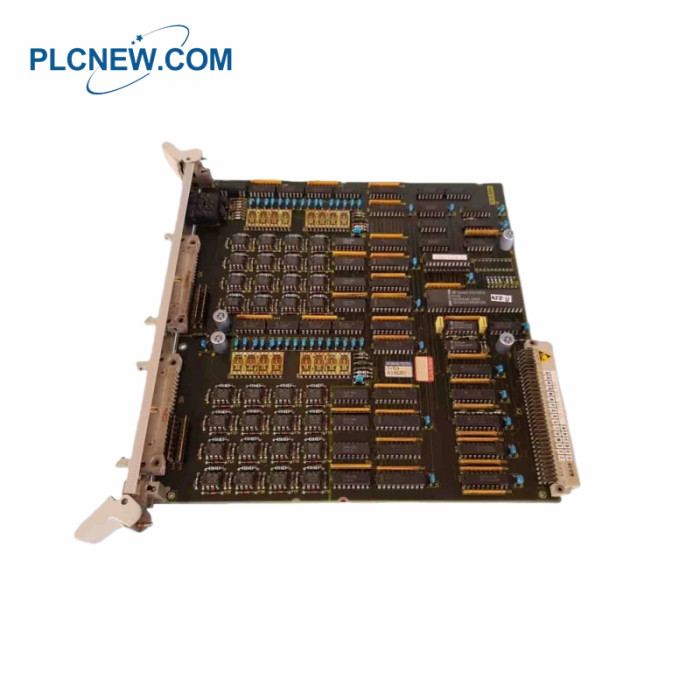

Siemens 6dd1641-0ac0 Binary Input/Output Module
Specifications
|
Model Number |
6dd1641-0ac0 |
|
Input Voltage (1 signal) |
+24 V rated; +13 V ~ +33 V |
|
Input Voltage (0 signal) |
-1 V ~ +6 V or open-circuit binary inputs |
|
Input Current (1 signal) |
5 mA typical |
|
Delay Time |
200 µs |
|
Rated Supply Voltage |
+24 V DC |
|
Permissible Voltage Range |
+20 ~ +30 V (including ripple) |
|
Residual Current (0 signal) |
20 µA |
The Siemens 6DD1641-0AC0 I/O Module is used in the SIMADYN D system for the input and output of binary
information. The two 40-way ribbon cable connectors X5 and X6 (with equal priority) on the frontplate are each
organized in groups of 4 x 10 pins, each ten pins being organized in eight bits of information and an external
power supply P24 and ground. The four units of a connector are divided into two units for input and two for output.
The S1 and S2 pushbuttons with integral LEDs also located on the frontplate are used for the visual indication of
output inhibit signals (LED function) and/or for the manual resetting of output inhibit signals (pushbutton function).
Pushbutton S1 is assigned to connector X5 and pushbutton S2 to connector X6.
Output inhibits occur at output bits that are overloaded. The pushbutton LEDs can only be used to determine which
overloaded output bit(s) is(are) assigned to which connector.
The inputs and outputs have a rated voltage of 24 V. The inputs load the source with 5 mA and the outputs supply 50 mA.
Product Applications
Steel Metallurgy: Applied in sections requiring extremely high response speed, such as mill control and tension
adjustment.
Electric Power Energy: High Voltage Direct Current Transmission (HVDC) or excitation system control for large
power generation units.
Heavy Machinery: Complex drive control for paper machines, large cranes, or mining machinery.
