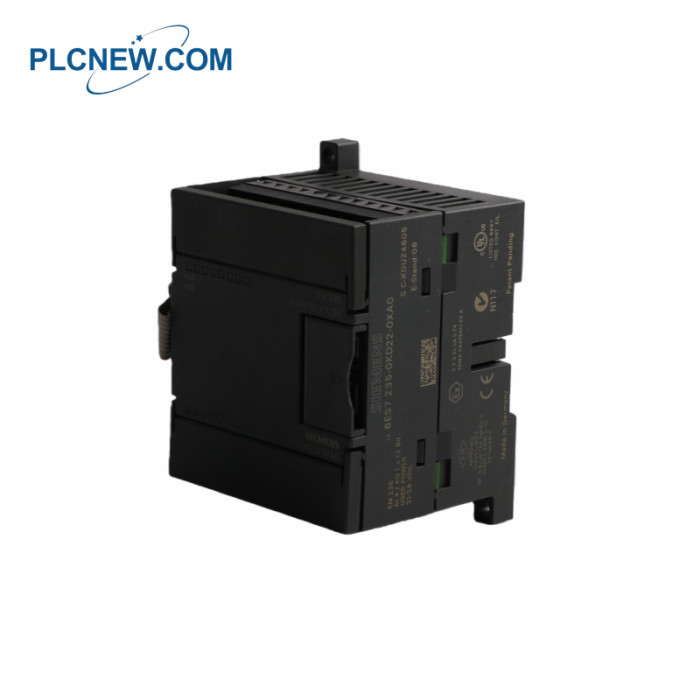

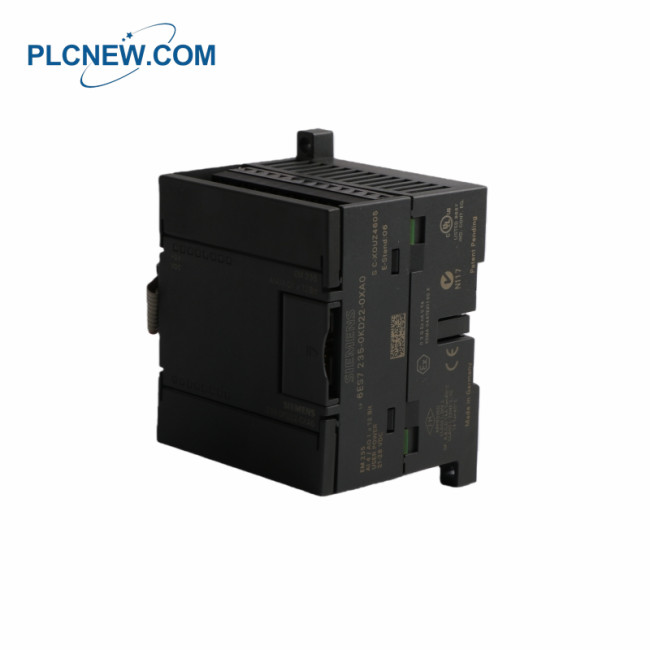

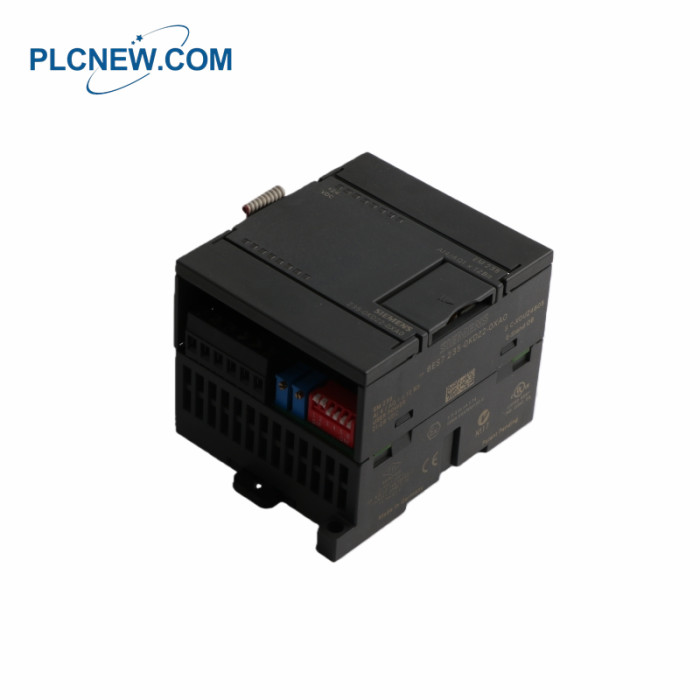

Siemens 6ES7235-0KD22-0XA0 Analog I/O Module

Siemens 6ES7235-0KD22-0XA0 Analog I/O Module

Details of the module

Manufacturer: Siemens
Product Line: SIMATIC
Part Number: 6ES7235-0KD22-0XA0
Product: Analog I/O Module
Analog Inputs: 4 (±10 V DC)
Analog Outputs: 1 (±10 V DC)
Resolution: 12-bit converter
Compatibility: Only for S7-22X CPU
Power Supply: 24 V DC
Operating Temperature: 0°C to 55°C
Mounting Style: DIN Rail
Protection Rating: IP20
Height: 71.2 mm
Length: 80 mm
Width: 62 mm

Siemens' part number 6ES7235-0KD22-0XA0 is an analog I/O module designed primarily for use with the S7-22X CPU.

This module features four analog inputs capable of handling signals within the range of ±10 V DC and has one

corresponding analog output also rated for ±10 V DC. Its conversion resolution is set at 12 bits, ensuring accurate

signal processing.
Powering this module requires a supply of 24 V DC. It operates effectively in temperatures ranging from 0°C

to 55°C, establishing versatility for various industrial environments. The module is also designed for a simple

mounting process on DIN rails, accommodating standard installation practices.

Frequently asked questions：

Q1: What is the Siemens 6ES7235-0KD22-0XA0 used for?
A: The 6ES7235-0KD22-0XA0 is an analog I/O module used for precise signal acquisition and

control in Siemens S7-200 PLC systems.
Q2: How many analog inputs and outputs does the 6ES7235-0KD22-0XA0 support?
A: It supports 4 analog inputs and 1 analog output, all with a range of ±10 V DC.
Q3: What is the resolution of the Siemens 6ES7235-0KD22-0XA0?
A: The module features a 12-bit analog-to-digital converter for accurate signal conversion.
Q4: Is the Siemens 6ES7235-0KD22-0XA0 suitable for industrial environments?
A: Yes, the 6ES7235-0KD22-0XA0 is industrial-grade, providing reliable performance in harsh conditions.
