Product Introduction

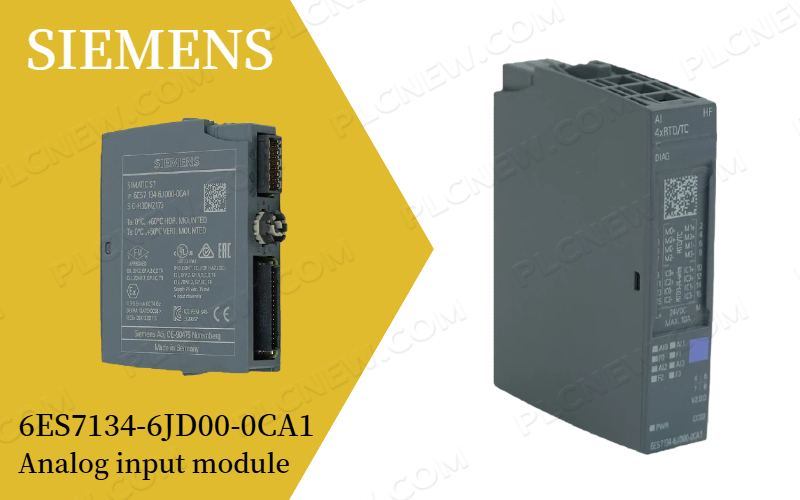

The SIEMENS 6ES7134-6JD00-0CA1 analog input module belongs to the SIMATIC ET 200SP series high-performance input module and is specially designed for high-precision temperature measurement and process control applications. This module, with its compact structural design, compatibility with multiple sensors and outstanding signal processing capabilities, provides reliable and flexible temperature data acquisition solutions for industrial automation systems.
Product Overview
The Siemens 6ES7134-6JD00-0CA1 module offers 4 analog input channels, which can be configured as RTD (thermal resistance) or thermocouple (TC) signal inputs and supports 2, 3, and 4-wire connection methods. The module adopts 16-bit high-resolution A/D conversion technology, which can achieve precise temperature measurement.
Its built-in channel-level diagnostic function and flexible configuration options make it highly stable and maintainable in process automation and industrial control.
Technical parameters
Product Model: 6ES7134-6JD00-0CA1 (AI 4xRTD/TC 2-/3-/4-wire HF)
Module type: High-performance Analog Input Module (High Feature)
Number of channels: 4 analog inputs
Input types: RTD (Pt100, Pt1000, Ni100, Ni1000, etc.) and various thermocouples
Wiring method: 2, 3, 4-wire system (RTD)
Resolution: 16 bits
Accuracy: ±0.1% (typical value, depending on sensor type and range)
Input sampling time: approximately 250 ms per channel (configurable)
Power supply voltage: 24 V DC (allowable range: 19.2-28.8 V DC)
Current consumption: approximately 35 mA
Power consumption: Approximately 0.75W
Isolation voltage: 707 V DC between the channel and the backplane
Firmware version: V2.1 (Supports firmware upgrade)
I&M data: Supports I&M0 to I&M3
Installation method: Compatible with ET 200SP basic units (A0, A1 types)
Configuration software: TIA Portal/STEP 7
Operating temperature: 0°C to +60°C
Overall dimensions: 1.4 × 5.8 × 7.2 cm
Weight: Approximately 0.05 kg
Main features and advantages
Multi-sensor compatibility - Supports both thermal resistance and thermocouple inputs simultaneously, meeting various industrial temperature measurement requirements.
High-precision measurement performance - 16-bit resolution ensures stable and accurate measurement data, making it suitable for high-demand process control scenarios.
Channel-level diagnostic function - built-in LED indication and fault diagnosis, facilitating quick problem location and enhancing maintenance efficiency.
The firmware is upgradable - it supports online updates, facilitating functional expansion and system optimization.
Compact modular design - The ET 200SP series features a miniaturized structure, saving cabinet space and making wiring easier.
Strong electrical isolation - After strict insulation testing, it ensures long-term stable operation in complex industrial environments.
Typical applications
The SIEMENS 6ES7134-6JD00-0CA1 module is widely used in various industrial and process automation scenarios, including:
Temperature process control in industries such as chemical engineering, metallurgy, and energy;
Precise temperature monitoring for food and pharmaceutical production lines;
Temperature detection and protection system for mechanical equipment
Distributed I/O system and on-site data acquisition unit.
Summary
The SIEMENS 6ES7134-6JD00-0CA1 analog input module is renowned for its high precision, flexibility and reliability, making it an ideal choice for industrial temperature acquisition and process control. It not only meets the measurement requirements of complex applications, but also, with the advantages of the ET 200SP modular platform, provides more efficient and economical solutions for automation systems.
