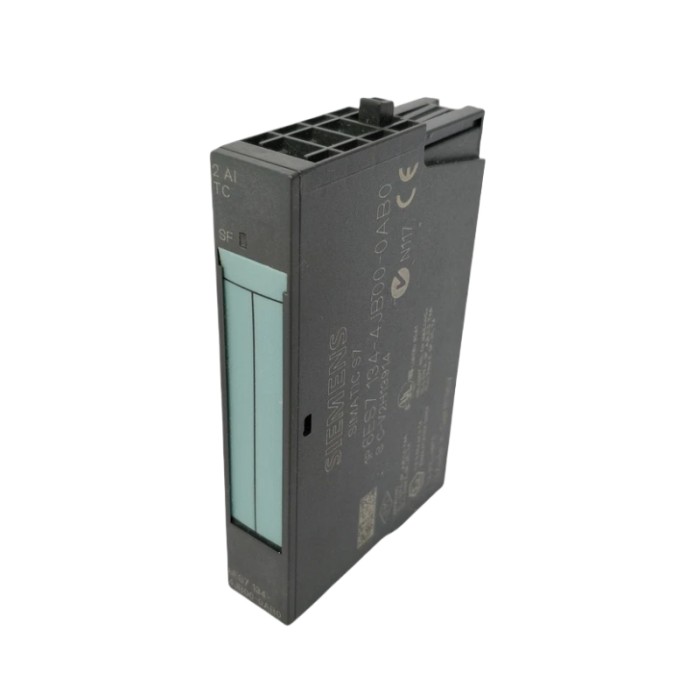

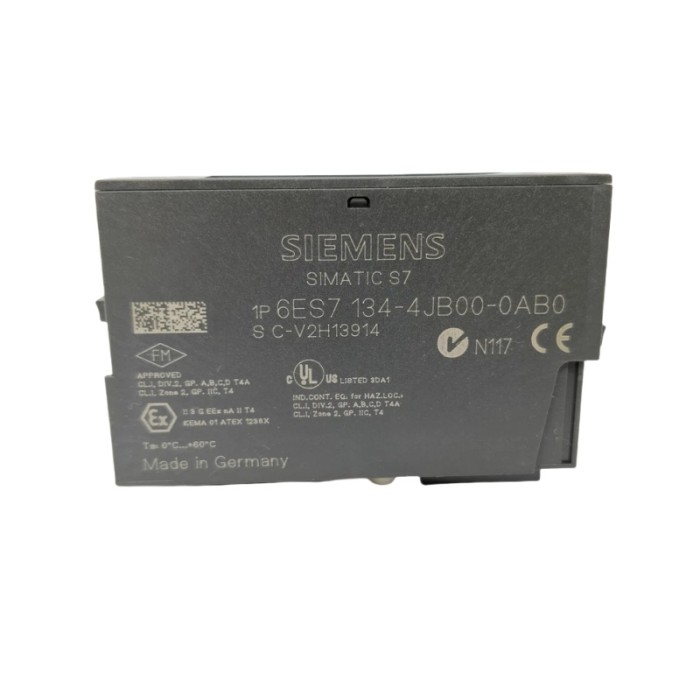

Siemens 6ES7134-4JB00-0AB0 Electronics Module
Siemens 6ES7134-4JB00-0AB0 Specification
Type:Electronics Module
Model Number:6ES7134-4JB00-0AB0
Linearity error (relative to input range), (+/-): 0.01 %
Temperature error (relative to input range), (+/-): 0.005 %/K
Crosstalk between the inputs, min.: -50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-): 0.05 %
Reverse polarity protection: Yes
Input current from load voltage L+ (without load), max.: 30 mA
Input current from backplane bus 3.3 V DC, max.: 10 mA
Power loss (Typical): 0.6 W
Address area - Address space per module (Max.): 4 byte
Siemens 6ES7134-4JB00-0AB0 Description
The Siemens 6ES7134-4JB00-0AB0 is a high-precision electronics module from the SIMATIC ET 200S series, designed
for processing analog input signals in industrial systems. It features two analog input channels with exceptional accuracy,
low linearity error, and robust protection against voltage overloads. Its compact size, low power consumption,
and integration with the ET 200S distributed I/O system make it ideal for monitoring and controlling process variables
such as temperature, pressure, and flow. This module is engineered for long-term stability and reliable operation in
demanding industrial environments.
