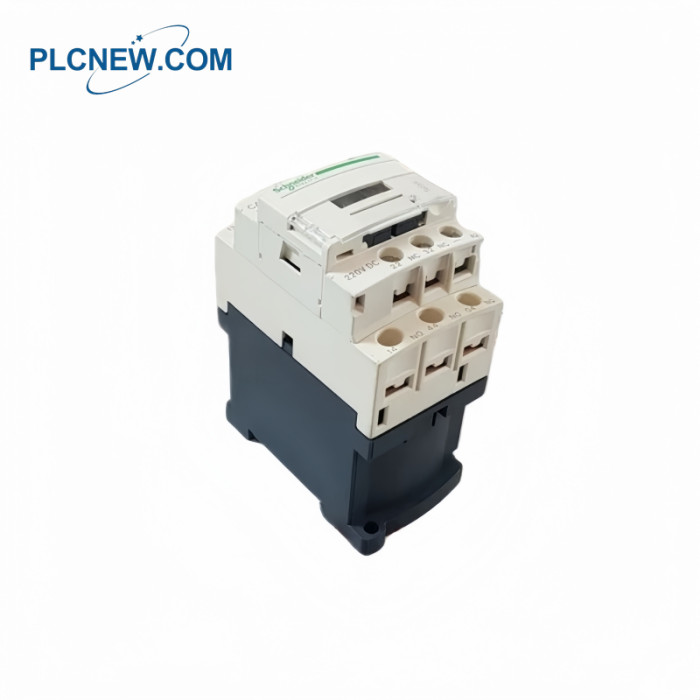

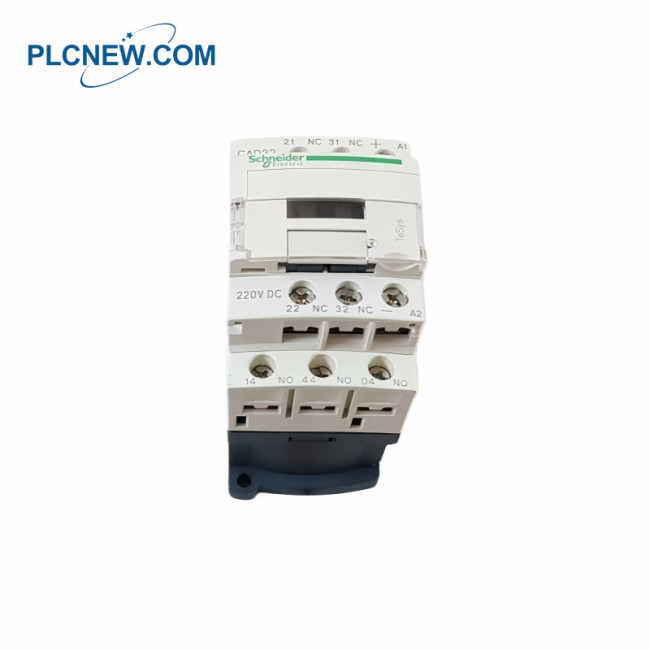

Schneider CAD32MD Control Relay
Details of the module
Product Type: Control Relay
Pole Contact Composition: 3 NO + 2 NC
Rated Operational Voltage ([Ue]): ≤ 690 V AC, 25–400 Hz
Control Circuit Type: DC standard
Control Circuit Voltage ([Uc]): 220 V DC
Rated Impulse Withstand Voltage ([Uimp]): 6 kV (IEC 60947)
Conventional Free Air Thermal Current ([Ith]): 10 A (at 60 °C)
Hold-in Power Consumption: 5.4 W at 20 °C
Minimum Switching Voltage: 17 V
Minimum Switching Current: 5 mA
Dimensions: 77 mm*45 mm*93 mm
Net Weight: 0.58 kg
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides
a 220V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by
screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures
high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi
standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Frequently asked questions：
1.What is the Schneider CAD32MD?
The Schneider CAD32MD is a Control Relay manufactured by Schneider Electric.
2.What is the control circuit voltage ([Uc]) of the CAD32MD?
The control circuit voltage is 220 V DC.
3.What is the rated impulse withstand voltage ([Uimp]) of the CAD32MD?
The rated impulse withstand voltage is 6 kV, conforming to IEC 60947 standards.
4.What is the conventional free air thermal current ([Ith]) of the CAD32MD?
The conventional free air thermal current is 10 A (at 60 °C).
