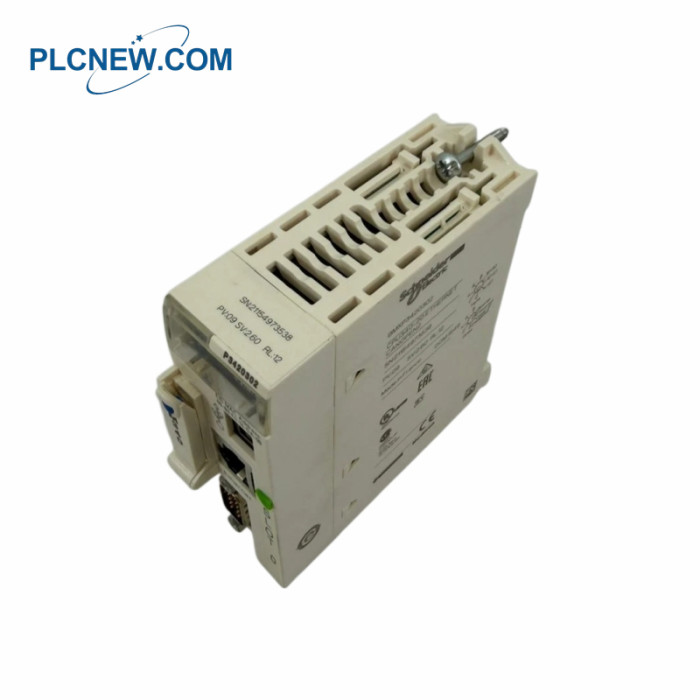

Schneider BMXP3420302 Processor Module
Specifications
Manufacturer
Schneider Electric
Part Number
BMXP3420302
Product
Processor Module
Weight
0.25 lbs (0.11 kg)
Number of Racks
4
Number of Slots
11
Number of Application Specific Channels
36
Communication Module Processor Capacity
2 Ethernet Communication Modules
Number of Server Devices
63 CANopen
Maximum Size of Object Areas
256 KB
System Overhead
0.13 ms
Current Consumption
135 mA at 24 V DC
Protection Class
IP20
Schneider Electric's BMXP3420302 processor module is engineered for industrial solutions. It can host up to
four racks with eleven slots for flexibility in configurations. This module supports a significant I/O capacity,
handling either 1024 I/Os in a multi-rack setup or 704 I/Os within a single rack. Adaptable in design, it includes
thirty-six application-specific channels, along with programmable loops for precise control.
In terms of motion control, the BMXP3420302 employs independent axis capabilities over the CANopen protocol
for streamlined performance. It also enables two Ethernet communication modules, which enhance the system's
connectivity. Managing up to 63 Server Devices via CANopen further emphasizes its networking capability. The
maximum object area supported is 256 kilobytes, resulting in efficient data handling. A low system overhead of
0.13 milliseconds ensures rapid processing and response times.
Product Applications
Textile machinery: for controlling the processes of spinning, weaving, and dyeing and finishing.
Packaging machinery: Integrated control for high-speed sorting, sealing, and labeling.
CNC machines and plastic machinery: Used for precision processing and plastic injection molding production lines.
Power system: Can be part of the DCS monitoring system, applied to the control of power generation units in
power plants, responsible for monitoring analog data such as temperature, pressure, and flow.
Water treatment and environmental protection: Used for scheduling in pumping stations and sewage treatment plants.
Application scenario advantages
Distributed IO application: The built-in CANopen interface supports 63 slave stations, suitable for distributed industrial
control networks.
High-speed communication: Built-in Ethernet TCP/IP, suitable for intelligent factories that need to interact with
enterprise management systems (MES/ERP).
High reliability requirements: Suitable for replacing traditional complex communication systems, performing exceptionally
well in production equipment that requires compact space and high stability.
