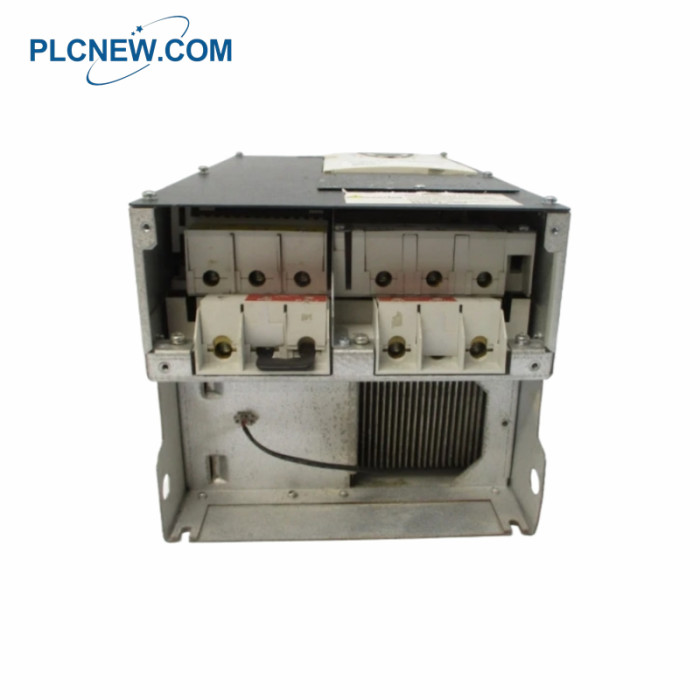

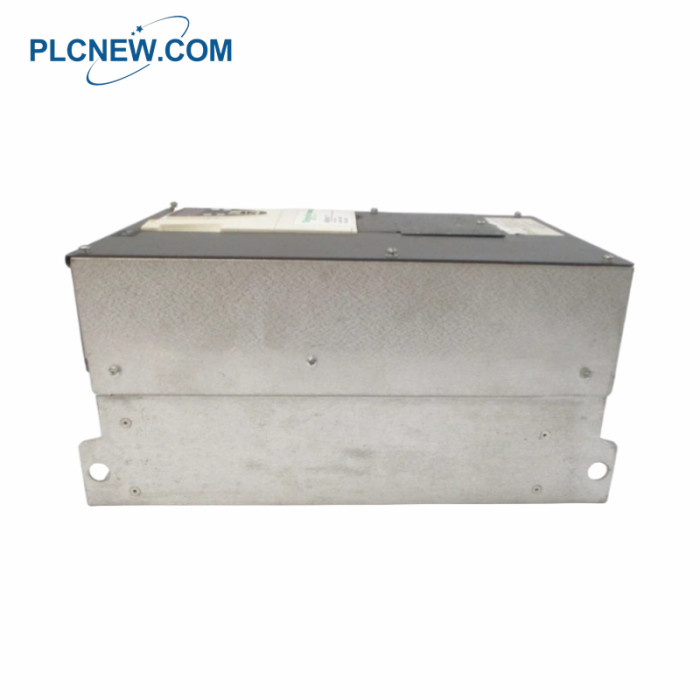

Schneider ATV71HD22N4 Variable Speed Drive
Product Overview
The Schneider ATV71HD22N4 Variable Speed Drive, part of the Altivar 71 series, is engineered for high-performance
motor control in demanding industrial applications. Equipped with an EMC filter and a user-friendly graphic terminal, it provides
precise speed regulation, smooth operation, and energy-efficient performance. Its robust design ensures reliability and durability
even in challenging environments, while advanced features enable seamless integration into complex systems.
The ATV71HD22N4 helps optimize process efficiency, reduce downtime, and enhance overall productivity, making it an ideal
choice for industries requiring dependable and flexible motor management.
Height: 420 mm
Width: 230 mm
Depth: 236 mm
Net weight: 21 kg
Motor power kW: 22 kW, 3 phases at 380...480 V
Motor power hp: 30 hp, 3 phases at 380...480 V
Maximum motor cable length: 100 m shielded cable / 200 m unshielded cable
Power supply voltage: 380...480 V -15...10 %
Network number of phases: 3 phases
Line current: 42 A for 480 V 3 phases / 50 A for 380 V 3 phases (22 kW / 30 hp)
Apparent power: 32.9 kVA at 380 V 3 phases (22 kW / 30 hp)
Prospective line Isc: 22 kA for 3 phases
Nominal output current: 40 A at 460 V / 48 A at 380 V (4 kHz, 3 phases, 22 kW / 30 hp)
Maximum transient current: 72 A for 60 s / 79.2 A for 2 s (3 phases, 22 kW / 30 hp)
Output frequency: 0.1…599 Hz
Nominal switching frequency: 4 kHz
Switching frequency: 1...16 kHz adjustable / 4...16 kHz with derating factor
Power supply voltage limits: 323…528 V
Power supply frequency: 50...60 Hz -5...5 %
Power supply frequency limits: 47.5...63 Hz
