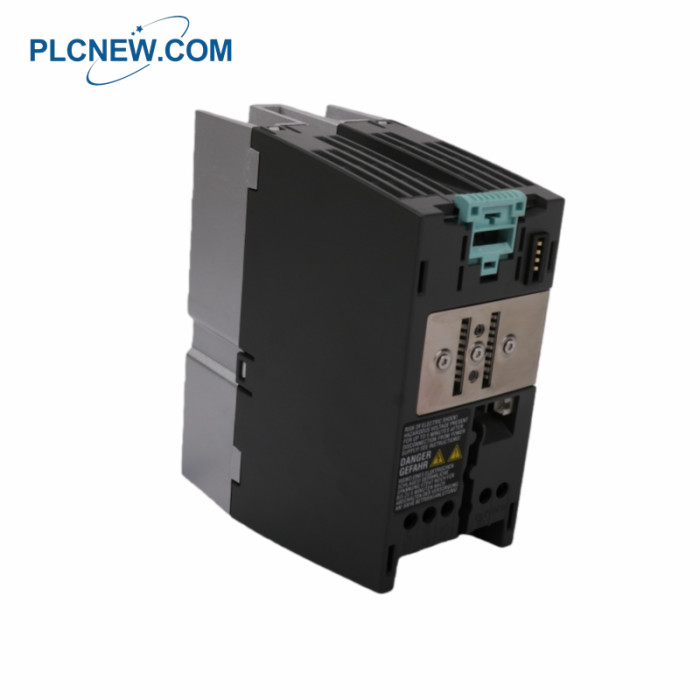

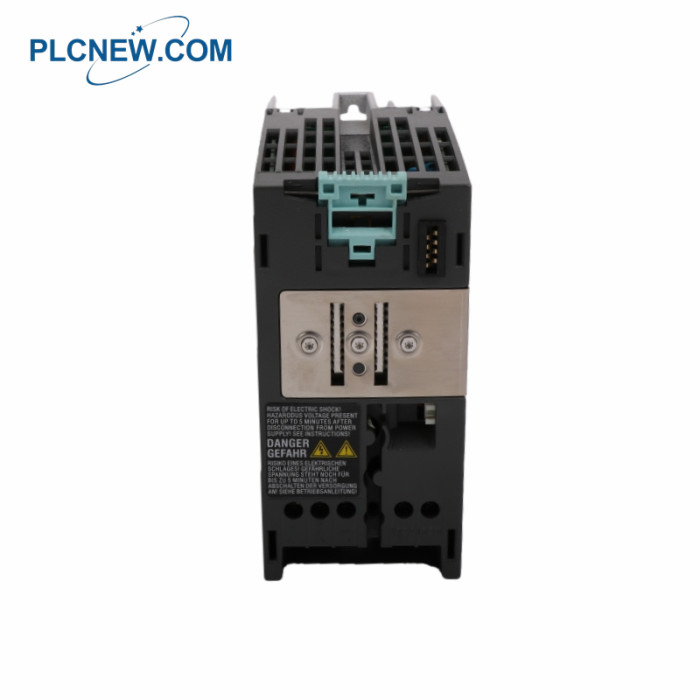

SIEMENS 6SL3224-0BE15-5UA0 Power Module

SIEMENS 6SL3224-0BE15-5UA0 Power Module

Reach Us

Phone/WhatsApp: +86-18965196563       Email: sales17@amikon.cn

Product Highlights

Input Phases: 3 AC
Input Voltage: 380...480  V ±10%
Input Frequency: 47...63  Hz
Input Rated Current with Line Reactor: 1.80 A
Input Rated Current without Line Reactor: 2.10 A
Output Phases: 3 AC
Output Rated Voltage: 400V IEC / 480V NEC
Rated Power (Low Overload - LO): 0.55 kW / 0.75 hp
Rated Power (High Overload - HO): 0.55 kW / 0.75 hp
Rated Output Current (LO): 1.70 A
Rated Output Current (HO): 1.70 A
Maximum Output Current: 3.40 A
Pulse Frequency: 4 kHz
Output Frequency for Vector Control: 0...200  Hz
Output Frequency for V/f Control: 0...550  Hz
Low Overload (LO) Capability: 1.1 x rated output current for 57 s / 1.5 x rated output current for 3 s (cycle time 300 s)
High Overload (HO) Capability: 1.5 x rated output current for 57 s / 2 x rated output current for 3 s (cycle time 300 s)
Power Factor (λ): 0.85
Displacement Factor (cos φ): 0.95
Efficiency (η): 0.97
Sound Pressure Level (at 1m): 45 dB
Power Loss: 0.10 kW
Integrated Filter Class: None
Cooling Air Requirement: 0.005 m³/s
Installation Altitude: 1,000 m
Ambient Temperature (Operation LO): 0... 40 °C
Ambient Temperature (Operation HO): 0... 50 °C
Ambient Temperature (Transport/Storage): -25... 55 °C
Maximum Motor Cable Length (Shielded): 50 m
Maximum Motor Cable Length (Unshielded): 100 m
Net Weight: 1.10 kg
Dimensions (Width x Height x Depth): 73 mm x 173 mm x 145 mm

Payment, Delivery & Support

Payment Term: T/T

Delivery:DHL/FEDEX/UPS/CHIRLINE/Aramex; Time: Shipped in 3 days after payment.

Warranty: 12 Month
