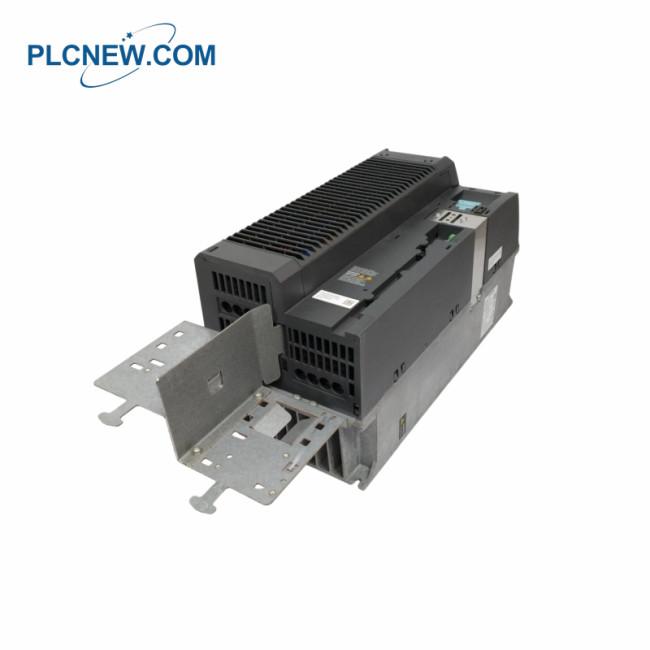

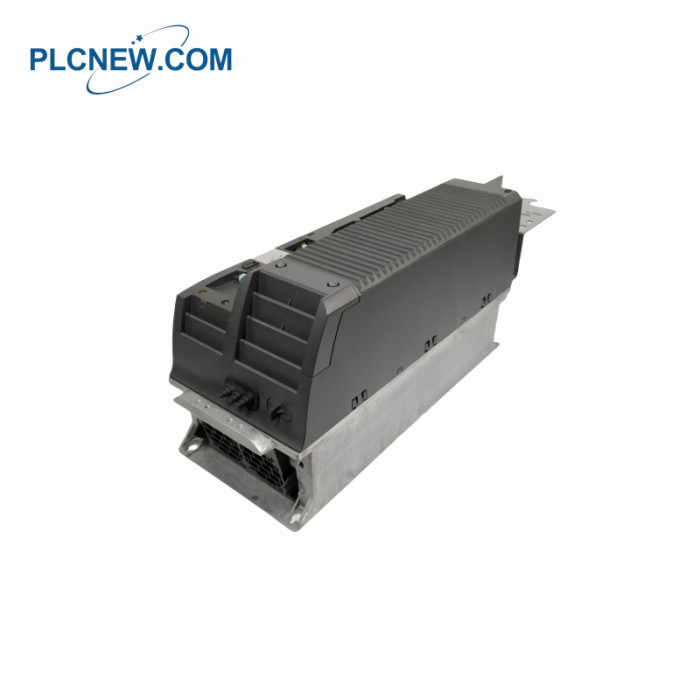

SIEMENS 6SL3210-1PE27-5AL0 Power Module
Specifications
|
Part Number |
6SL3210-1PE27-5AL0 |
|
Number of Phases |
3-phase AC |
|
Line Voltage |
380 ... 480 V ±10 % |
|
Line Frequency |
47 ... 63 Hz |
|
Rated Current (LO) |
70.00 A / 75.00 A |
|
Rated Current (HO) |
62.00 A / 60.00 A |
|
Rated Power (LO) |
37.00 kW |
|
Rated Power (HO) |
30.00 kW |
|
Max. Output Current |
120.00 A |
|
Pulse Frequency |
4 kHz |
|
Output Frequency (Vector Control) |
0 ... 200 Hz |
|
Output Frequency (V/f Control) |
0 ... 550 Hz |
|
Power Factor λ |
0.95 |
|
Offset Factor cos φ |
0.99 |
|
Efficiency η |
0.98 |
|
Sound Pressure Level (1 m distance) |
72 dB |
|
Power Loss |
1.02 kW |
|
Cooling Air Requirement |
0.055 m³/s (1.942 ft³/s) |
|
Installation Altitude |
1,000 m (3,280.84 ft) |
|
Operating Temperature (LO) |
-20 ... 40 °C (-4 ... 104 °F) |
|
Operating Temperature (HO) |
-20 ... 50 °C (-4 ... 122 °F) |
|
Transport Temperature |
-40 ... 70 °C (-40 ... 158 °F) |
|
Storage Temperature |
-40 ... 70 °C (-40 ... 158 °F) |
|
Max. Operating Humidity |
95 % RH, non-condensing |
Siemens offers the 6SL3210-1PE27-5AL0 power module as part of the SINAMICS G120 series. This component is
capable of handling a 3-phase AC input, specifically in line voltage ranges from 380 to 480 V. It accommodates a
frequency span of 47 to 63 Hz. The rated current specifications include 75 A for low overload (LO) conditions and 60 A
for high overload (HO) scenarios. For power capabilities, it delivers 37 kW under LO conditions and 30 kW under
HO conditions.
Cooling is achieved via an internal air system, which has a minimum airflow requirement of 0.055 m³/s for optimal
operation. The pulse frequency is rated at 4 kHz, which supports efficient performance. Connections are made on the
line side through screw-type terminals, and the module allows for conductor cross-section dimensions varying between
10.00 mm² and 35.00 mm². This versatility enables the module to fit various installation configurations while ensuring
robust operational performance.
Product Applications
Metallurgy and Steel Industry Applications: Rolling mills, elevators, coiling machines, mixers, belt conveyors, cooling
bed fans.
Petroleum, Natural Gas and Offshore Industry Applications: Oil pumps, injection pumps, drilling platform fans,
compressors, elevators.
Renewable Energy Applications: Wind turbine pitch control systems, solar panel tracking systems, pumping equipment.
General Machinery Manufacturing Applications: Packaging machinery, conveyor belts, large mixers, cutting machines,
lifting equipment.
Automobile Manufacturing and Textile Industry Applications: Automobile painting lines, conveyor lines, textile machines,
pump and pump group.
Water Treatment and Municipal Engineering Applications: Large fans, water pumps, compressors, sewage equipment
