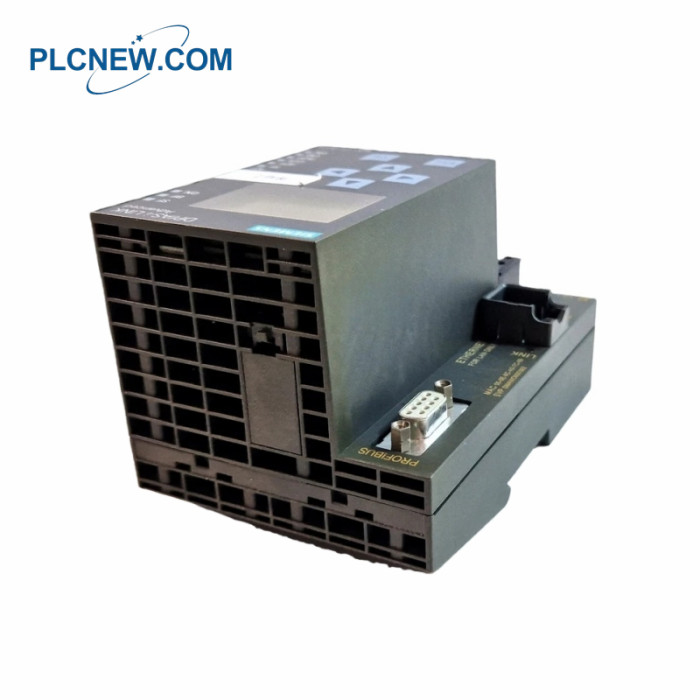

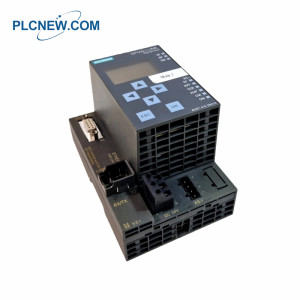

SIEMENS 6GK1415-2BA10 Advanced Module
►Product Parameters
Operating Temperature (Horizontal Mounting Rail): 0 … +60 °C
Transport Temperature: -30 … +70 °C
Storage Temperature: -30 … +70 °C
Supply Voltage (DC): 24 V
Consumed Current:
From AS-i profile conductors at 30 V: max. 250 mA
From AS-i Power24V at 24 V: max. 250 mA
Power Loss: 7.5 W
Rated Insulation Voltage: 500 V
AS-Interface Connection Type: Screw-type connection
Voltage Supply Type: via AS-i or 24 V DC
Separate Power Supply (24 V): Not required
Product Designation: PROFIBUS DP/AS-Interface Link
Product Type Designation: DP/AS-i LINK Advanced (Single Master)
Protection Class: IP20
The Siemens 6GK1415-2BA10 (DP/AS-Interface Link Advanced – single master) is a high-performance gateway module
that seamlessly links an AS-Interface (AS-i) network to a PROFIBUS DP system. It allows an AS-i network of sensors
and actuators to be accessed from a PROFIBUS DP master, providing both cyclic I/O integration and diagnostic access.
