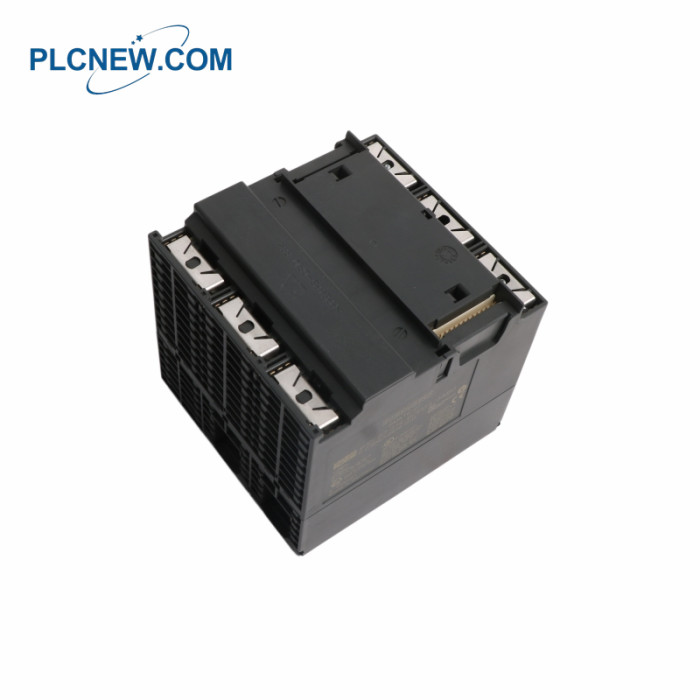

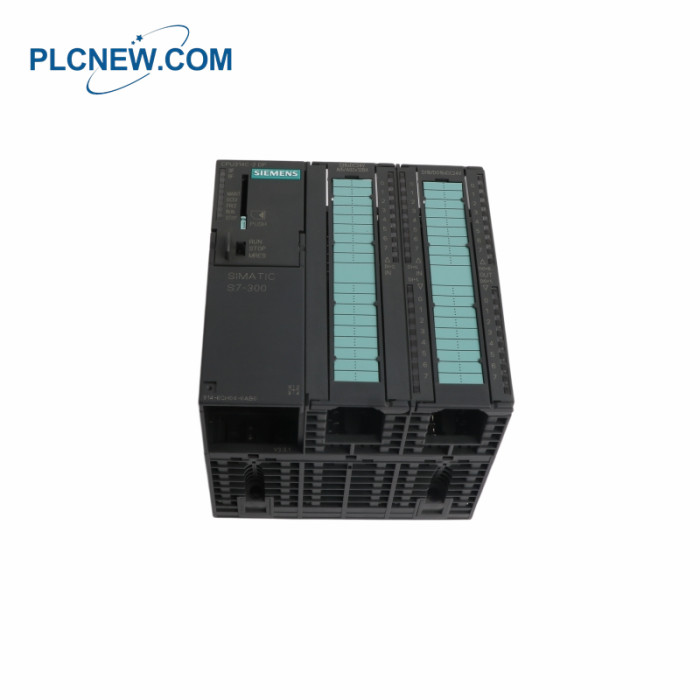

SIEMENS 6ES7314-6CH04-0AB0 CPU module

SIEMENS 6ES7314-6CH04-0AB0 CPU module

Details of the module

Part No.: 6ES7314-6CH04-0AB0
Manufacturer: SIEMENS
Product Type: CPU module
Rated Value (DC): 24 V
Permissible Range (DC):
Lower Limit: 19.2 V
Upper Limit: 28.8 V
Mains/Voltage Failure Stored Energy Time: 5 ms
Repeat Rate (min.): 1 s
Digital Inputs:From load voltage L+ (without load), max. 80 mA
Digital Outputs:From load voltage L+, max. 50 mA
Power Loss (typical): 13 W
Memory:Work Memory (integrated): 192 kB

The Siemens 6ES7314-6CH04-0AB0 is a compact and versatile CPU module from the SIMATIC S7-300 series, designed

for advanced tasks in industrial environments. This model features a built-in MPI and DP interface, enabling

flexible communication with various devices and networks. The 6ES7314-6CH04-0AB0 supports 24 digital inputs,

16 digital outputs, 4 analog inputs, 2 analog outputs, and one Pt100 temperature sensor input, making it suitable for

a wide range of control applications. Four high-speed counters (up to 60 kHz) allow for precise handling of fast signals.

The integrated 24 V DC power supply and a 192 KB work memory contribute to reliable performance in demanding

production processes. For installation, a micro memory card and two 40-pole front connectors are required. The

6ES7314-6CH04-0AB0 is compatible with multiple firmware versions, including V3.3.1, V3.3.7, V3.3.8, V3.3.10,

and V3.3.11.

Frequently asked questions：
1.What is the 6ES7314-6CH04-0AB0?
The 6ES7314-6CH04-0AB0 is a CPU module manufactured by Siemens.
2.What type of product is the 6ES7314-6CH04-0AB0?
The 6ES7314-6CH04-0AB0 is a CPU module used in industrial PLC systems.
3.What is the rated DC voltage of the 6ES7314-6CH04-0AB0?
The rated DC voltage of the 6ES7314-6CH04-0AB0 is 24 VDC.
4.What is the permissible DC voltage range for the 6ES7314-6CH04-0AB0?
The permissible DC voltage range is 19.2 V to 28.8 V.
