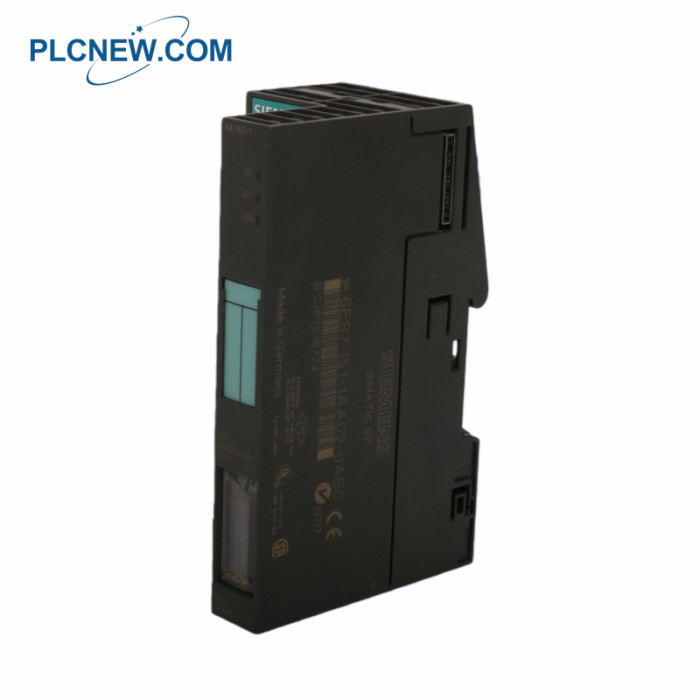

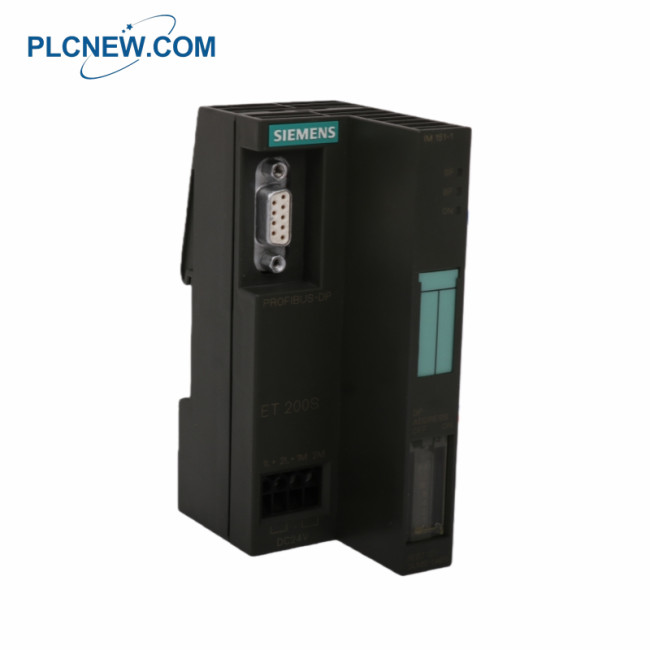

SIEMENS 6ES7151-1AA02-0AB0 Interface Module
Contact Frida
Phone/WhatsApp: +86-18965196563
Email: sales17@amikon.cn
Product Overview
This is the IM151-1 Standard interface module that connects the ET200S distributed I/O system to a PROFIBUS DP
network as a slave. It supports high-speed communication up to 12 Mbit/s and can manage a configuration of up to
63 I/O modules. The module provides diagnostic capabilities via status LEDs for bus faults, group errors,
and power supply. It features galvanic isolation between the PROFIBUS network and its internal electronics
for reliable operation in industrial environments.
Function: PROFIBUS DP Slave Interface Module for ET200S Distributed I/O System
PROFIBUS DP Transmission Rate: Up to 12 Mbit/s (supports 9.6 kbit/s to 12 Mbit/s)
Data Volume: 128 bytes for inputs and 128 bytes for outputs
Max. Number of Modules: Up to 63 power, electronic, or motor starter modules
Bus Connection: 9-pin sub-D socket (RS-485)
PROFIBUS DP Functions: SYNC, FREEZE, Direct Data Exchange (slave-to-slave communication)
Supply Voltage: 24 VDC (1L+)
Input Current (from 1L+), max.: 200 mA
Output Current (to backplane bus 5V), max.: 700 mA
Mains Buffering, min.: 20 ms
Diagnostic LEDs: Bus Fault BF (Red), Group Error SF (Red), 24V Supply ON (Green)
Permissible Potential Difference: 75 V DC / 60 V AC
Isolation Tested With: 500 V DC
Dimensions (W x H x D): 45 mm x 119.5 mm x 75 mm
Weight: approx. 150 g
