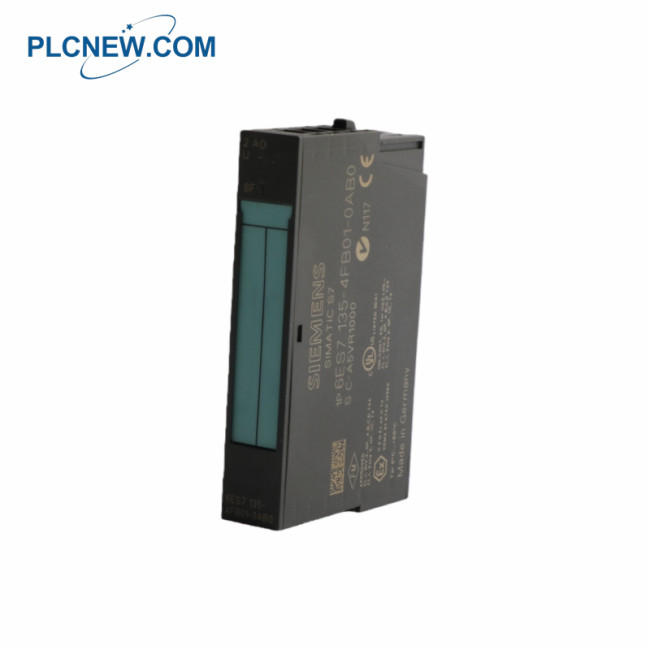

SIEMENS 6ES7135-4FB01-0AB0 ELECTRONIC MODULE
Contact Frida
Phone/WhatsApp: +86-18965196563
Email: sales17@amikon.cn
Product Overview
This is a 15mm wide, 2-channel analog output module for the SIMATIC ET 200S distributed I/O system.
It provides highly accurate voltage outputs in the ranges of ±10 V or 1-5 V with fast cycle and settling times.
The module features comprehensive diagnostics, including group error and short-circuit detection, indicated
by an SF LED. It is designed for reliable operation in industrial applications, offering potential
separation and configurable parameters for flexible integration.
Function: 2-channel Analog Output Module
Module Width: 15 mm
Supply Voltage: 24 VDC from power module; with reverse polarity protection
Power Consumption: Max. 130 mA from L+; max. 10 mA from backplane bus; max. power loss 2 W
Address Space: 4 bytes max. per module
Analog Outputs: 2; Voltage output
Output Ranges: -10 V to +10 V; 1 V to 5 V
Resolution: 13 bits + sign for ±10 V range; 12 bits for 1-5 V range
Cycle Time (all channels): Max. 1.5 ms
Settling Time: 0.1 ms (resistive load), 0.5 ms (capacitive/inductive load)
Load Impedance: Min. 1 kΩ; Max. capacitive load 1 µF
Accuracy: Basic error limit ±0.2% (at 25°C); Operational error limit ±0.4% (full temp. range)
Linearity Error: ±0.02%
Short-Circuit Protection: Yes; Short-circuit current max. 25 mA
Connection: 2-wire or 4-wire for voltage output
Cable Length: Shielded, max. 200 m
Diagnostics: Group error (SF LED), short-circuit; diagnostics readable
Parameters: Configurable output range, diagnostics enable/disable, behavior on CPU STOP
Isolation: Channels isolated from backplane bus and load voltage L+; Isolation test 500 V DC
Dimensions (W x H x D): 15 mm x 81 mm x 52 mm
Weight: approx. 40 g
