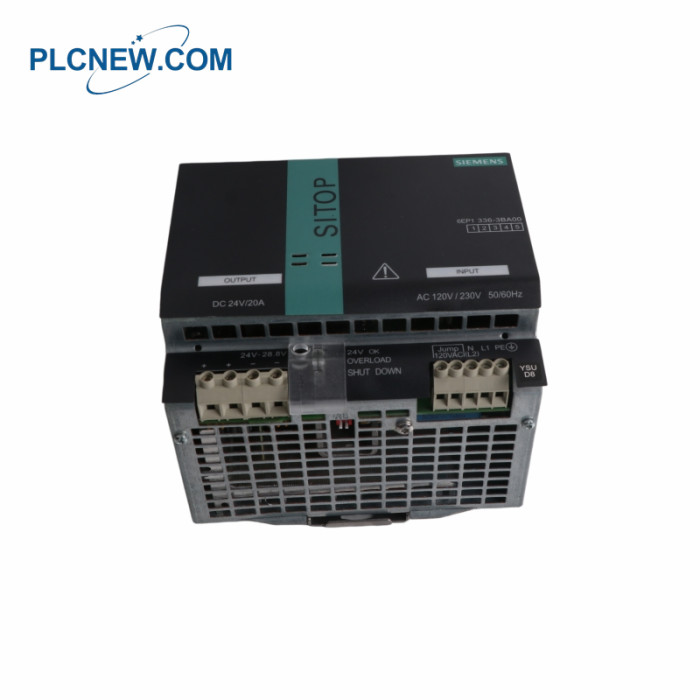

SIEMENS 6EP1336-3BA00 Power Supply Module

SIEMENS 6EP1336-3BA00 Power Supply Module

Details of the module

Manufacturer: Siemens
Product Line: SITOP
Part Number: 6EP1336-3BA00
Weight: 5.56 lbs (2.52 kg)
Description of Module: Power Supply Module
Input Voltage Phase: 1-phase
Input Voltages: 120 or 230 VAC
Operational Input Voltage Range: 85 to 132 V and 176 to 264 VAC
Wide-range Input: No
Rated Input Current: 7.7 A at 120 V and 3.5 A at 230 V
Output Type: Controlled, isolated DC Voltage
Rated Voltage: 24 VDC
Efficiency at Rated Voltage Output: 89%
Power Loss: 59 W

The Siemens 6EP1336-3BA00 power supply module is engineered to ensure dependable DC voltage output.

Designed for 1-phase operation, this module accommodates input voltages of either 120 or 230 VAC. It operates

within an input voltage range of 85 to 132 V and 176 to 264 V, providing operational flexibility, though it does not

feature broad-range input capability.
With a rated input current of 7.7 A when operating at 120 V and 3.5 A at 230 V, it efficiently converts AC power to a

controlled, isolated DC voltage output rated at 24 VDC. The module achieves an efficiency level of 89% under peak

load conditions, making it suitable for various applications that require efficient power management. However, it has a

power loss of 59 W during operation.

Frequently asked questions：

1.What is the input voltage range of the Siemens 6EP1336-3BA00 power supply?
The Siemens 6EP1336-3BA00 operates with an input voltage range of 120-230 V AC, making it compatible

with various global electrical systems.
2.What is the output voltage of the Siemens 6EP1336-3BA00?
The Siemens 6EP1336-3BA00's output voltage is 24 V DC, which is commonly used in industrial automation systems.
3.What is the maximum output current of this power supply?
The Siemens 6EP1336-3BA00 can deliver a maximum output current of 20 A.

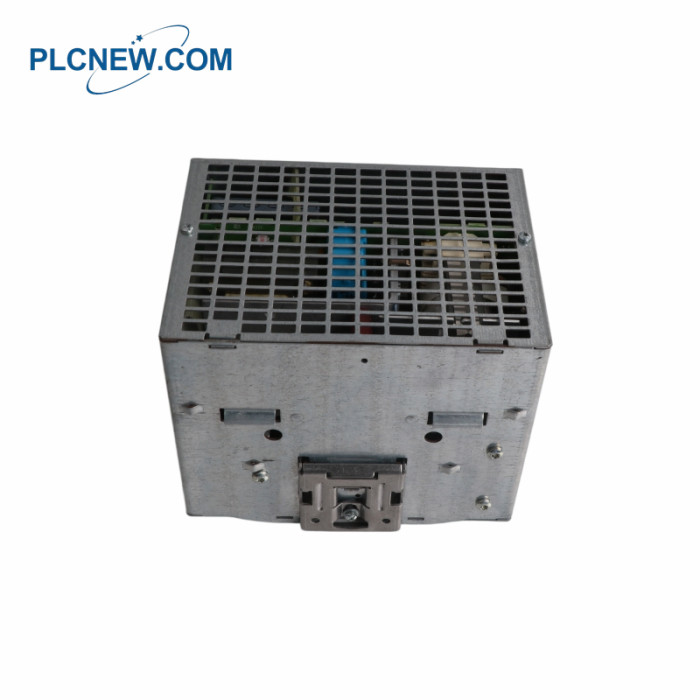

4.How is the Siemens 6EP1336-3BA00 power supply mounted?
This power supply is designed for DIN rail mounting, allowing for easy and secure installation in control cabinets.

Operational Features & Protection
Overload Capability: Features a "Power Boost" that provides up to three times the nominal current for short durations

(up to 60 A for 25 ms).
Short-Circuit Protection: Users can select between constant current (approx. 23 A) or latching shutdown in the event

of an overload.
Status Indicators: Three LEDs provide immediate visual diagnostics: Green (24 V OK), Yellow (Overload), and Red

(Latching shutdown).
Parallel Operation: Supports switchable parallel operation for up to two units to increase power.
