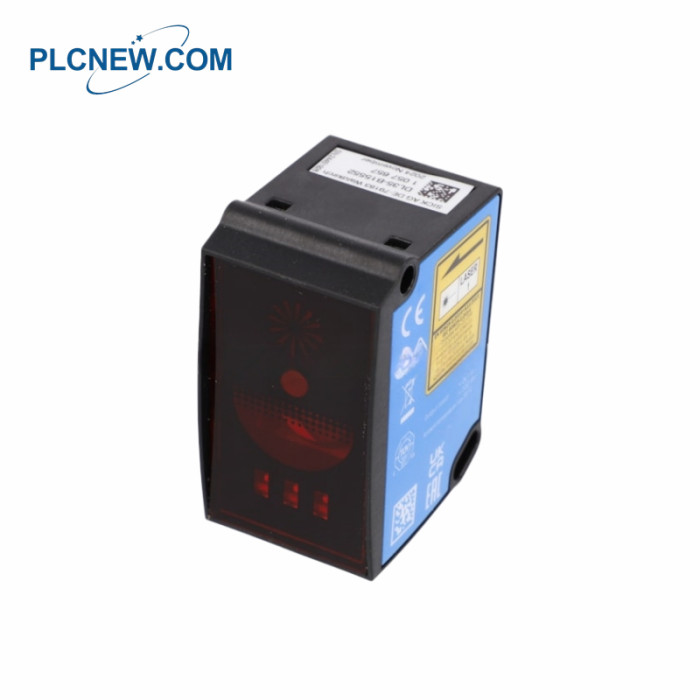

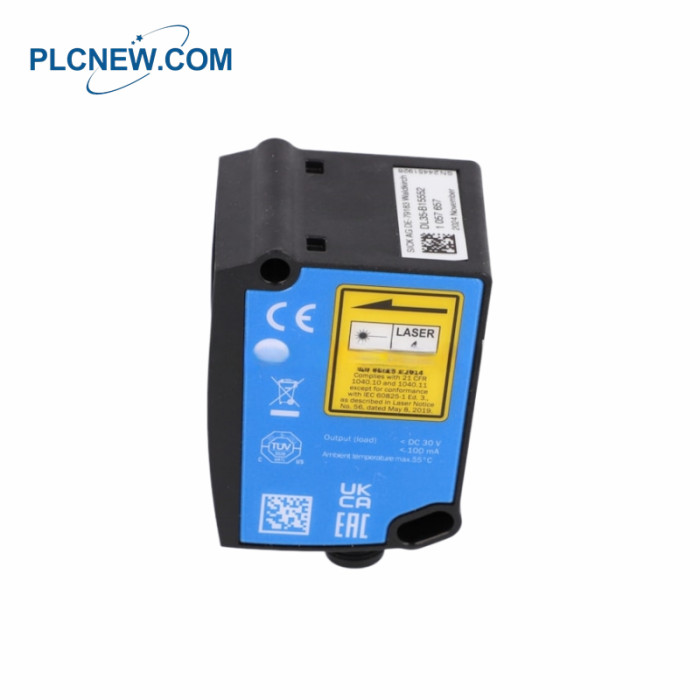

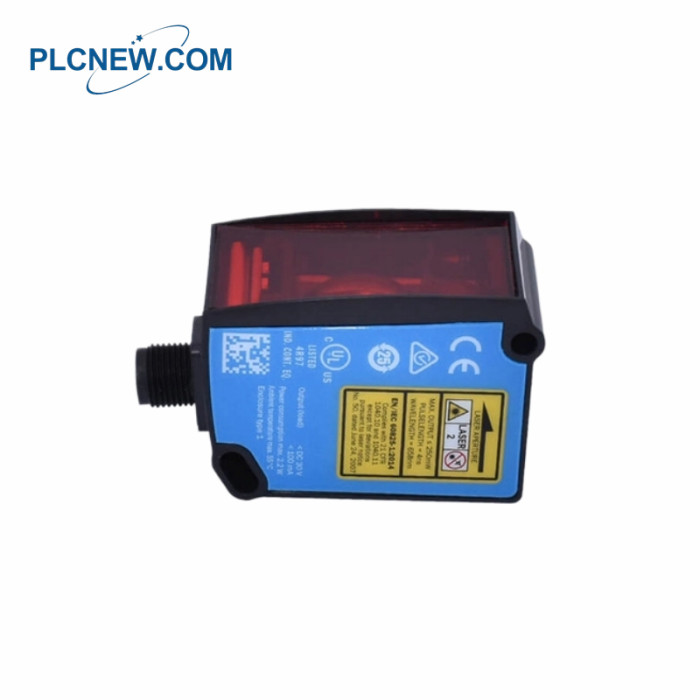

SICK DL35-B15552 Distance sensors
Specifications
|
Part Number |
DL35-B15552 |
|
Resolution |
100 µm |
|
Repeatability |
≥ 0.5 mm |
|
Measurement accuracy |
Typ. ± 15 mm |
|
Response time |
2.5 ms ~ 96.5 ms |
|
Optional: 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms |
|
|
Switching frequency |
333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz |
|
Power Supply |
12 to 30 V DC |
|
Power consumption |
≤ 1.7 W |
|
Ripple |
≤ 5 Vpp |
|
Initialization time |
≤ 500 ms |
|
Warm-up time |
≤ 20 min |
|
Operating temperature |
-30 °C ~ +55 °C (Supply voltage ≤ 24 V) |
|
Storage temperature |
-40 °C ~ +75 °C |
|
Max. relative humidity |
≤ 95% (non-condensing) |
|
Typical ambient light immunity |
40 klx |
DL35-B15552 is a high-performance laser distance sensor manufactured by SICK AG. It belongs to the Dx35 series of
Time-of-Flight (ToF) sensors and is designed for precise long-range distance measurement in industrial , material
handling, logistics, and machine control applications.
The sensor uses visible red Class 1 laser technology and supports measurement distances from 200 mm up to 35,000
mm when used with “diamond grade” reflective tape. It provides high-resolution measurement performance, fast
response times, IO-Link communication, configurable digital and analog outputs, and robust IP65/IP67 protection for
harsh industrial environments.
Product Applications
Logistics and Warehousing (AGV/RGV): Used in Guided Vehicles (AGVs) for high-precision collision avoidance,
accurate positioning of parking positions, and pallet detection.
Packaging and Food & Beverage: Used on packaging production lines for roll diameter detection, material level
monitoring, and detection of the presence or absence of target objects.
Machine Tools and Automotive Manufacturing: Monitoring the safe displacement of stamping equipment and robotic
arms, as well as measuring the thickness and distance of objects on conveyor belts.
