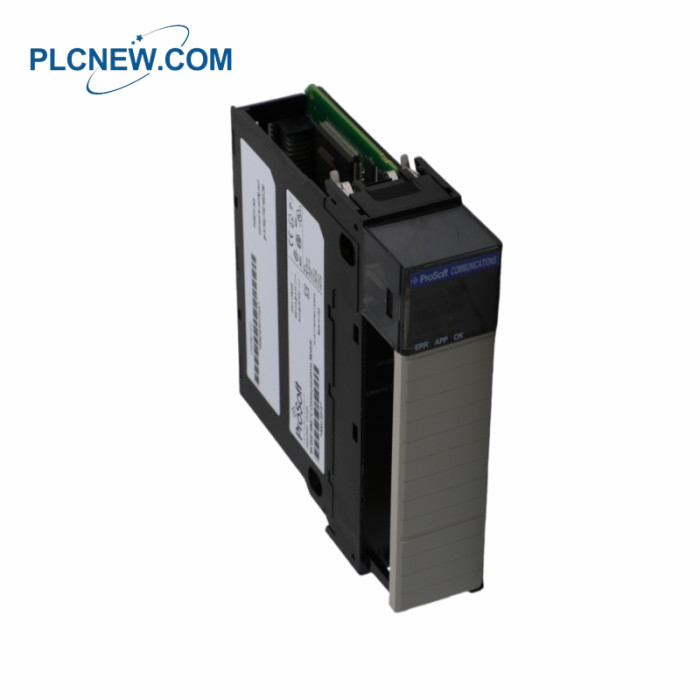

PROSOFT MVI56E-MNETC Network Interface Module

PROSOFT MVI56E-MNETC Network Interface Module

Product parameters

Part Number: MVI56E-MNETC
Weight: 3.00 lbs (1.36 kg)
Backplane Current Load:
800 mA @ 5 V DC
3 mA @ 24 V DC
Module Width: Single slot
Data Capacity: 10,000 words (16-bit registers)
MODBUS TCP Connections:
Up to 30 clients
Up to 20 servers
Communication Port: One RJ45 Ethernet interface
Data Rate: 10 / 100 Mbps
Operating Temperature: 32°F to 140°F (0°C to 60°C)
Storage Temperature: −40°F to 185°F (−40°C to 85°C)
Operating Shock: 30 g
Relative Humidity: 5% to 95% (non-condensing)

The MVI56E-MNETC is a ProSoft technology Modbus TCP/IP Multi Client/Server Enhanced Network Interface Module.

This module is specifically compatible with the platform.  This module takes up a single slot of a

chassis with an electrical consumption of 800mA of available 5 VDC and 3 mA of available 24 VDC power.
It requires version 16 or higher if used with Add-On instruction (AOI) and version 15 or lower is used with the provided

sample ladder program.  Additionally, it needs the ProSoft Configuration Builder (PCB) to enter configurations to the module.
The MVI56E-MNETC supports up to 30 MODBUS clients and 20 MODBUS servers.  This module is guaranteed to

exhibit increased response in multi-server architecture, minimizes effect to other servers in the event of sudden server

offline and supports Human Machine Interfaces (HMIs), Supervisory Control and Data Acquisition (SCADA) and

Distributed Control Systems (DCS) by providing access to data for integration.
