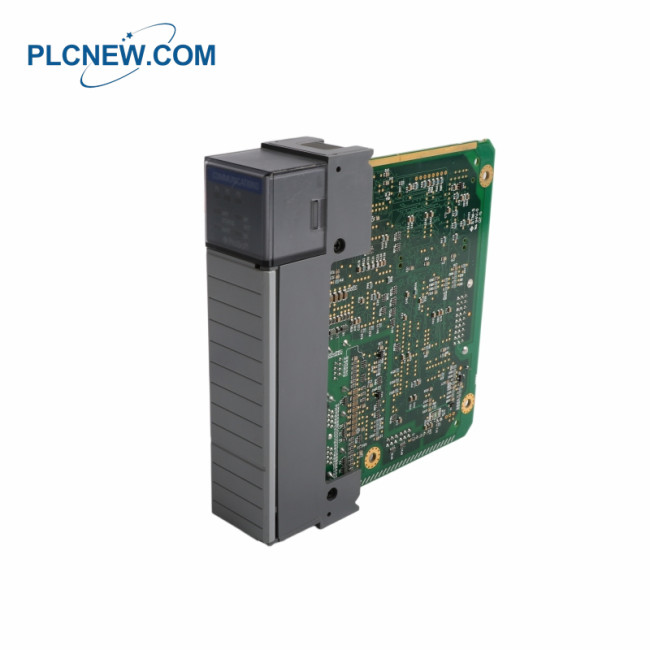

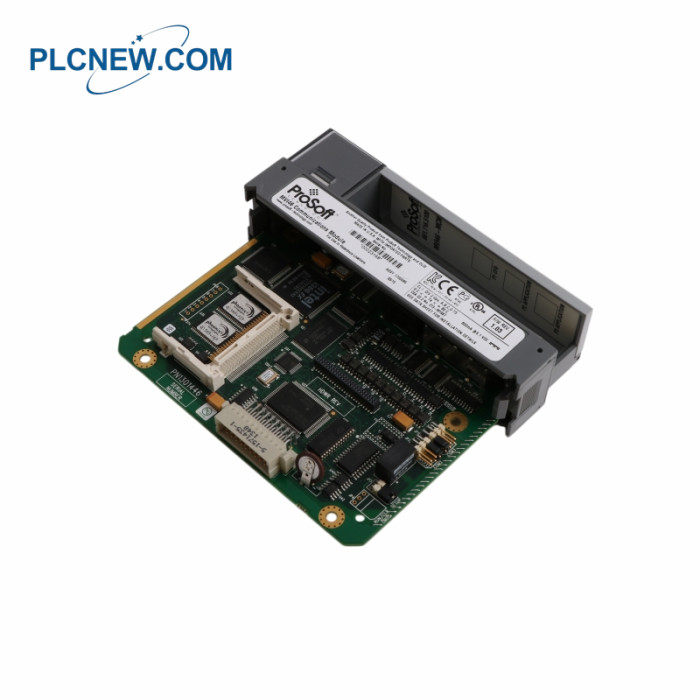

PROSOFT MVI46-MCM Communication Module
Specifications
Product Number
MVI46-MCM
Product Type
Communication Module
Backplane Current Load
800 mA @ 5.1 VDC
Operating Temperature
0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Operating Shock
30 g
Relative Humidity
5% ~ 95%
Slot
1
Data Transfer Type
Ladder Logic
Registers
Max 5000
Commands per Port
Max 100
The MV146-MCM is a single slot module that directly installs to a 1746 backplane. This module receives a valid
configuration when installed to the local rack or extension rack. It does not support installation to a remote I/O rack.
It comes with One (1) RJ45 debug and configuration port and supplied with a DB-9M cable and operates using
RS-232 standard only. It also has Two (2) RJ45 RS-232/422/485 Application combo ports. Additionally, the MV146-MCM
is equipped with Module status, Backplane transfer status, Application status, Serial activity and error status LED. The
MV146-MCM enables any compatible SLC 500 processor to easily interface with MODBUS enabled devices and
hosts instruments. It serves as an I/O module between the MODBUS network and the SLC 500 backplane. It
performs asynchronous data transfer and provides a 5000-Word register size when performing data exchanges between
the module and the processor over the MODBUS network. This communication adapter specifically supports Foreign
device data concentrator, Pipelines and offshore platforms, Food processing, Mining, Pulp and paper as well as
SCADA communication applications.
Product Applications
Oil and Gas: Used for pipeline monitoring, mining equipment, and data collection on offshore platforms.
Manufacturing and Processing: In the food processing and pulp and paper industries, for controlling various serial
equipment on production lines.
Power Systems: To achieve communication with intelligent electronic devices (IEDs) in power station monitoring.
Water Treatment: For connection of remote pumping stations or water quality monitoring stations.
